1977 Suzuki GT185 Piston - Crankshaft Diagram

← All diagrams

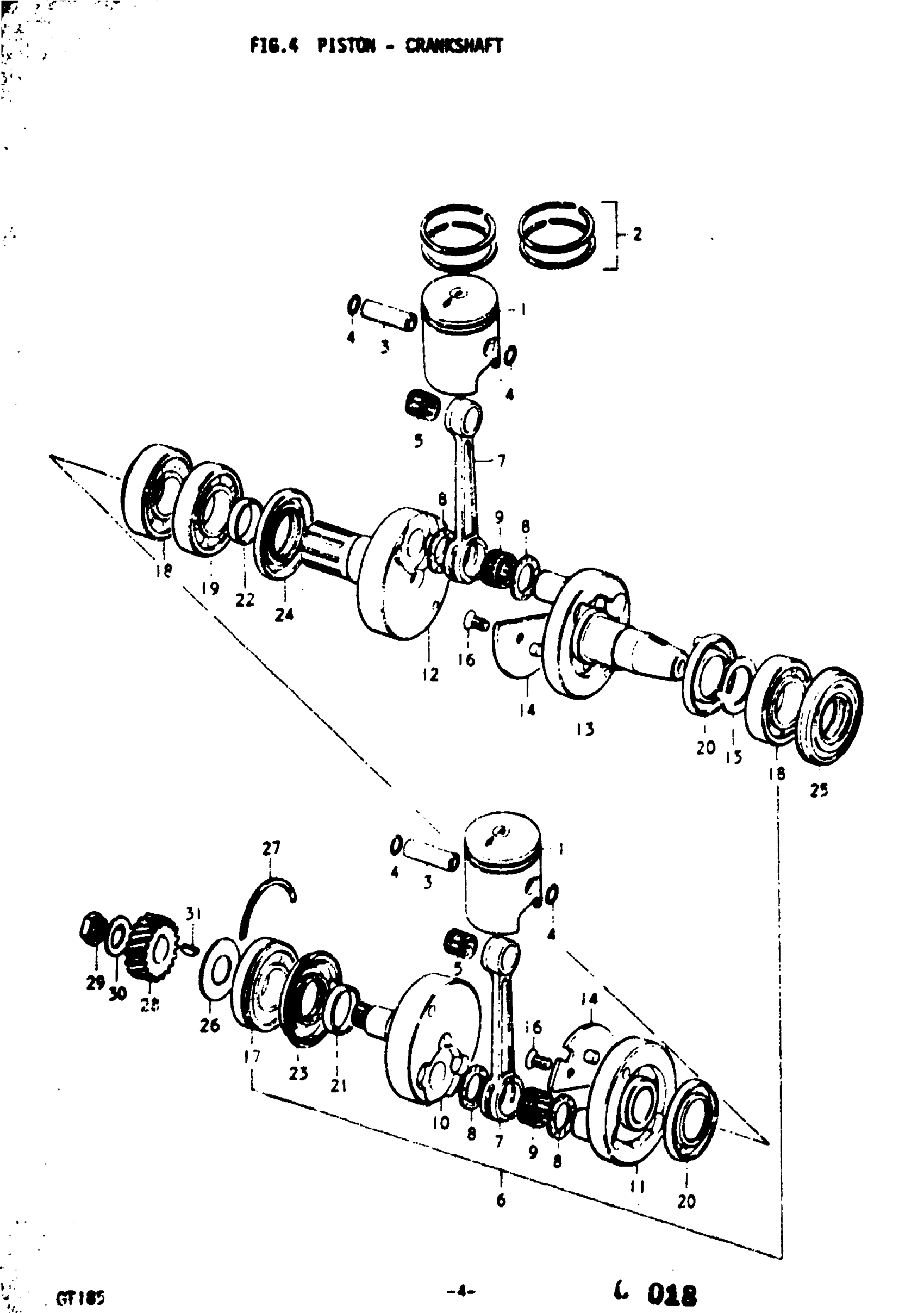

Find the part on the Piston - Crankshaft diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT185 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (49.0MM) | K,L,M; FROM 12110-25601 TO 12110-25603 This part replaces 12110-25602.

12110-35623

2
Out of stock

1

PISTON (49.0MM) | A,B This part replaces 12110-25603.

12110-35623

2
Out of stock

1

PISTON SET | K,L,M; OS:0.5 FROM 12110-25761 TO 12110-25763 This part replaces 12110-25762.

12100-35620-050

2
Out of stock

1

PISTON SET | A,B; OS:0.5 This part replaces 12110-25763.

12100-35620-050

2
Out of stock

1

NO DESCRIPTION AVAILABLE | K,L,M; OS:1.0 FROM 12110-25771 TO 12110-25773 This part replaces 12110-25772.

12110-35623-100

2
Out of stock

1

NO DESCRIPTION AVAILABLE | A,B; OS:1.0 This part replaces 12110-25773.

12110-35623-100

2
Out of stock

2

RING SET, PISTON | K,L,M,A,B; FROM 12140-35130

12140-25631

2
Out of stock

2

RING SET, PISTON | K,L,M,A,B; OS:0.5 FROM 12140-35770

12140-25631-050

2
Out of stock

2

RING SET, PISTON | K,L,M,A,B; OS:1.0 FROM 12140-28650

12140-28630

2
Out of stock

3

PIN, PISTON | K,L,M,A,B This part replaces 12151-25000.

12151-35400

2
Out of stock

4

SNAP RING | K,L,M,A,B

09381-12001

4
Out of stock

5

BEARING (12X16X16) | K,L,M,A,B This part replaces 09263-12003.

09263-12023

2
Out of stock

6

CRANKSHAFT ASSY | K,L,M

12200-36100

1
Out of stock

6

CRANKSHAFT ASSY | A,B; Includes Item(s) 7 - 24

12200-36102

1
Out of stock

7

ROD, CONNECTING | K,L,M,A,B

12161-36100

2
Out of stock

8

WASHER | K,L,M,A,B; 22x35x1

09160-22010

4
Out of stock

9

BEARING (22X28X14) | K,L,M,A,B This part replaces 09263-22009.

09263-22072-0B0

2
Out of stock

10

CRANKSHAFT, RH | K,L,M,A,B

12221-36100

1
Out of stock

11

WEB, CRANKSHAFT | K,L,M,A

12222-36100

1
Out of stock

11

WEB, CRANKSHAFT | B

12222-36101

1
Out of stock

12

CRANKSHAFT, MIDDLE | K,L,M,A,B

12231-36100

1
Out of stock

13

CRANKSHAFT, LH | K,L,M

12261-36100

1
Out of stock

13

CRANKSHAFT, LH | A This part replaces 12261-36990.

12261-36102

1
Out of stock

13

CRANKSHAFT, LH | B

12261-36102

1
Out of stock

14

BALANCER, CRANKSHAFT | K,L; TO 12270-36100

12271-36110

—
Out of stock

14

BALANCER, CRANKSHAFT | L,M,A

12270-36100

—
Out of stock

14

BALANCER, CRANKSHAFT | B

12271-36101

2
Out of stock

15

THRUST WASHER | K,L,M,A,B

08212-25401

1
Out of stock

16

SCREW | K,L,M,AB This part replaces 02122-06128.

02122-06127

4
Out of stock

17

BEARING | K,L,M,A,B

09262-25036

1
Out of stock

18

BEARING | K,L,M,A,B

09269-25011

2
Out of stock

19

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 09262-30025.

09262-30026

1
Out of stock

20

PLATE, OIL GUIDE | K,L,M,A,B

12511-36100

2
Out of stock

21

SPACER | K,L,M,A,B; 25x32x10.7

09180-25033

1
Out of stock

22

SPACER | K,L,M,A,B; 30x37x10.3

09180-30001

1
Out of stock

23

OIL SEAL 32X62X | K,L,M,A,B This part replaces 09289-32001.

09289-32004

1
Out of stock

24

OIL SEAL | K,L,M,A,B

09289-37001

1
Out of stock

25

OIL SEAL | K,L,M,A,B

09283-25048

1
Out of stock

26

WASHER | K,L,M,A,B; 20x47x1

09160-20025

1
Out of stock

27

C RING | K,L,M,A,B This part replaces 09390-62005.

09390-62009

1
Out of stock

28

GEAR, PRIMARY DRIVE | K,L,M,A,B; NT:19

21111-29000

1
Out of stock

29

NUT | K,L,M,A,B

09140-18002

1
Out of stock

30

WASHER | K,L,M,A,B

09166-18001

1
Out of stock

31

KEY | K,L,M,A,B

08341-31059

1
Out of stock
