1977 Suzuki GT185 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

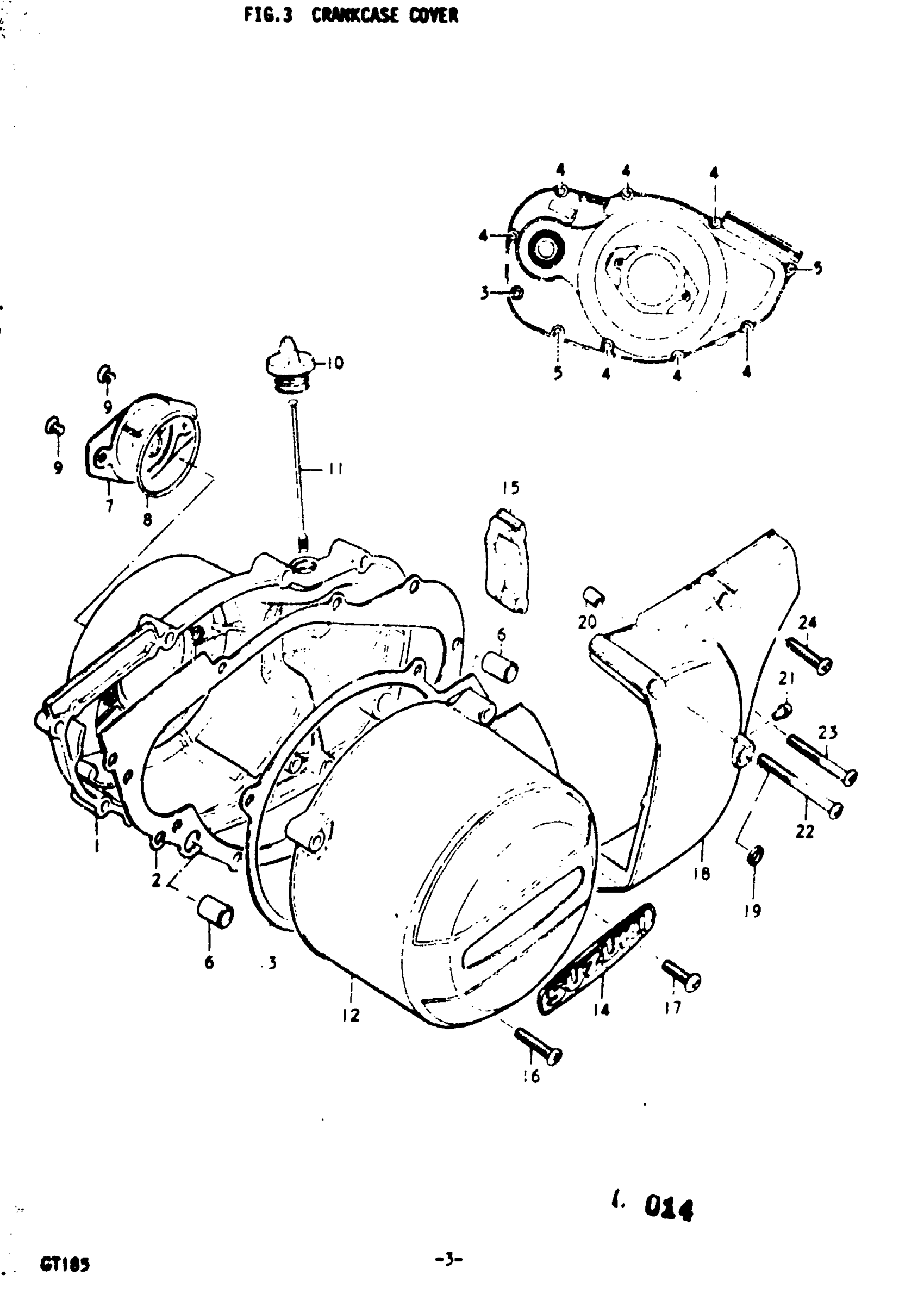

1977 Suzuki GT185 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | K,L,M,A,B

11341-36101

1
Out of stock

2

GASKET,CLUTCH C | K,L,M,A,B This part replaces 11482-36000.

11482-36000-H17

1
Out of stock

3

SCREW (6X40) | K,L,M,A,B This part replaces 02112-06408.

02112-06407

1
Out of stock

4

SCREW | K,L,M,A,B This part replaces 02112-06358.

02112-06357

7
Out of stock

5

SCREW | K,L,M,A,B This part replaces 02112-06258.

02112-06257

2
Out of stock

6

PIN | K,L,M,A,B This part replaces 09206-13001.

04211-13189

2
Out of stock

7

CAP, CLUTCH RELEASE ADJUSTING | K,L,M,A,B

11387-36000

1
Out of stock

8

GASKET | K

11495-36000

1
Out of stock

8

O RING | L,M,A,B This part replaces 09280-58001.

09280-58003

1
Out of stock

9

SCREW | K,L,M,A,B This part replaces 02131-05127.

02122-05127

2
Out of stock

10

PLUG | K,L,M,A,B This part replaces 09259-19001.

09259-19005

1
Out of stock

11

GAUGE, OIL LEVEL | K,L,M,A,B

24831-36000

1
Out of stock

12

COVER, GENERATOR | K,L,M

11351-36100

1
Out of stock

12

COVER, GENERATOR | A,B

11351-36101

1
Out of stock

13

GASKET | K,L,M

11483-36100

1
Out of stock

13

GASKET | A,B

11483-36101

1
Out of stock

14

EMBLEM, GENERATOR COVER | K,L,M,A,B

68233-34000

1
Out of stock

15

SEAL, GENERATOR COVER | K,L,M,A,B

11393-36100

1
Out of stock

16

SCREW | K,L,M,A,B

02112-06307

3
Out of stock

17

SCREW | K,L,M,A,B This part replaces 02112-06208.

02112-06207

1
Out of stock

18

COVER, ENGINE SPROCKET | K,L,M; TO 11360-36103 USER WITH 08351-11009 This part replaces 11360-36102.

11360-36103

1
Out of stock

18

COVER, ENGINE SPROCKET | A,B

11360-36103

1
Out of stock

19

OIL SEAL | K,L,M,A,B

09284-12004

2
Out of stock

20

PIN | K,L,M,A,B

04211-09129

1
Out of stock

21

MIPPLE, GREASE | A,B

08351-11009

1
Out of stock

22

SCREW | K,L,M,A,B This part replaces 02112-06608.

02112-06607

2
Out of stock

23

SCREW (6X40) | K,L,M,A,B This part replaces 02112-06408.

02112-06407

1
Out of stock

24

SCREW | K,L,M,A,B

02112-06307

1
Out of stock
