1977 Suzuki GT185 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

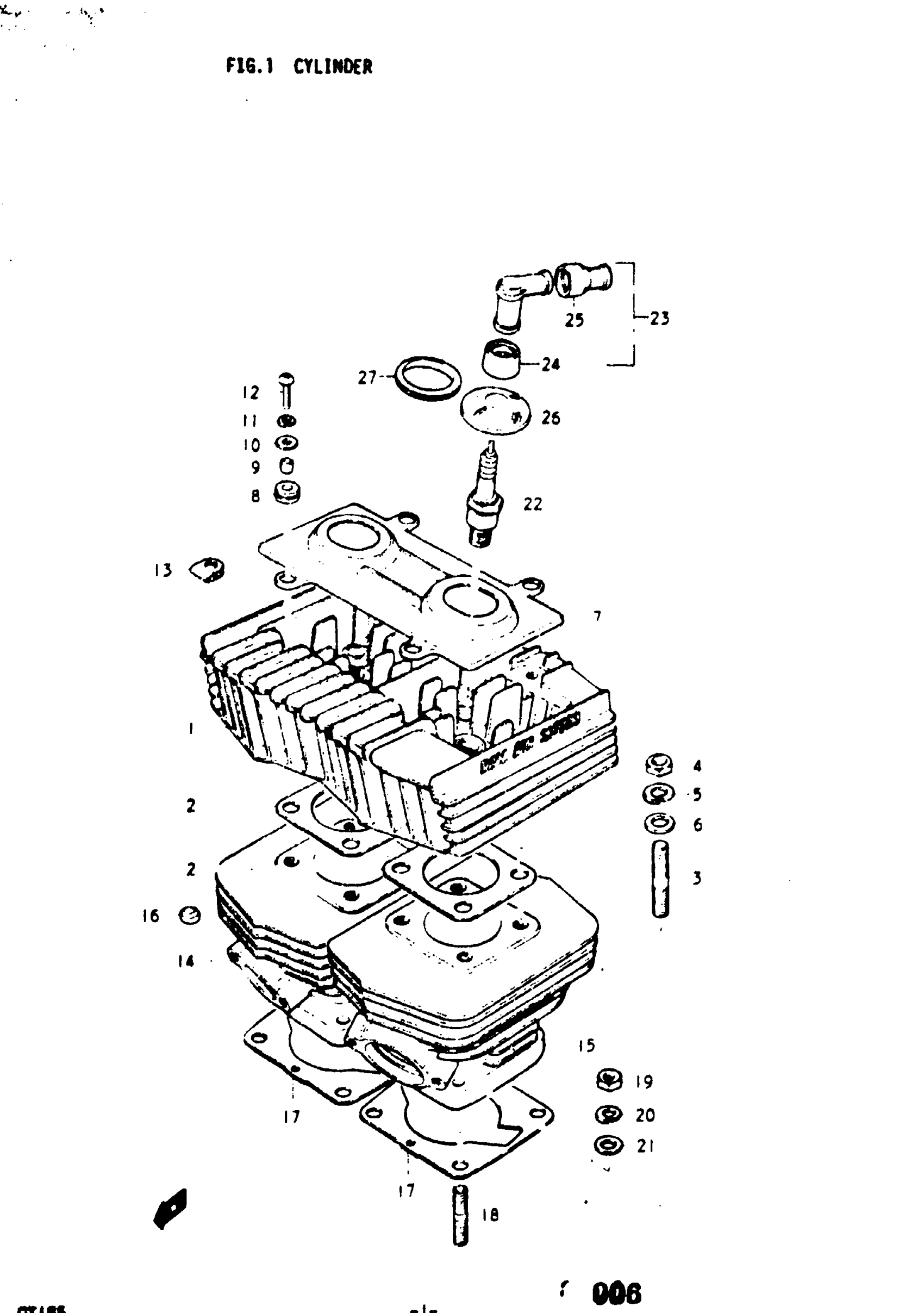

1977 Suzuki GT185 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD | K,L,M,A,B

11111-36100

1
Out of stock

2

GASKET,CYLINDER | K,L,M,A,B This part replaces 11141-36100.

11141-361V0

2
Out of stock

3

STUD BOLT (L:30) | K,L,M,A,B This part replaces 01421-10308.

01421-1030A

8
Out of stock

4

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

8
Out of stock

5

LOCK WASHER | K,L,M,A This part replaces 08321-21108.

08321-01107

8
Out of stock

6

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

8
Out of stock

7

COVER, CYLINDER HEAD | K,L,M,A,B

11171-36000

1
Out of stock

8

CUSHION | K,L,M,A,B

09320-08016

4
Out of stock

9

SPACER | K,L,M,A,B; 6.2x8.3x5.7

09180-06001

4
Out of stock

10

WASHER | K,L,M,A,B; 6.3x14x1.6 This part replaces 09160-06031.

09160-06125

4
Out of stock

12

SCREW | K,L,M,A,B This part replaces 02112-06168.

02112-06167

4
Out of stock

13

PLATE, CYLINDER HEAD GROUND | K,L,M,A,B

33529-36000

1
Out of stock

14

CYLINDER, RH | K,L,M,A,B

11210-36100

1
Out of stock

15

CYLINDER, LH | K,L,M,A,B

11220-36100

1
Out of stock

16

RUBBER PAD, CYLINDER | K,L,M,A,B

11252-34000

16
Out of stock

17

GASKET,CYLINDER | K,L,M,A,B This part replaces 11241-36100.

11241-36101

2
Out of stock

18

BOLT,STUD | K,L,M,A,B This part replaces 01421-08258.

01421-0825A

8
Out of stock

19

8

$1.93

In stock

21

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

8
Out of stock

22

SPARK PLUG | K,L,M,A,B; NGK B-7HS

09482-00082

2
Out of stock

22

SPARK PLUG | K,L,M,A,B; NO W22FS

09482-00083

2
Out of stock

23

CAP SET,SPARK P | K,L,M,A,B; Includes Item(s) 24 - 25 This part replaces 33500-69810.

33500-69811

2
Out of stock

24

SEAL, SPARK PLUG | K,L,M,A,B

33541-69010

2
Out of stock

25

SEAL,HIGH TENSION CORD (SIDE) | K,L,M,A,B This part replaces 33542-98000.

33542-38B00

2
Out of stock

26

BOOT, PLUG CAP | K; TO 33543-36010

33543-36001

—
Out of stock

26

BOOT, PLUG CAP | L,M; TO 09308-36001 USED WITH 33541-69010

33543-36010

—
Out of stock

27

RING, SPARK PLUG | A,B

09308-36001

2
Out of stock
