1977 Suzuki GT185 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

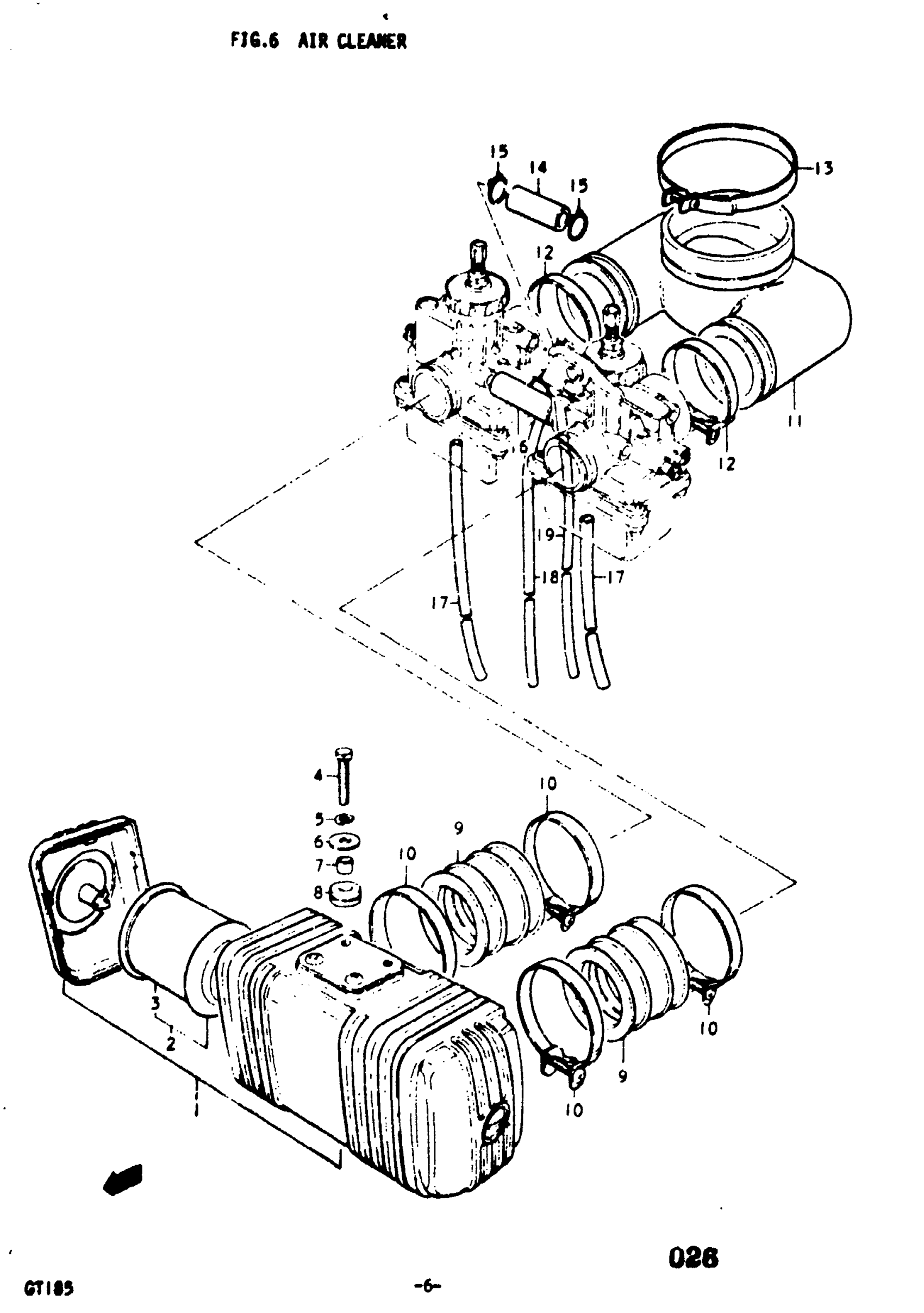

1977 Suzuki GT185 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | K,L,M,A

13700-36011

—
Out of stock

1

CLEANER ASSY, AIR | B; FROM 13700-36011; Includes Item(s) 2 - 3

13700-36012

1
Out of stock

2

FILTER ASSY | K,L,M,A,B

13780-36010

2
Out of stock

3

FILTER | K,L,M,A,B; FROM 13781-36010

13781-36011

2
Out of stock

4

BOLT, REAR | K,L,M,A,B This part replaces 01112-06308.

01500-06307

2
Out of stock

6

WASHER (6.5X20X1.2) | K,L,M,A,B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

7

SPACER (6.5X9X7) | K,L,M,A,B; 7x9x7 This part replaces 09180-07005.

09180-06259

2
Out of stock

8

CUSHION (8.5X20X8) | K,L,M,A,B This part replaces 09320-08007.

09320-08510

2
Out of stock

9

PIPE, INTAKE | K,L,M,A,B

13111-36000

2
Out of stock

10

CLAMP | K,L,M,A,B This part replaces 09402-42306.

09402-42303

4
Out of stock

11

HOSE, CARBURETOR AIR INLET | K,L,M,A,B

13881-36001

1
Out of stock

12

CLAMP | K,L,M,A,B This part replaces 09402-42306.

09402-42303

2
Out of stock

13

CLAMP | K,L,M,A,B This part replaces 09402-70305.

09402-70306-XC0

1
Out of stock

14

HOSE, FUEL | K,L,M,A; 5.3x10.5x34

09343-05115

—
Out of stock

14

HOSE(5.3X10.5X6 | B; 5.3x10.5x42 This part replaces 09343-05112.

09355-53001-600

1
Out of stock

15

CLIP | K,L,M,A,B

09401-10401

2
Out of stock

16

HOSE(5.3X10.5X6 | K,L,M,A,B; 5.3x10.5x42 This part replaces 09343-05112.

09355-53001-600

1
Out of stock

17

HOSE | K,L,M,A,B; 3x5x300 This part replaces 09344-03019.

09351-30001-600

2
Out of stock

18

HOSE, OVER FLOW RH | K; 3x5x250

09344-03010

—
Out of stock

19

HOSE, OVER FLOW LH | K; 3x5x190L,M,A,B; 3x5x190

09344-03017

—
Out of stock
