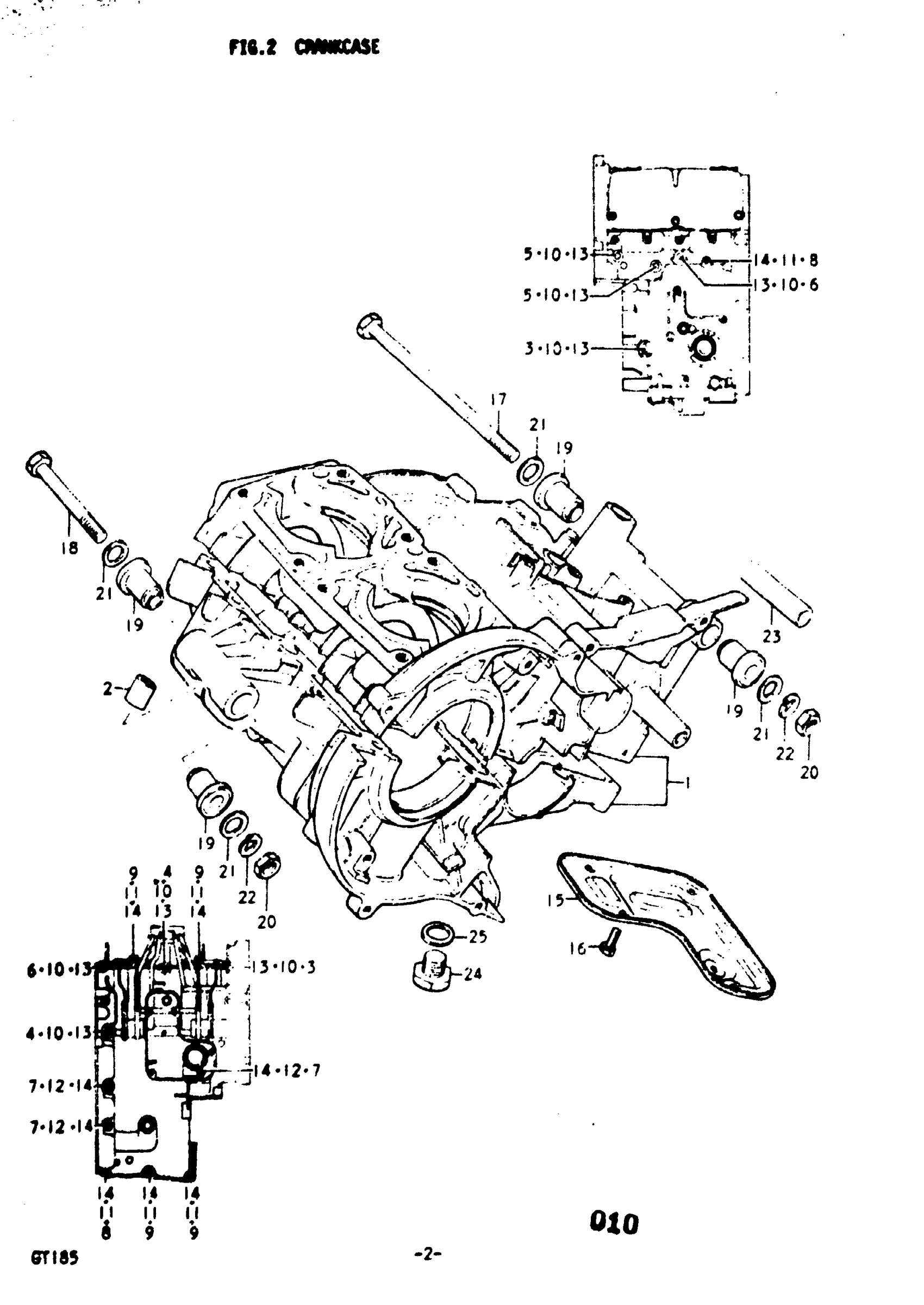

Suzuki GT185 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | K; TO 11300-36811 USED WITH 31710-36111

11300-36810

Unavailable

1

CRANKCASE SET | L,M

11300-36811

Unavailable

1

CRANKCASE SET | A,B; Includes Item(s) 2 - 14

11300-36840

Unavailable

2

PIN | K,L,M,A,B This part replaces 09206-13001.

04211-13189

$2.25

3

BOLT | K,L,M,A,B This part replaces 01122-08808.

01500-0880B

$4.45

4

BOLT | K,L,M,A,B This part replaces 01122-08658.

01500-0865B

$3.32

5

BOLT | K,L,M,A,B This part replaces 01122-08558.

01500-08557

$3.00

6

BOLT | K,L,M,A,B This part replaces 01122-08458.

01500-08453

$2.62

7

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 01112-06758.

01500-06753

Unavailable

8

BOLT | K,L,M,A,B This part replaces 01112-06458.

01500-0645B

$2.68

9

BOLT | K,L,M,A,B This part replaces 01112-06358.

64455-07L00

$1.68

10

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$1.92

11

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$1.93

12

WASHER, C | K,L,M,A,B

09168-06004

$1.46

13

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$1.89

14

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$1.89

15

COVER, CLUTCH RELEASE ARM | K,L,M,A,B

11451-36000

Unavailable

16

BOLT | K,L,M,A,B This part replaces 01112-05108.

01500-0510B

$1.88

17

BOLT | K,L,M,A,B; 8x150

09100-08103

Unavailable

18

BOLT | K,L,M,A,B This part replaces 01122-08758.

01500-0875B

$4.45

19

BUSHING | K,L,M,A,B

09319-08009

Unavailable

20

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$1.91

21

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

$1.92

22

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$1.89

23

SPACER | K,L,M,A,B; 8.9x13.5x74

09180-08066

Unavailable

23

SPACER | K,L,M,A,B; 8.9x13.5x70

09180-08065

Unavailable

24

PLUG (MAGNETO) | K,L,M,A,B This part replaces 09247-14001.

09247-14002

$4.86

25

GASKET | K,L,M,A,B

09168-14004

$1.69
