1996 Suzuki GSX600FT Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

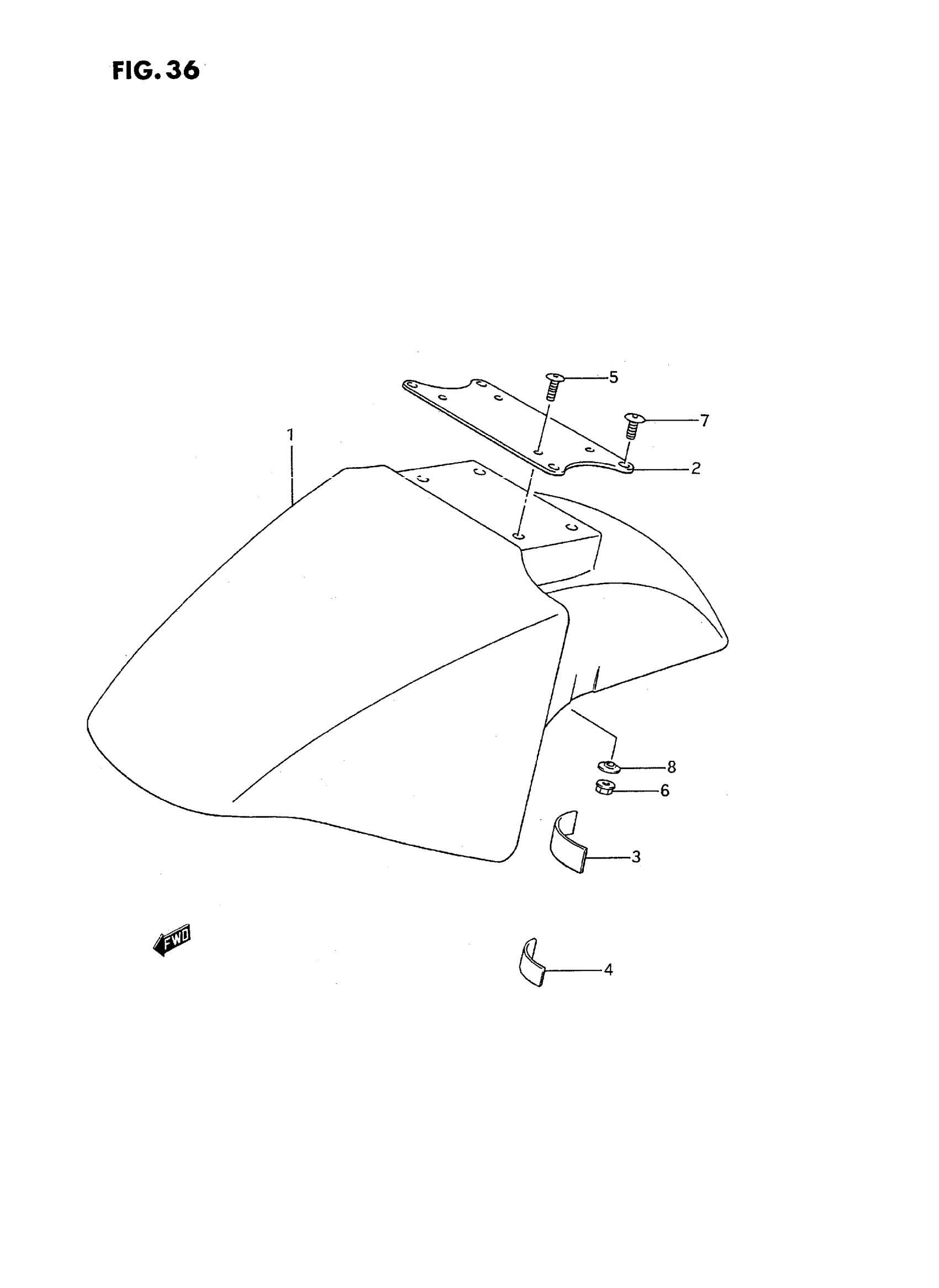

1996 Suzuki GSX600FT Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL J,FOR 07P,21X,38K,32X->53111-19C21-22R This part replaces 53111-32B10-22R.

53111-20C00

1
Out of stock

1

FENDER, FRONT (BLUE) | MODEL K,FOR 24V->53111-19C21-24V

53111-32B10-24V

—
Out of stock

1

FENDER, FRONT (RED) | MODEL K,FOR 28V->53111-19C21-28V This part replaces 53111-32B10-28V.

53111-20C00-28V

1
Out of stock

1

FENDER, FRONT (RED) | MODEL L/M,FOR 28V This part replaces 53111-19C21-28V.

53111-20C00-28V

1
Out of stock

1

FENDER, FRONT (BLACK) | MODEL L/M/N/R,FOR 33JMODEL P,FOR 36X This part replaces 53111-19C21-33J.

53111-20C00-33J

1
Out of stock

1

FENDER, FRONT (RED) | MODEL N,FOR 19A This part replaces 53111-19C21-19A.

53111-20C00-19A

1
Out of stock

1

FENDER, FRONT (RED) | MODEL P,FOR 1MW This part replaces 53111-19C21-1MW.

53111-20C00-1MW

1
Out of stock

1

FENDER, FRONT (RED) | MODEL R,FOR 1TY

53111-19C21-1TY

1
Out of stock

1

FENDER, FRONT (GREEN) | MODEL S FOR 1ZV

53111-19C21-1ZV

1
Out of stock

1

FENDER, FRONT (BLACK) | MODEL S FOR D4A This part replaces 53111-19C21-33J.

53111-20C00-33J

1
Out of stock

1

FENDER, FRONT (BLACK) | MODEL T

53111-20C00-33J

1
Out of stock

1

FENDER, FRONT (GREEN) | MODEL T This part replaces 53111-20C00-1ZV.

53111-19C21-1ZV

1
Out of stock

2

BRACE, FRONT FENDER (SILVER) | MODEL J/K/L/M This part replaces 53114-19C00.

53114-01D00

1
Out of stock

2

BRACE, FRONT FENDER | MODEL N/P/R/S/T

53114-01D00

1
Out of stock

3

CUSHION,FR This part replaces 53145-19C00.

46312-31D11

2
Out of stock

4

CUSHION, LOWER

53146-20C00

2
Out of stock

5

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

6

NUT This part replaces 09159-05026.

09159-05043

4
Out of stock

7

SCREW, FENDER

09139-06027

4
Out of stock

8

WASHER

09169-05010

4
Out of stock

9

COLOR : D4A =

SPECIAL NOTE

—
Out of stock
