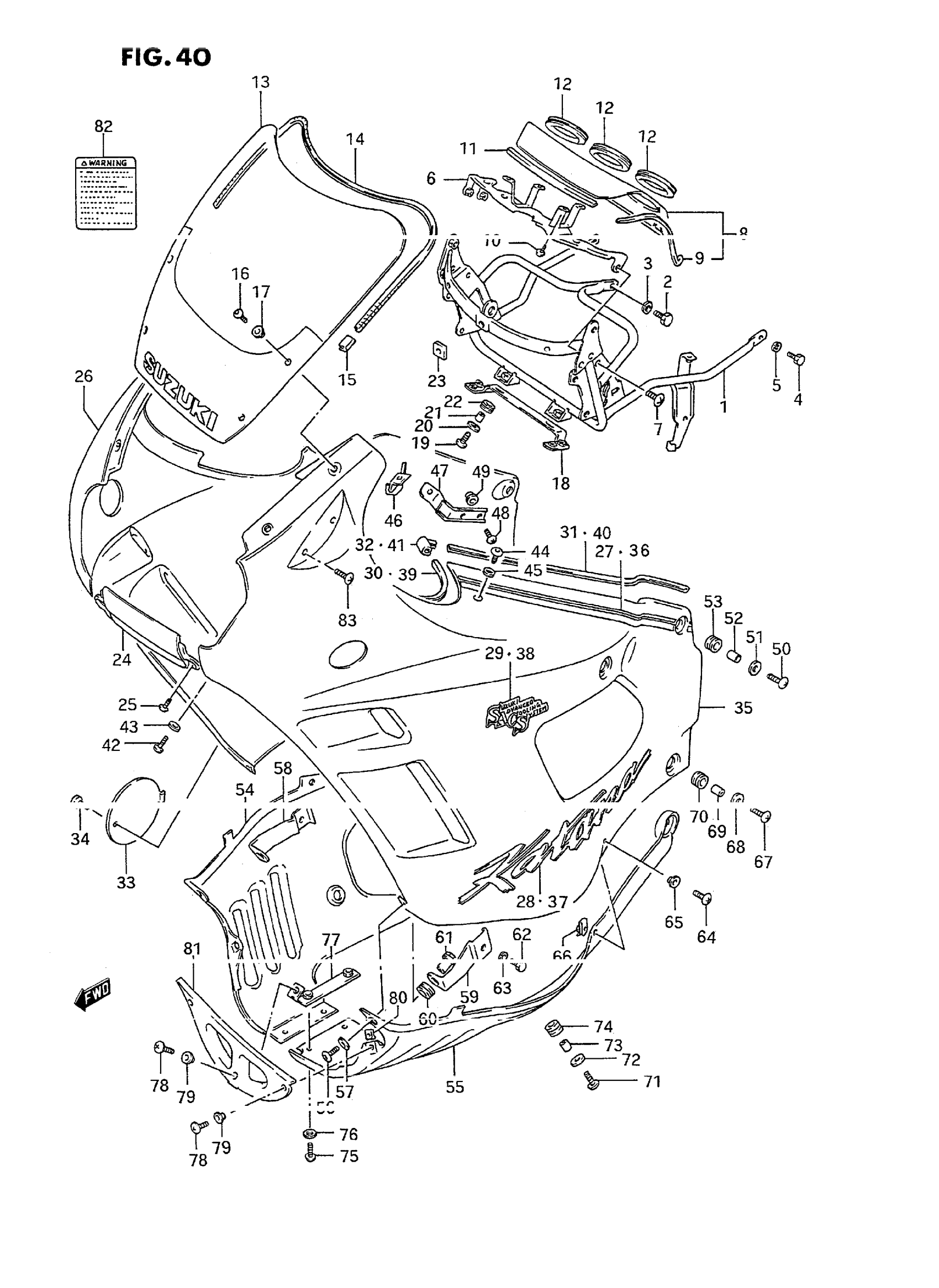

Find the part on the Cowling diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING This part replaces 94510-19C00.

94510-20C20

1
Out of stock

2

BOLT This part replaces 01107-08205.

01500-0820A

1
Out of stock

3

1

$1.99

In stock

4

BOLT This part replaces 01107-06125.

01500-0612A

2
Out of stock

5

2

$1.97

In stock

6

PLATE, METER

94520-19C00

1
Out of stock

7

SCREW This part replaces 02142-06125.

02142-0612A

4
Out of stock

8

COVER, METER | Includes Item(s) 9 This part replaces 94420-19C00.

94420-19C02

1
Out of stock

9

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

2
Out of stock

10

SCREW This part replaces 03541-05085.

03541-0508A

4
Out of stock

11

MOLDING, METER

94527-19C00

1
Out of stock

12

CUSHION, COVER

94426-19C00

3
Out of stock

13

WINDOW This part replaces 94610-19C00.

94610-19C10

1
Out of stock

14

MOLDING This part replaces 94631-19C00.

94631-49300

1
Out of stock

15

CAP

94637-19C00

2
Out of stock

16

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

17

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

18

PLATE, CENTER

94460-19C00

1
Out of stock

19

SCREW This part replaces 02142-06205.

02142-0620A

2
Out of stock

20

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

21

SPACER This part replaces 09180-06167.

09180-06286

2
Out of stock

22

CUSHION

09320-10015

2
Out of stock

23

CUSHION This part replaces 94638-19C00.

63191-25C00

1
Out of stock

24

PANEL,COWLING C This part replaces 94421-19C00-22R.

94421-19C01-22R

1
Out of stock

25

SCREW

02142-05127

1
Out of stock

26

COVER ASSY, COWLING,RH | FOR 07P,21X

94401-19C20-22R

—
Out of stock

26

COVER ASSY, COWLING,RH | FOR 38K,32X; Includes Item(s) 27 - 34

94401-19C20-06X

—
Out of stock

27

TAPE SET, RH | FOR 22R

68180-19C00-85K

1
Out of stock

27

TAPE SET, RH | FOR 06X

68180-19C00-2GC

1
Out of stock

28

EMBLEM | FOR 22R

68181-19C00-9AP

1
Out of stock

28

EMBLEM | FOR 06X

68181-19C00-2GB

1
Out of stock

29

EMBLEM (SACS) | FOR 22R

68131-27A00-9AP

—
Out of stock

29

EMBLEM (SACS) | FOR 06X

68131-27A00-2GT

—
Out of stock

30

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

31

MOLDING

94635-19C00

1
Out of stock

32

JOINT

94438-19C00

1
Out of stock

33

NO DESCRIPTION AVAILABLE This part replaces 94435-19C00-22R.

94435-19C01-22R

1
Out of stock

34

SCREW

09139-06030

1
Out of stock

35

COVER ASSY, COWLING,LH | FOR 07P,21X

94402-19C20-22R

—
Out of stock

35

COVER ASSY, COWLING,LH | FOR 38K,32X; Includes Item(s) 36 - 41

94402-19C20-06X

—
Out of stock

36

TAPE SET, LH | FOR 22R

68190-19C00-85K

1
Out of stock

36

TAPE SET, LH | FOR 06X

68190-19C00-2GC

1
Out of stock

37

EMBLEM | FOR 22R

68181-19C00-9AP

1
Out of stock

37

EMBLEM | FOR 06X

68181-19C00-2GB

1
Out of stock

38

EMBLEM (SACS) | FOR 22R

68131-27A00-9AP

—
Out of stock

38

EMBLEM (SACS) | FOR 06X

68131-27A00-2GT

—
Out of stock

39

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

40

MOLDING

94635-19C00

1
Out of stock

41

JOINT

94438-19C00

1
Out of stock

42

SCREW, FRONT

09139-06029

2
Out of stock

43

WASHER

09160-06036

2
Out of stock

44

SCREW, UPPER

09139-06030

2
Out of stock

45

WASHER

09161-06021

2
Out of stock

46

BRACKET, UPPER,RH

94560-19C00

1
Out of stock

47

BRACKET, UPPER,LH

94570-19C00

1
Out of stock

48

SCREW

09125-06055

4
Out of stock

49

NUT

94573-19C00

4
Out of stock

50

SCREW

09139-06029

4
Out of stock

51

WASHER

09160-06036

4
Out of stock

52

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

4
Out of stock

53

CUSHION

09320-09016

4
Out of stock

54

COVER, UNDER RH (SILVER) This part replaces 94471-19C00-019.

94471-19C00-13L

1
Out of stock

55

COVER, UNDER,LH (BLACK)

94481-19C00-019

1
Out of stock

56

SCREW, FRONT

09139-06042

2
Out of stock

57

WASHER

09160-06036

2
Out of stock

58

BRACKET, UNDER,RH

94531-19C00

1
Out of stock

59

BRACKET, UNDER,LH

94532-19C00

1
Out of stock

60

CUSHION

09320-10015

2
Out of stock

61

NUT

94590-19C00

2
Out of stock

62

BOLT This part replaces 01107-06165.

01500-0616A

2
Out of stock

63

2

$1.97

In stock

64

SCREW

09139-05032

2
Out of stock

65

WASHER

09161-05017

2
Out of stock

66

2

$3.95

In stock

67

SCREW, REAR

09139-06029

2
Out of stock

68

WASHER

09160-06036

2
Out of stock

69

SPACER

09180-06097

2
Out of stock

70

CUSHION

09320-09016

2
Out of stock

71

SCREW This part replaces 02142-06205.

02142-0620A

2
Out of stock

72

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

73

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

74

CUSHION, LOWER

09320-09016

2
Out of stock

75

SCREW This part replaces 02142-05164.

02142-0516A

2
Out of stock

76

2

$1.97

In stock

77

BRACKET, LOWER

94580-19C00

1
Out of stock

78

SCREW This part replaces 02142-05164.

02142-0516A

3
Out of stock

79

WASHER

09161-05017

3
Out of stock

80

2

$3.95

In stock

81

COVER, COW UNDER FRONT (BLACK This part replaces 94475-19C00-019.

94475-19C01

1
Out of stock

82

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

1
Out of stock

82

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

1
Out of stock

83

SCREW

02142-06127

2
Out of stock

84

REFER TO FIG.40A(H- 6) FOR

SPECIAL NOTE

—
Out of stock
