1996 Suzuki GSX600FT Cowling Diagram

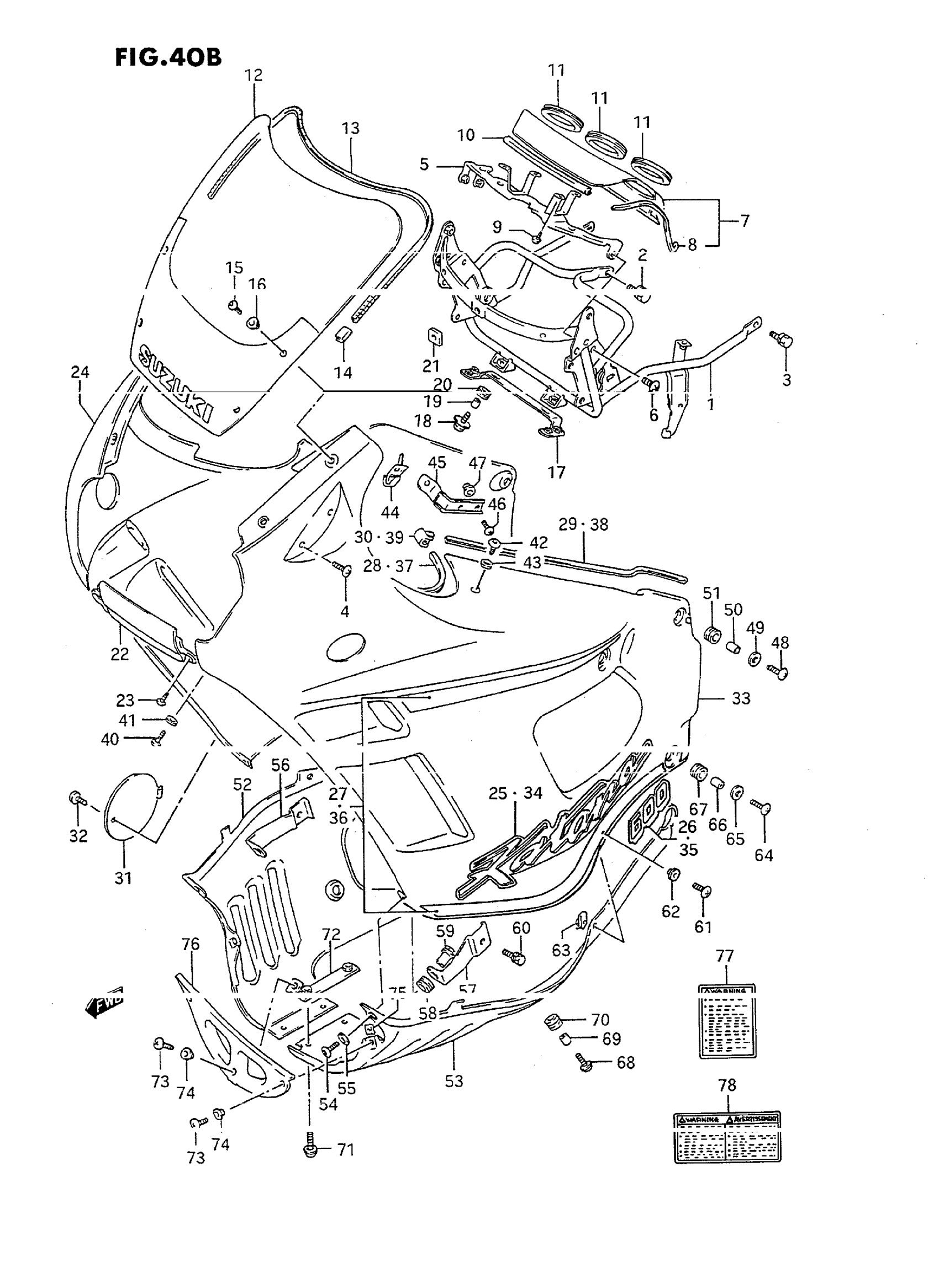

Find the part on the Cowling diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
BRACE, COWLING This part replaces 94510-19C00.
94510-20C20
3
BOLT, CLAMP This part replaces 01517-06125.
01550-0612A
5
PLATE, METER
94520-19C00
7
COVER, METER | Includes Item(s) 8 This part replaces 94420-19C00.
94420-19C02
11
CUSHION, COVER
94426-19C00
12
WINDOW
94610-19C10
14
CAP
94637-19C00
15
SCREW, SCREEN This part replaces 09139-05022.
09139-05042
16
WASHER (5.2X11.0X1.0)
09161-05010
17
PLATE, CENTER
94460-19C00
19
SPACER This part replaces 09180-06167.
09180-06286
20
CUSHION
09320-10015
22
PANEL, CENTER (RED)
94421-19C01-28V
22
PANEL, CENTER (BLACK)
94421-19C01-33J
23
SCREW
02142-05127
24
NO DESCRIPTION AVAILABLE This part replaces 94401-19C71-28V.
94401-19C72-28V
24
NO DESCRIPTION AVAILABLE | FOR 33J; Includes Item(s) 25 - 32 This part replaces 94401-19C71-36X.
94401-19C72-36X
25
EMBLEM, KATANA | FOR 28V
68181-19C00-A15
25
EMBLEM, KATANA | FOR 36X
68181-19C00-3YS
26
EMBLEM, 600 | FOR 28V
68182-19C10-3AU
26
EMBLEM, 600 | FOR 36X
68182-19C10-3YT
27
TAPE SET, RH | FOR 28V
68180-19C30-0PM
27
TAPE SET, RH | FOR 36X
68180-19C30-0PN
28
MOLDING This part replaces 94631-19C10.
94631-49310
30
JOINT
94438-19C00
31
LID, OIL (RED)
94435-19C01-28V
31
LID, OIL (BLACK)
94435-19C01-33J
33
NO DESCRIPTION AVAILABLE This part replaces 94402-19C71-28V.
94402-19C72-28V
33
NO DESCRIPTION AVAILABLE | FOR 33J; Includes Item(s) 34 - 39 This part replaces 94402-19C71-36X.
94402-19C72-36X
34
EMBLEM, KATANA | FOR 28V
68181-19C00-A15
34
EMBLEM, KATANA | FOR 36X
68181-19C00-3YS
35
EMBLEM, 600 | FOR 28V
68182-19C10-3AU
35
EMBLEM, 600 | FOR 36X
68182-19C10-3YT
36
TAPE SET, LH | FOR 28V
68190-19C30-0PM
36
TAPE SET, LH | FOR 36X
68190-19C30-0PN
37
MOLDING This part replaces 94631-19C10.
94631-49310
39
JOINT
94438-19C00
40
SCREW, FRONT
09139-06029
44
BRACKET, UPPER,RH
94560-19C00
45
BRACKET, UPPER,LH
94570-19C00
47
NUT
94573-19C00
48
SCREW
09139-06029
50
SPACER (6.5X9X9) This part replaces 09180-06011.
09180-06263
51
CUSHION
09320-09016
52
COVER, UNDER,RH (RED)
94471-19C00-28V
52
COVER, UNDER,RH (BLACK)
94471-19C00-33J
53
COVER, UNDER,LH (RED)
94481-19C00-28V
53
COVER, UNDER,LH (BLACK)
94481-19C00-33J
56
BRACKET, UNDER,RH
94531-19C00
57
BRACKET, UNDER,LH
94532-19C00
58
CUSHION
09320-10015
59
NUT
94590-19C00
63
NUT COWL This part replaces 94484-32B00.
94484-24F00
64
SCREW, REAR
09139-06029
67
CUSHION
09320-09016
69
SPACER (6.5X9X9) This part replaces 09180-06011.
09180-06263
70
CUSHION, LOWER
09320-09016
72
BRACKET, LOWER
94580-19C00
75
NUT COWL This part replaces 94484-32B00.
94484-24F00
76
COVER, UNDER,FRONT (BLACK)
94475-19C01
77
LABEL, SCREEN This part replaces 68612-48B10.
68922-14F30
78
LABEL, WARNING SAFETY This part replaces 68319-40C10.
68319-33E11
79
REFER TO FIG.40C(H-13) FOR
SPECIAL NOTE
