1996 Suzuki GSX600FT Cowling Diagram

← All diagrams

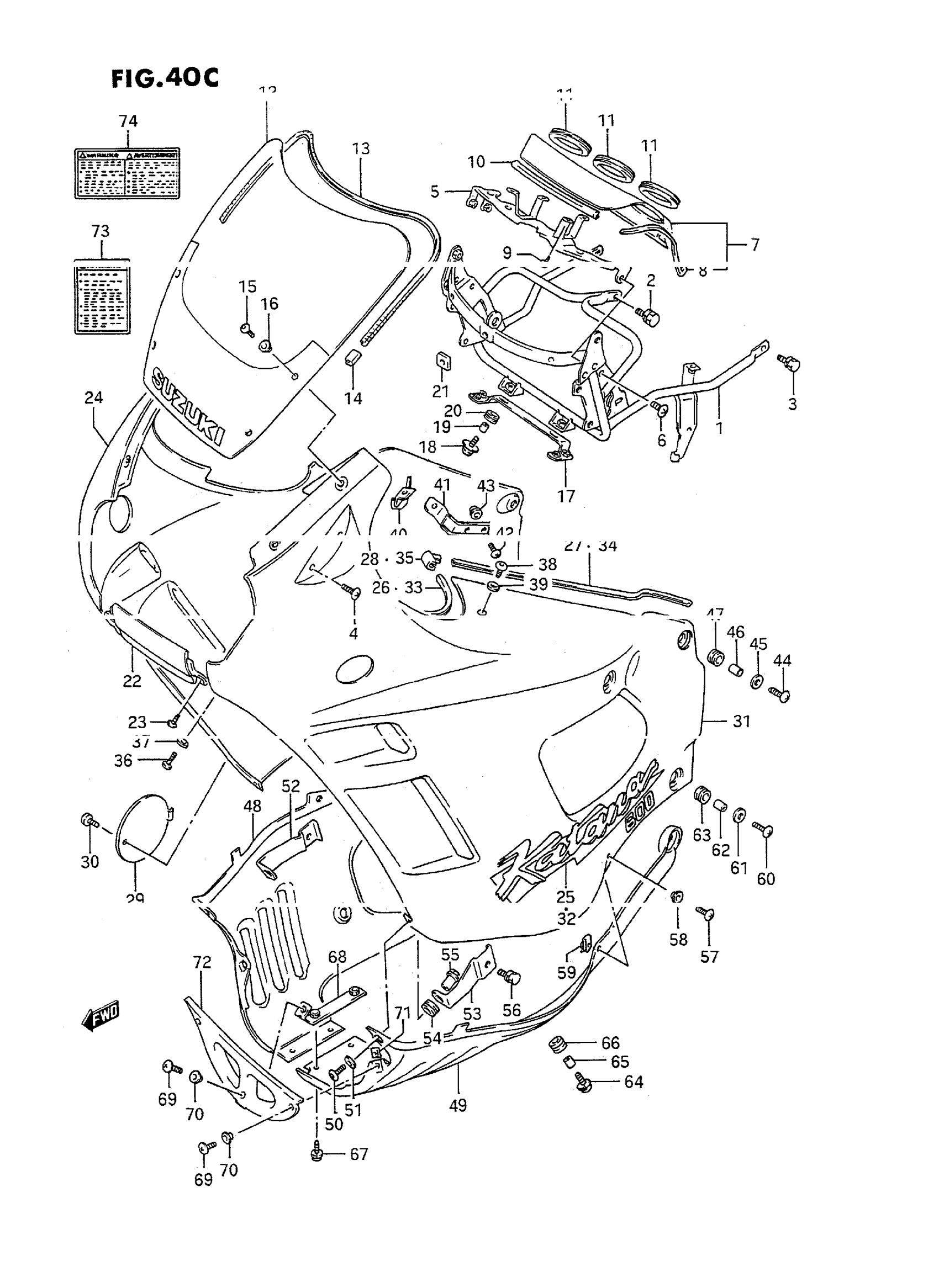

Find the part on the Cowling diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING This part replaces 94510-19C00.

94510-20C20

1
Out of stock

2

BOLT This part replaces 01517-08205.

01550-0820A

1
Out of stock

3

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

4

SCREW

02142-06127

2
Out of stock

5

PLATE, METER

94520-19C00

1
Out of stock

6

SCREW This part replaces 02142-06125.

02142-0612A

4
Out of stock

7

COVER, METER | Includes Item(s) 8 This part replaces 94420-19C00.

94420-19C02

1
Out of stock

8

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

2
Out of stock

9

SCREW This part replaces 03541-05085.

03541-0508A

4
Out of stock

10

MOLDING, METER

94527-19C00

1
Out of stock

11

CUSHION, COVER

94426-19C00

3
Out of stock

12

WINDOW

94610-19C10

1
Out of stock

13

MOLDING This part replaces 94631-19C00.

94631-49300

1
Out of stock

14

CAP

94637-19C00

2
Out of stock

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

16

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

17

PLATE, CENTER

94460-19C00

1
Out of stock

18

SCREW

09136-06081

2
Out of stock

19

SPACER This part replaces 09180-06167.

09180-06286

2
Out of stock

20

CUSHION

09320-10015

2
Out of stock

21

CUSHION This part replaces 94638-19C00.

63191-25C00

1
Out of stock

22

PANEL, CENTER (RED)

94421-19C01-28V

1
Out of stock

22

PANEL, CENTER (BLACK)

94421-19C01-33J

1
Out of stock

23

SCREW

02142-05127

2
Out of stock

24

NO DESCRIPTION AVAILABLE This part replaces 94401-43C10-28V.

94430-19C02-Y7M

1
Out of stock

24

NO DESCRIPTION AVAILABLE | Includes Item(s) 25 - 30 This part replaces 94401-43C10-33J.

94430-19C02-33J

1
Out of stock

25

EMBLEM, KATANA | FOR 28V

68681-19C20-0WR

1
Out of stock

25

EMBLEM, KATANA | FOR 33J

68681-19C20-0WS

1
Out of stock

26

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

27

MOLDING

94635-19C00

1
Out of stock

28

JOINT

94438-19C00

1
Out of stock

29

LID, OIL (RED)

94435-19C01-28V

1
Out of stock

29

LID, OIL (BLACK)

94435-19C01-33J

1
Out of stock

30

SCREW

09139-06030

1
Out of stock

31

NO DESCRIPTION AVAILABLE This part replaces 94402-43C10-28V.

94402-43C11-Y7M

1
Out of stock

31

NO DESCRIPTION AVAILABLE | Includes Item(s) 32 - 35 This part replaces 94402-43C10-33J.

94440-19C02-33J

1
Out of stock

32

EMBLEM, KATANA | FOR 28V

68681-19C20-0WR

1
Out of stock

32

EMBLEM, KATANA | FOR 33J

68681-19C20-0WS

1
Out of stock

33

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

34

MOLDING

94635-19C00

1
Out of stock

35

JOINT

94438-19C00

1
Out of stock

36

SCREW, FRONT

09139-06029

2
Out of stock

37

WASHER

09160-06036

2
Out of stock

38

SCREW, UPPER

09139-06030

2
Out of stock

39

WASHER

09161-06021

2
Out of stock

40

BRACKET, UPPER,RH

94560-19C00

1
Out of stock

41

BRACKET, UPPER,LH

94570-19C00

1
Out of stock

42

SCREW

09125-06055

4
Out of stock

43

NUT

94573-19C00

4
Out of stock

44

SCREW

09139-06029

4
Out of stock

45

WASHER

09160-06036

4
Out of stock

46

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

4
Out of stock

47

CUSHION

09320-09016

4
Out of stock

48

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 94471-19C00-20G.

94471-19C00

1
Out of stock

48

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94471-19C00-24K.

94471-19C00

1
Out of stock

49

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 94481-19C00-20G.

94481-19C00

1
Out of stock

49

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 94481-19C00-24K.

94481-19C00

1
Out of stock

50

SCREW, FRONT

09139-06042

2
Out of stock

51

WASHER

09160-06036

2
Out of stock

52

BRACKET, UNDER,RH

94531-19C00

1
Out of stock

53

BRACKET, UNDER,LH

94532-19C00

1
Out of stock

54

CUSHION

09320-10015

2
Out of stock

55

NUT

94590-19C00

2
Out of stock

56

BOLT This part replaces 01137-06165.

01570-0616A

2
Out of stock

57

SCREW

09139-05025

2
Out of stock

58

WASHER

09161-05017

2
Out of stock

59

2

$3.95

In stock

60

SCREW, REAR

09139-06029

2
Out of stock

61

WASHER

09160-06036

2
Out of stock

62

SPACER

09180-06097

2
Out of stock

63

CUSHION

09320-09016

2
Out of stock

64

SCREW, LOWER

09136-06081

2
Out of stock

65

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

66

CUSHION, LOWER

09320-09016

2
Out of stock

67

SCREW This part replaces 02142-15165.

02142-0516A

2
Out of stock

68

BRACKET, LOWER

94580-19C00

1
Out of stock

69

SCREW This part replaces 02142-05164.

02142-0516A

3
Out of stock

70

WASHER

09161-05017

3
Out of stock

71

2

$3.95

In stock

72

COVER, UNDER,FRONT (BLACK)

94475-19C01

1
Out of stock

73

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

1
Out of stock

73

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

1
Out of stock

74

LABEL, WARNING SAFETY This part replaces 68319-40C10.

68319-33E11

1
Out of stock

75

NO DESCRIPTION AVAILABLE | DRAWING NOT SHOWN This part replaces 68332-19C10.

68332-19C12

1
Out of stock

76

REFER TO FIG.40D(I- 2) FOR

SPECIAL NOTE

—
Out of stock
