1996 Suzuki GSX600FT Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

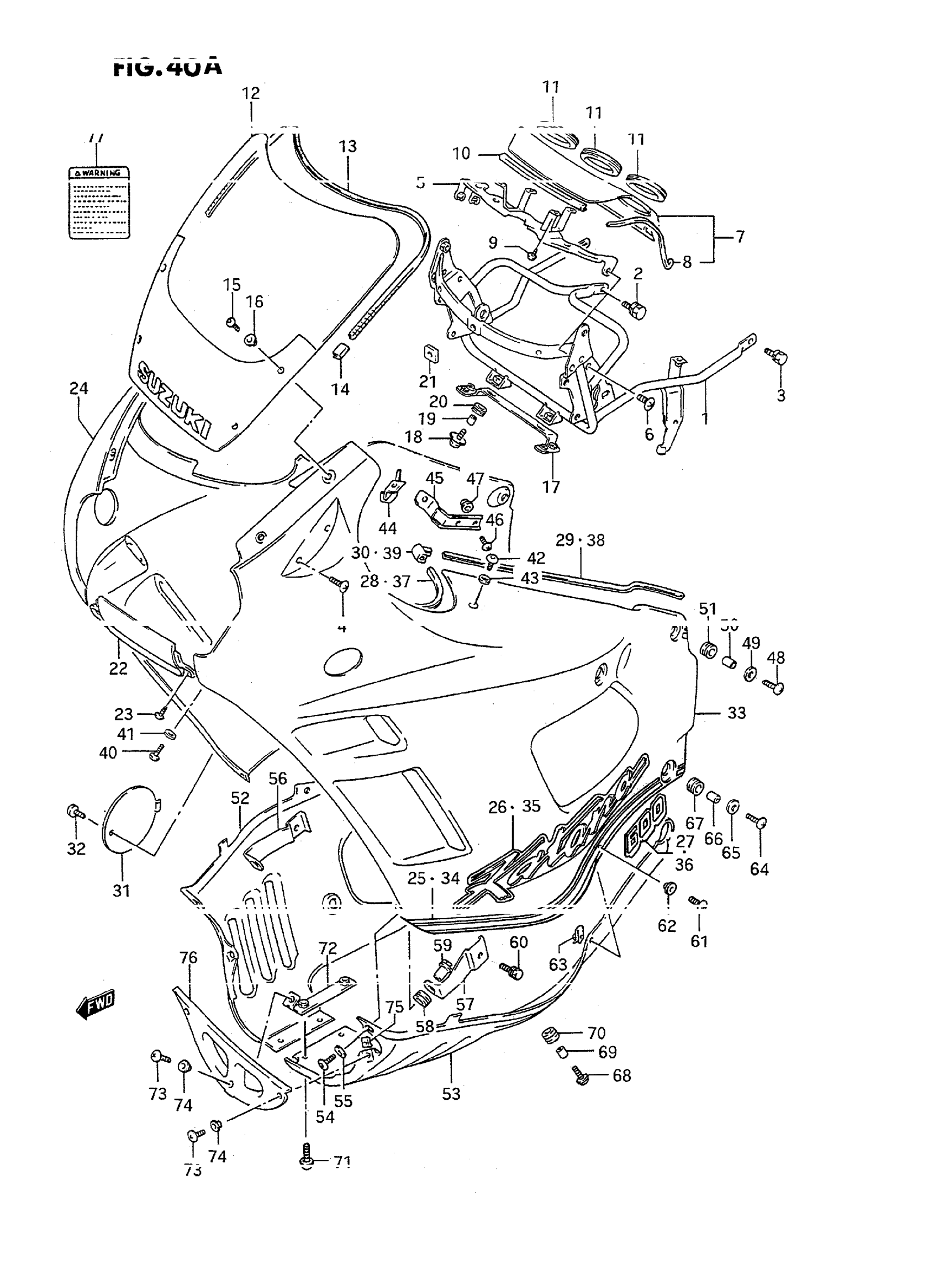

1996 Suzuki GSX600FT Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING This part replaces 94510-19C00.

94510-20C20

1
Out of stock

2

BOLT This part replaces 01517-08205.

01550-0820A

1
Out of stock

3

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

4

SCREW

02142-06127

2
Out of stock

5

PLATE, METER

94520-19C00

1
Out of stock

6

SCREW This part replaces 02142-06125.

02142-0612A

4
Out of stock

7

COVER, METER | Includes Item(s) 8 This part replaces 94420-19C00.

94420-19C02

1
Out of stock

8

MOLDING, LICENSE HOLDER This part replaces 94635-19C10.

94635-19C00

2
Out of stock

9

SCREW This part replaces 03541-05085.

03541-0508A

4
Out of stock

10

MOLDING, METER

94527-19C00

1
Out of stock

11

CUSHION, COVER

94426-19C00

3
Out of stock

12

WINDOW

94610-19C10

1
Out of stock

13

MOLDING This part replaces 94631-19C00.

94631-49300

1
Out of stock

14

CAP

94637-19C00

2
Out of stock

15

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

16

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

17

PLATE, CENTER

94460-19C00

1
Out of stock

18

SCREW

09136-06081

2
Out of stock

19

SPACER This part replaces 09180-06167.

09180-06286

2
Out of stock

20

CUSHION

09320-10015

2
Out of stock

21

CUSHION This part replaces 94638-19C00.

63191-25C00

1
Out of stock

22

PANEL, CENTER (BLUE) | CLEAR COATING This part replaces 94421-19C00-24V.

94421-19C01-24V

1
Out of stock

22

PANEL, CENTER (BLUE)

94421-19C01-24V

1
Out of stock

22

PANEL, CENTER (RED) | CLEAR COATING This part replaces 94421-19C00-28V.

94421-19C01-28V

1
Out of stock

22

PANEL, CENTER (RED)

94421-19C01-28V

1
Out of stock

23

SCREW

02142-05127

2
Out of stock

24

COVER ASSY, COWLING,RH (BLUE) | CLEAR COATING

94401-19C40-24V

—
Out of stock

24

COVER ASSY, COWLING,RH (BLUE)

94401-19C41-24V

—
Out of stock

24

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94401-19C40-28V.

94430-19C02-Y7M

1
Out of stock

24

NO DESCRIPTION AVAILABLE | Includes Item(s) 25 - 32 This part replaces 94401-19C41-28V.

94430-19C02-Y7M

1
Out of stock

25

TAPE SET, RH | FOR 24V

68180-19C10-71P

—
Out of stock

25

TAPE SET, RH | FOR 28V

68180-19C10-70G

1
Out of stock

26

EMBLEM, "KATANA" | FOR 24V

68181-19C00-3AT

—
Out of stock

26

EMBLEM, "KATANA" | FOR 28V

68181-19C00-2WW

1
Out of stock

27

EMBLEM | FOR 24V

68182-19C10-3AS

—
Out of stock

27

EMBLEM | FOR 28V

68182-19C10-3AU

1
Out of stock

28

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

29

MOLDING

94635-19C00

1
Out of stock

30

JOINT

94438-19C00

1
Out of stock

31

LID, OIL (BLUE) | CLEAR COATING This part replaces 94435-19C00-24V.

94435-19C01-24V

1
Out of stock

31

LID, OIL (BLUE)

94435-19C01-24V

1
Out of stock

31

LID, OIL (RED) | CLEAR COATING This part replaces 94435-19C00-28V.

94435-19C01-28V

1
Out of stock

31

LID, OIL (RED)

94435-19C01-28V

1
Out of stock

32

SCREW

09139-06030

1
Out of stock

33

COVER ASSY, COWLING,LH (BLUE) | CLEAR COATING

94402-19C40-24V

—
Out of stock

33

COVER ASSY, COWLING,LH (BLUE)

94402-19C41-24V

—
Out of stock

33

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94402-19C40-28V.

94402-19C42-28V

1
Out of stock

33

NO DESCRIPTION AVAILABLE | Includes Item(s) 34 - 39 This part replaces 94402-19C41-28V.

94402-19C42-28V

1
Out of stock

34

TAPE SET, LH | FOR 24V

68190-19C10-71P

—
Out of stock

34

TAPE SET, LH | FOR 28V

68190-19C10-70G

1
Out of stock

35

EMBLEM, "KATANA" | FOR 24V

68181-19C00-3AT

—
Out of stock

35

EMBLEM, "KATANA" | FOR 28V

68181-19C00-2WW

1
Out of stock

36

EMBLEM | FOR 24V

68182-19C10-3AS

—
Out of stock

36

EMBLEM | FOR 28V

68182-19C10-3AU

1
Out of stock

37

MOLDING This part replaces 94631-19C10.

94631-49310

1
Out of stock

38

MOLDING

94635-19C00

1
Out of stock

39

JOINT

94438-19C00

1
Out of stock

40

SCREW, FRONT

09139-06029

2
Out of stock

41

WASHER

09160-06036

2
Out of stock

42

SCREW, UPPER

09139-06030

2
Out of stock

43

WASHER

09161-06021

2
Out of stock

44

BRACKET, UPPER,RH

94560-19C00

1
Out of stock

45

BRACKET, UPPER,LH

94570-19C00

1
Out of stock

46

SCREW

09125-06055

4
Out of stock

47

NUT

94573-19C00

4
Out of stock

48

SCREW

09139-06029

4
Out of stock

49

WASHER

09160-06036

4
Out of stock

50

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

4
Out of stock

51

CUSHION

09320-09016

4
Out of stock

52

COVER, UNDER,RH (BLUE)

94471-19C00-24V

—
Out of stock

52

COVER, UNDER,RH (RED)

94471-19C00-28V

1
Out of stock

53

COVER, UNDER,LH (BLUE)

94481-19C00-24V

—
Out of stock

53

COVER, UNDER,LH (RED)

94481-19C00-28V

1
Out of stock

54

SCREW, FRONT

09139-06042

2
Out of stock

55

WASHER

09160-06036

2
Out of stock

56

BRACKET, UNDER,RH

94531-19C00

1
Out of stock

57

BRACKET, UNDER,LH

94532-19C00

1
Out of stock

58

CUSHION

09320-10015

2
Out of stock

59

NUT

94590-19C00

2
Out of stock

60

BOLT This part replaces 01137-06165.

01570-0616A

2
Out of stock

61

SCREW

09139-05025

2
Out of stock

62

WASHER

09161-05017

2
Out of stock

63

2

$3.95

In stock

64

SCREW, REAR

09139-06029

2
Out of stock

65

WASHER

09160-06036

2
Out of stock

66

SPACER

09180-06097

2
Out of stock

67

CUSHION

09320-09016

2
Out of stock

68

SCREW, LOWER

09136-06081

2
Out of stock

69

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

70

CUSHION, LOWER

09320-09016

2
Out of stock

71

SCREW This part replaces 02142-15165.

02142-0516A

2
Out of stock

72

BRACKET, LOWER

94580-19C00

1
Out of stock

73

SCREW This part replaces 02142-05164.

02142-0516A

3
Out of stock

74

WASHER

09161-05017

3
Out of stock

75

2

$3.95

In stock

76

COVER, UNDER,FRONT (BLUE)

94475-19C00-24V

—
Out of stock

76

COVER, COW UNDER FRONT (BLACK This part replaces 94475-19C00-28V.

94475-19C01

1
Out of stock

76

COVER, UNDER,FRONT (BLACK)

94475-19C01

1
Out of stock

77

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

1
Out of stock

77

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

1
Out of stock

78

REFER TO FIG.40B(H-10) FOR

SPECIAL NOTE

—
Out of stock
