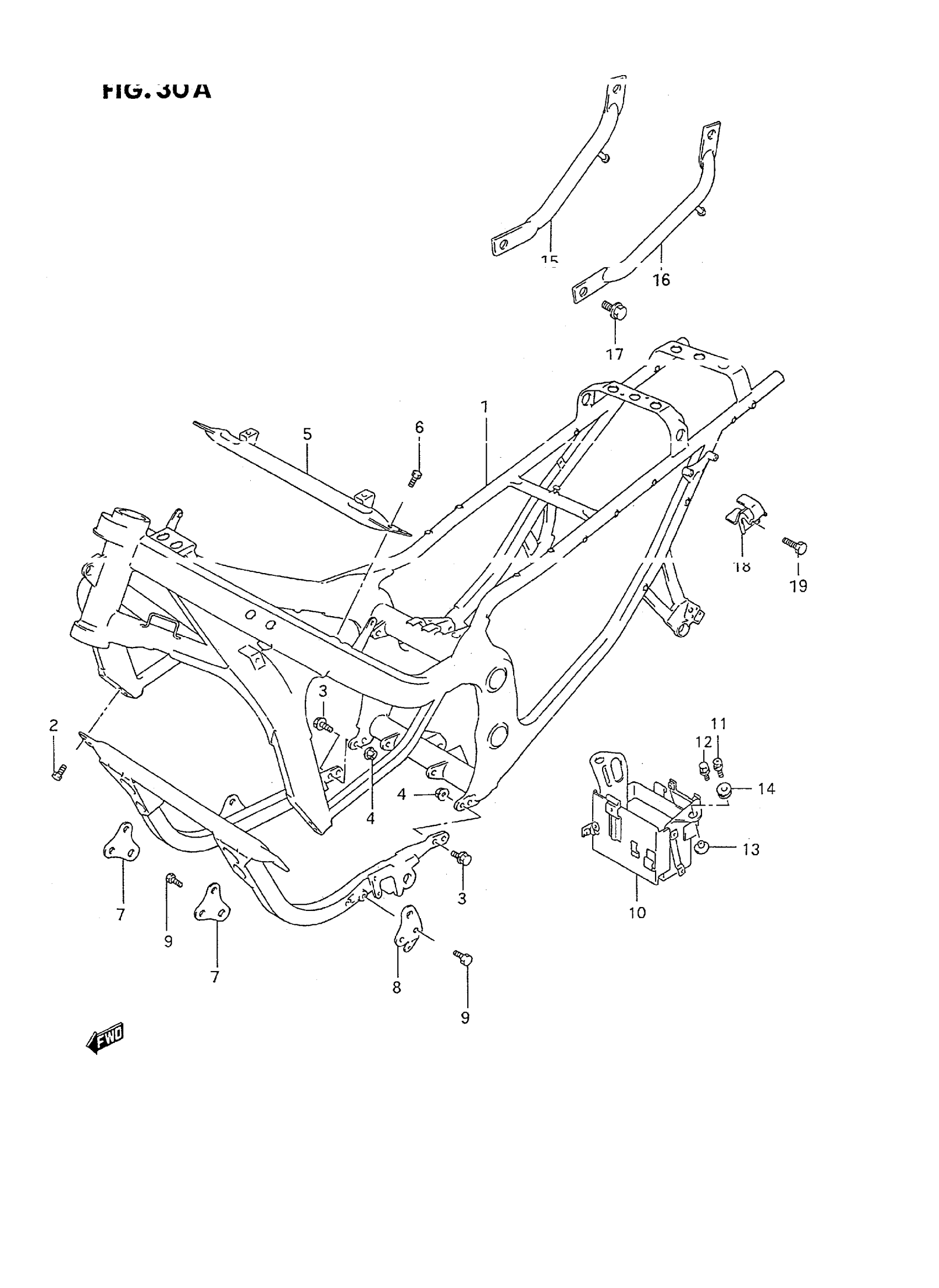

Find the part on the Frame diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET (BLACK) | Includes Item(s) 2 - 4

41101-19830-019

1
Out of stock

2

BOLT This part replaces 01570-08253.

01570-0825A

4
Out of stock

3

BOLT This part replaces 01550-08303.

01550-0830A

4
Out of stock

4

NUT This part replaces 08319-31085.

08319-3108A

4
Out of stock

5

TUBE, FRAME BRIGE

41750-34C00

1
Out of stock

6

BOLT

09103-08266

4
Out of stock

7

PLATE, NO.1 (BLACK)

41911-19C00-019

2
Out of stock

8

PLATE, NO.2 (BLACK) | MODEL R This part replaces 41940-19C00-019.

41940-20C00-019

1
Out of stock

8

PLATE, NO.2 (BLACK) | MODEL S/T

41940-20C00-019

1
Out of stock

9

BOLT This part replaces 01570-08163.

01570-0816A

6
Out of stock

10

HOLDER, BATTERY

41540-19C02

1
Out of stock

11

BOLT | MODEL R This part replaces 09137-06014.

01570-0630A

2
Out of stock

12

BOLT | MODEL S/T This part replaces 01570-06303.

01570-0630A

2
Out of stock

13

SPACER This part replaces 41570-47D00.

09169-06065

2
Out of stock

14

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock

15

GRIP, REAR RH

43970-19C02

1
Out of stock

16

GRIP, REAR LH

43980-19C02

1
Out of stock

17

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

18

HOLDER, HELMET

95720-20C00

2
Out of stock

19

BOLT This part replaces 01570-06163.

01570-0616A

2
Out of stock
