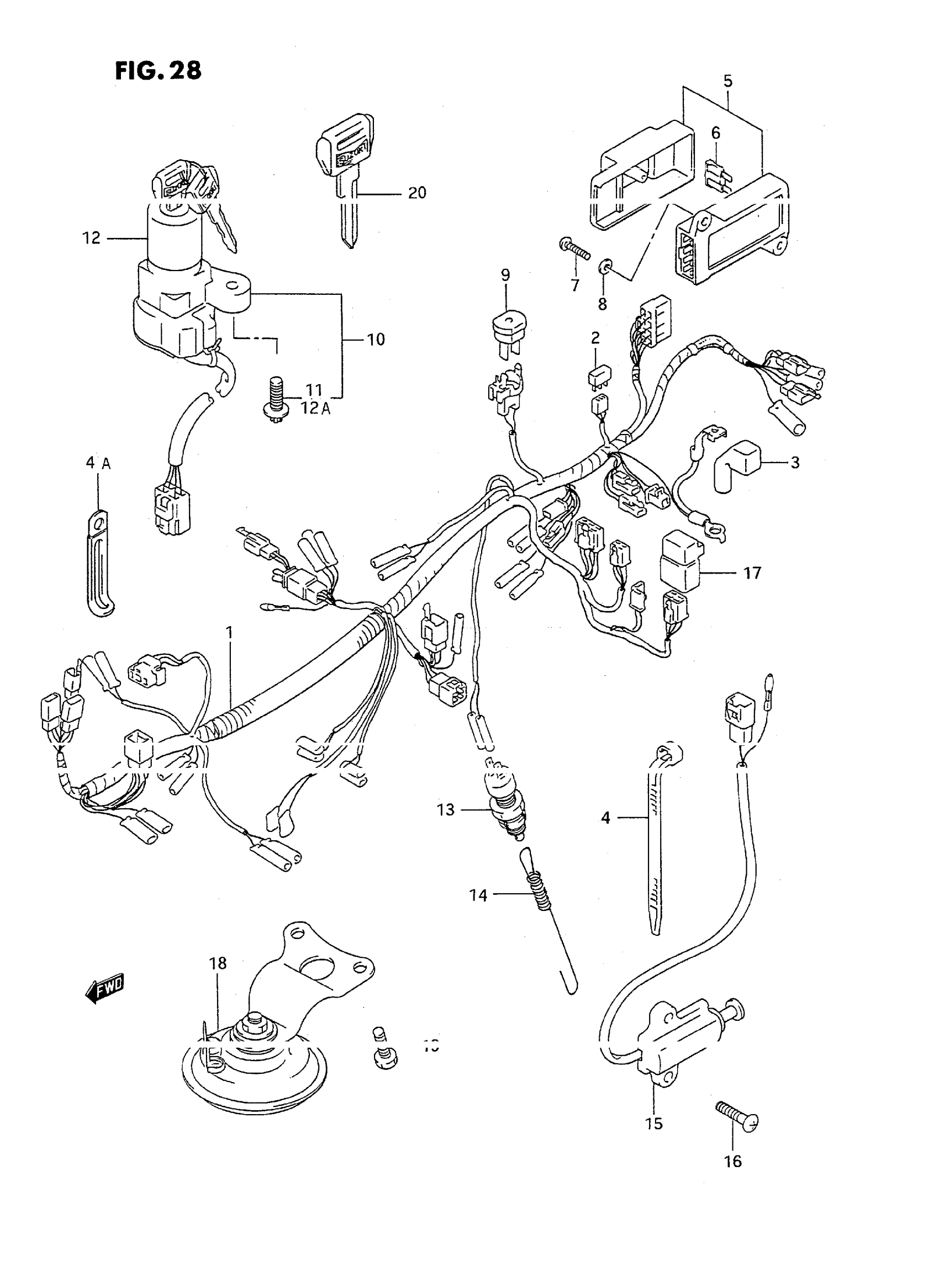

Find the part on the Wiring Harness diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 36610-19C01.

36610-19C02

1
Out of stock

1

HARNESS, WIRING | MODEL K This part replaces 36610-19C10.

36610-19C12

1
Out of stock

1

HARNESS, WIRING | MODEL L This part replaces 36610-19C11.

36610-19C12

1
Out of stock

1

HARNESS, WIRING | MODEL M/N

36610-19C12

1
Out of stock

1

HARNESS, WIRING | MODEL P/R/S

36610-19C40

1
Out of stock

1

HARNESS, WIRING | MODEL T; Includes Item(s) 2 - 3

36610-19C60

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CAP, BATTERY (+) TERMINAL | MODEL J/K/P/R This part replaces 33624-27A00.

33624-43500

1
Out of stock

3

CAP, BATTERY PLUG TERMINAL | MODEL S/T

33624-43500

1
Out of stock

4

CLAMP

09407-10403

1
Out of stock

4

CLAMP (L:95)

09407-11401

3
Out of stock

4

CLAMP (L:125)

09407-14403

11
Out of stock

4

CLAMP This part replaces 09407-18403.

09407-18402

7
Out of stock

4A

CLAMP(L:80) | MODEL K/L This part replaces 09404-06426.

09404-06036

1
Out of stock

4A

CLAMP (L:60)

09404-06429

1
Out of stock

5

BOX ASSY, FUSE | MODEL J/K/L/M/N This part replaces 36740-05A01.

36740-27A00

1
Out of stock

5

FUSE BOX ASSY | MODEL P/R/S/T; Includes Item(s) 6 - 6

36740-19C00

1
Out of stock

6

FUSE (10A) | MODEL J/K/L/M/NMODEL P/R/S/T

09481-10101

5
Out of stock

6

.FUSE (25A) | MODEL P/R/S/T This part replaces 09481-25101.

09481-25103

1
Out of stock

7

2

$2.85

In stock

7

SCREW | MODEL R/S/T This part replaces 02142-06203.

02142-0620A

2
Out of stock

8

WASHER

08322-01067

2
Out of stock

9

BREAKER ASSY, CIRCUIT | MODEL J/K/L/M/N

36750-05A00

1
Out of stock

10

LOCK ASSY, STEERING | MODEL J/K/L; Includes Item(s) 11 This part replaces 37100-17C00.

37100-26D03

1
Out of stock

11

BOLT | MODEL J/K/L

09139-06026

2
Out of stock

12

LOCK ASSY, STEERING | MODEL M This part replaces 37100-17C02.

37100-26D03

1
Out of stock

12

LOCK ASSY, STEERING | MODEL N/P This part replaces 37100-33D00.

37100-26D03

1
Out of stock

12

LOCK ASSY, STEERING | MODEL R/S/T This part replaces 37100-26D02.

37100-26D03

1
Out of stock

12A

BOLT | MODEL M/N/P/R/S/T

09139-06026

2
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

14

SPRING

09443-06005

1
Out of stock

15

SWITCH ASSY,SID | MODEL J/K This part replaces 37840-20A10.

37840-44X52

1
Out of stock

15

SWITCH ASSY,SID | MODEL L/M/N/P/R This part replaces 37840-20A11.

37840-44X52

1
Out of stock

15

SWITCH ASSY,SID | MODEL S/T This part replaces 37840-44X50.

37840-44X52

1
Out of stock

16

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

2
Out of stock

17

RELAY ASSY, SIDE STAND | MODEL J/K/L/M/N/P/R This part replaces 38740-24B10.

38740-24X50

1
Out of stock

17

RELAY ASSY, SIDE STAND | MODEL S/T

38740-24X50

1
Out of stock

18

HORN ASSY | MODEL J/K/L/M/N This part replaces 38500-19C00.

38500-19C01

1
Out of stock

18

HORN ASSY | MODEL P/R/S/T

38500-19C01

1
Out of stock

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01117-06165.

01550-0616A

2
Out of stock

19

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

2
Out of stock

20

KEY, BLANK | OPT,MODEL J/K/L/M This part replaces 37146-03A80.

37146-26D10

1
Out of stock

20

KEY, BLANK | OPT,MODEL N/P/R/S/T

37146-26D10

1
Out of stock
