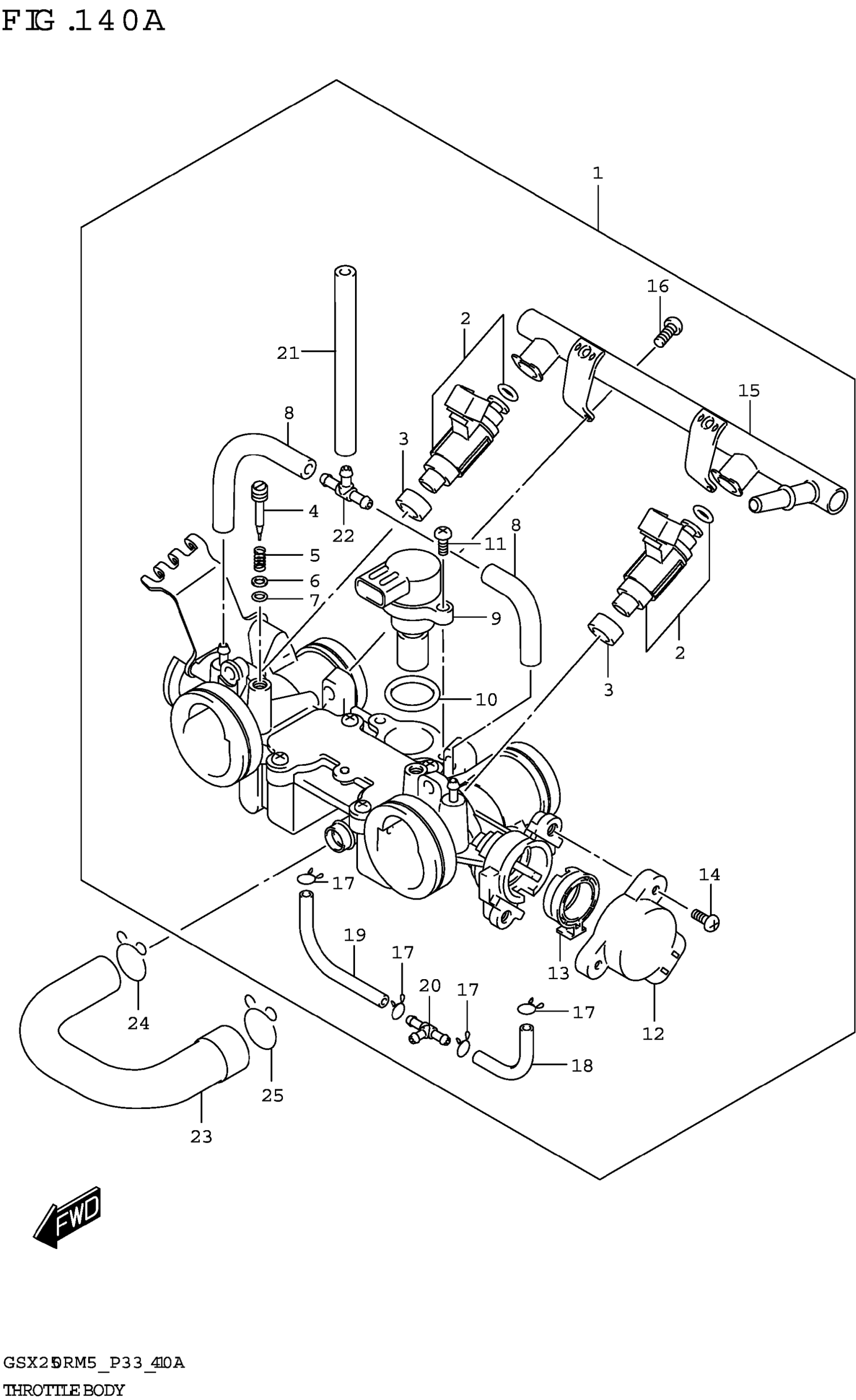

Suzuki GSX250RRLJM5 (2025) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13400-48H42

$1,479.27

2

.INJECTOR ASSY

15710-48H00

Unavailable

3

SEAL

15722-29G00

$10.01

4

.ADJUSTER

13279-13G10

Unavailable

5

SPRING,THROTTLE SCREW

13268-48700

$3.97

6

WASHER

13606-47A00

$3.70

7

O-RING

13295-29901

$3.97

8

.HOSE (3.2X7.4X90)

13681-39F01-090

$32.00

9

.MOTOR ASSY

18117-14J01

$436.22

10

.O-RING

13679-37H00

$8.21

11

SCREW This part replaces 13602-05A40.

02112-0412A

$1.24

12

.SENSOR ASSY

13580-48H01

$116.35

13

.RING

13311-48H00

Unavailable

14

.SCREW

13605-02F00

$3.50

15

.DELIVERY PIPE

15730-48H00

Unavailable

16

.SCREW

13602-06148

$4.08

17

CLIP

13671-29G00

Unavailable

18

.HOSE

13683-48H20

Unavailable

19

.HOSE

13683-48H30

Unavailable

20

NIPPLE

13685-29G00

Unavailable

21

HOSE (L:425)

13683-10F61

$19.30

22

3WAY,VACUUM HOSE

13685-02FA0

$7.95

23

HOSE,ISC VALVE

13697-48H00

Unavailable

24

CLIP (ID:15.5)

09401-15101

$2.28

25

CLIP

09401-18101

Unavailable
