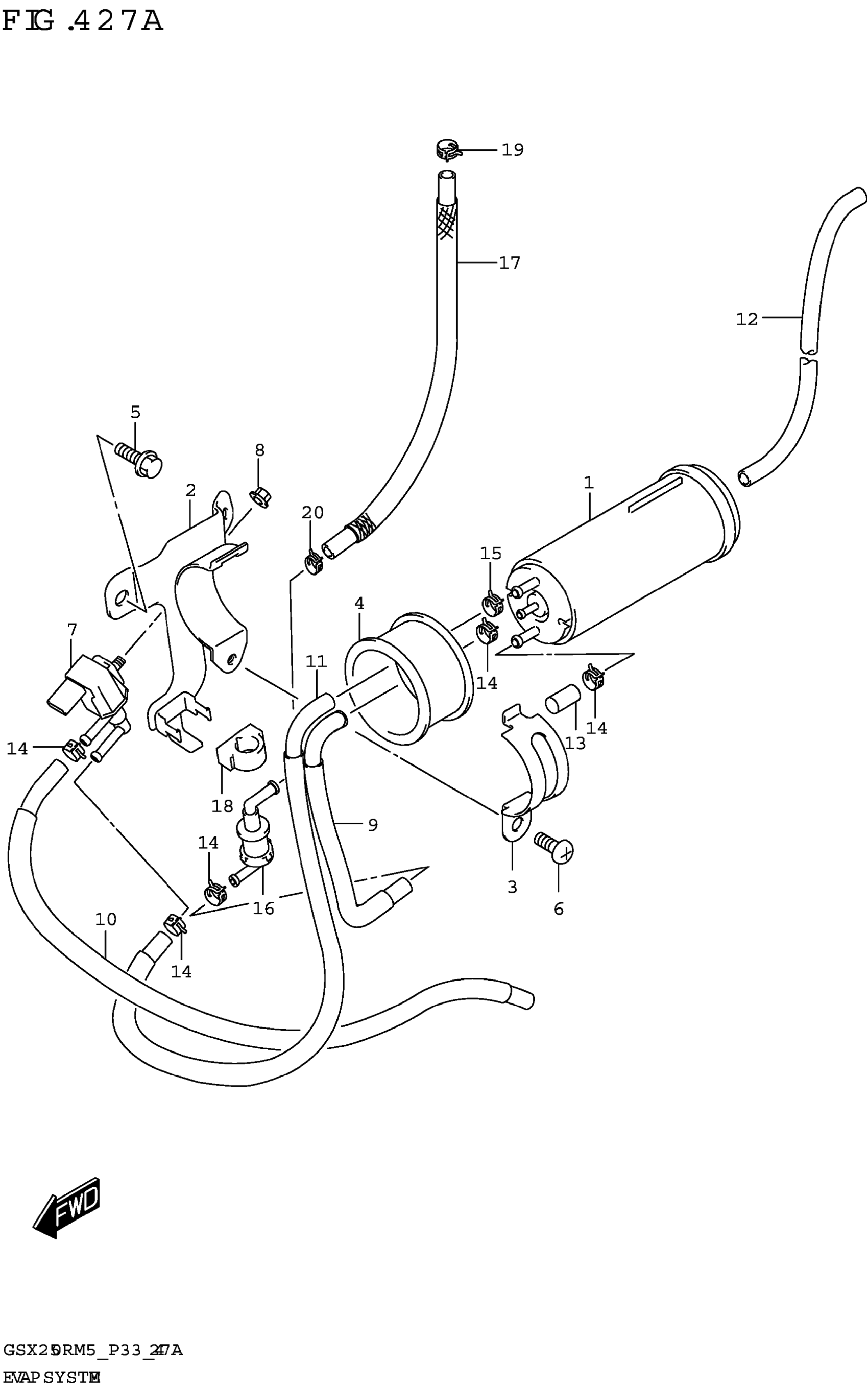

Suzuki GSX250RRLJM5 (2025) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL

18560-48H00

$65.53

2

BRACKET,CANISTER

18570-48H00

Unavailable

3

HOLDER,CANISTER

18578-48H00

Unavailable

4

CUSHION CANISTER

44883-26E00

Unavailable

5

BOLT

01547-0616A

$2.01

6

SCREW

02142-0610A

$1.38

7

VALVE,CANISTER PURGE

18117-20K00

$60.68

8

NUT (6X12)

08316-1006A

$2.19

9

HOSE,CANISTER INLET

18561-20K10

$71.43

10

HOSE,PURGE VALVE

18563-20K10

$130.70

11

HOSE,CANISTER PURGE

18562-20K10

$80.53

12

HOSE,CANISTER AIR

18567-20K00

$11.58

13

CAP

09251-07006

$2.05

14

CLIP

09401-10L01

Unavailable

15

CLIP

09401-12L04

Unavailable

16

VALVE,FUEL TANK BREATHER

44240-13H00

$46.42

17

HOSE,TANK & BRTHR VALVE

44434-48H20

Unavailable

18-1

CUSHION,FUEL TANK BRTHR VALVE

44894-48H00

Unavailable

18-2

CUSHION,FUEL TANK BRTHR VALVE

44894-48H10

$1.78

19

CLIP

09401-10L01

Unavailable

20

CLIP

09401-10L01

Unavailable
