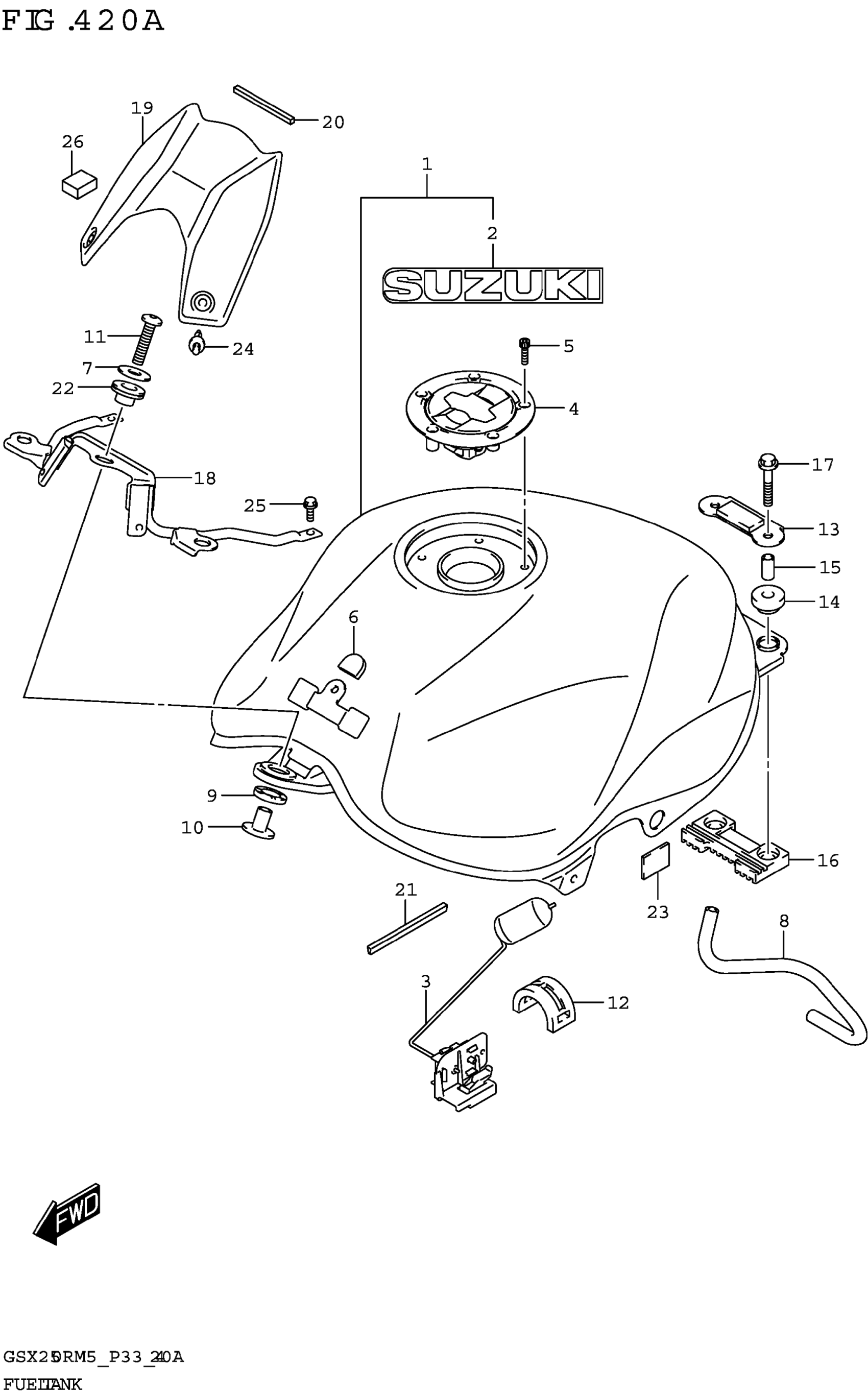

Suzuki GSX250RRLJM5 (2025) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK)

44100-20KA0-YAY

$704.62

2

.EMBLEM,SUZUKI (WHITE,BLACK)

68111-20K00-BHM

$8.85

3

GAUGE ASSY,FUEL LEVEL SENDER

34810-48H01

$91.57

4

CAP ASSY,FUEL TANK FILLER

44200-17KD1

Unavailable

5

BOLT (5X20)

44211-48H00

$2.58

6-1

CUSHION,FUEL TANK COVER

44276-48H00

$1.62

6-2

CUSHION,FUEL TANK COVER

44276-48H10

Unavailable

7

WASHER,FUEL TANK FRONT

44262-20K00

$3.48

8

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

9

CUSHION,FUEL TANK FR LWR

44511-20K01

$4.48

10

SPACER,FUEL TANK FRONT

44512-20K00

$6.02

11

SCREW,FUEL TANK FRONT

44513-48H10

$6.47

12

CUSHION,FUEL TANK SIDE

44541-48H00

$6.35

13

PLATE,FUEL TANK REAR

44540-20K00

$16.70

14

CUSHION,FUEL TANK RR UPR

44543-20K00

$5.38

15

SPACER,FUEL TANK RR

44544-48H00

Unavailable

16

CUSHION,FUEL TANK RR LWR

44545-20K01

$8.41

17

BOLT

01550-0635A

$2.31

18-1

BRACE,FUEL TANK COVER

44520-20K00

$63.02

18-2

BRACE,FUEL TANK COVER

44520-20K10

$46.05

19

COVER,FUEL TANK CENTER

44191-20K00

$26.55

20

CUSHION,FUEL TANK COVER CTR

44277-20K00

$6.75

21

MOLDING,FUEL TANK

68241-20K01

$1.47

22

CUSHION,FUEL TANK FR UPR

44515-20K01

$3.98

23

FASTENER,FRAME COVER

47351-20K01

$12.18

24

CLIP

48292-32GH0

$2.93

25

BOLT

01550-0612A

$1.97

26

CUSHION (20X25X11)

56327-48H00

$3.08
