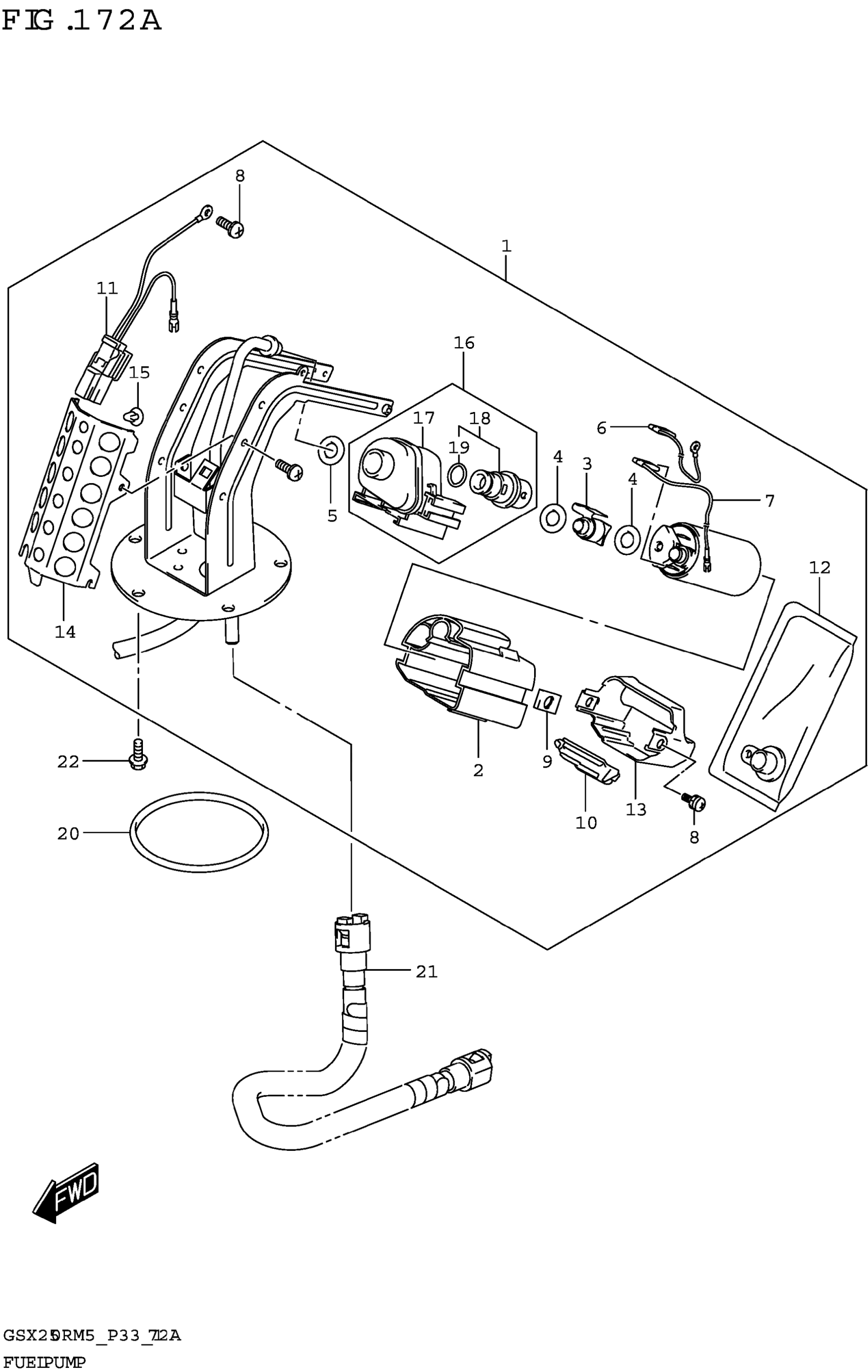

Suzuki GSX250RRLJM5 (2025) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-48H02

$552.20

2

.CUP

15111-18H00

$47.88

3

.JOINT

15112-05H00

$31.73

4

.O-RING

15113-05H00

$18.81

5

.O-RING

15113-35F00

$8.15

6

.WIRE,EARTH

15114-05H01

Unavailable

7

.WIRE,LEAD

15115-05H01

Unavailable

8

.SCREW

15116-10F00

$6.30

9

.STOPPER

15117-05H00

$8.52

10

.COVER,CUP

15118-18H00

$34.65

11

.HARNESS,GAUGE

15246-18H01

$80.77

12

.STRAINER

15420-48H11

$37.03

13

.VESSEL

15426-48H01

Unavailable

14

.GUARD

15581-48H00

Unavailable

15

.STOPPER

15582-18H00

Unavailable

16

.REGULATOR ASSY,FUEL

15610-48H00

$210.87

17

..FILTER

15410-48H00

Unavailable

18

..REGULATOR

15610-48H10

Unavailable

19

..O-RING

15113-48H00

$19.15

20

O-RING

15201-48H00

$24.30

21

HOSE,FUEL

15810-48H00

Unavailable

22

BOLT

01547-0612A

$2.01
