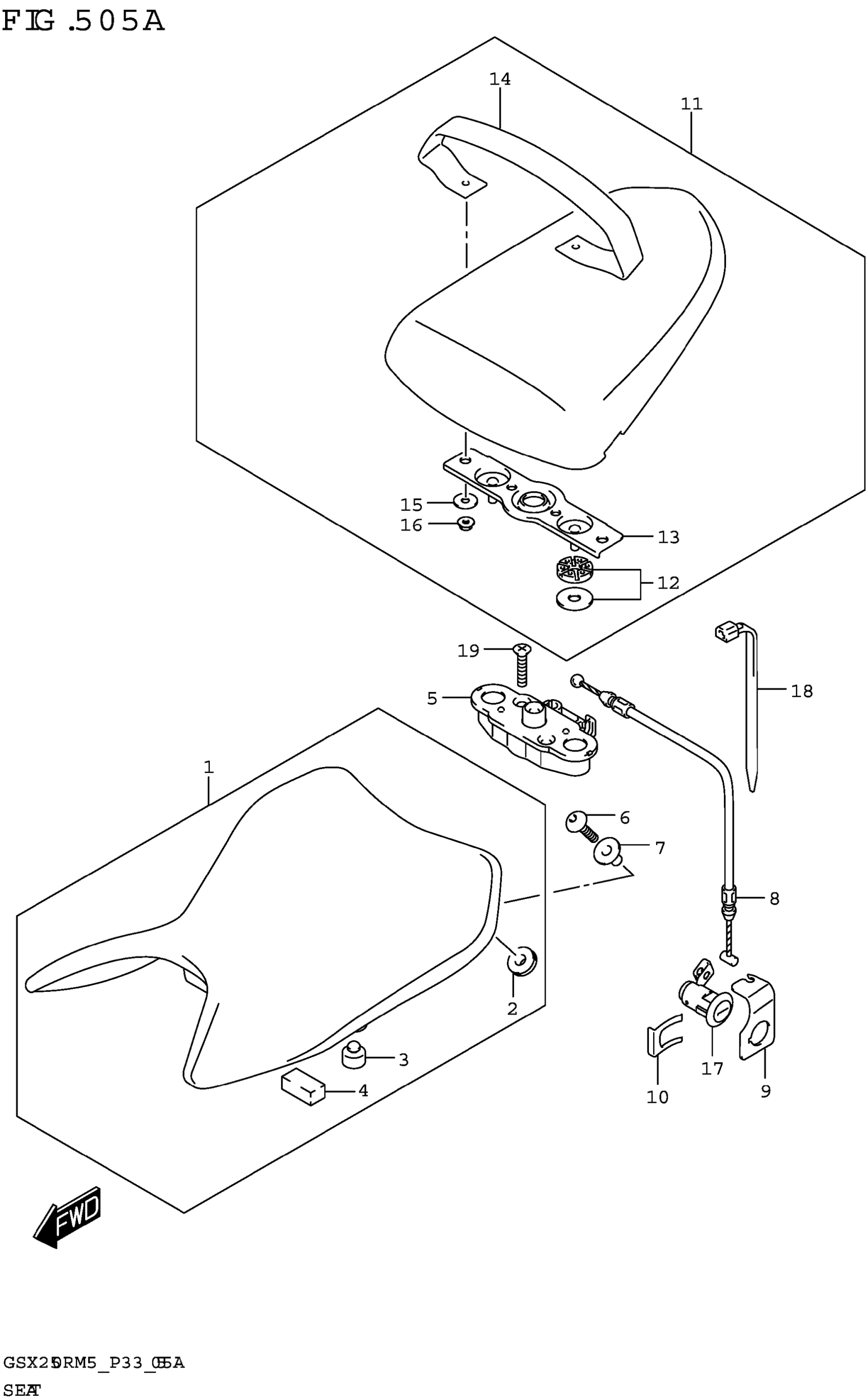

Suzuki GSX250RRLJM5 (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-20K01-QFE

$243.85

2

.CUSHION,SEAT MOUNT

45148-04K00

$7.30

3

.CUSHION

45148-20E00

$5.90

4

.CUSHION

45149-20K00

$4.77

5

BRACKET,SEAT SUPPORT

45220-45F30

$29.88

6

SCREW,SEAT

45241-20K00

$4.77

7

SPACER,SEAT

45249-20K10

$5.73

8

CABLE,SEAT LOCK

45280-20K00

$9.37

9

GUIDE,SEAT LOCK CABLE

45288-09K00

$6.75

10

PLATE,SEAT LOCK NO.2

45289-09GA0

Unavailable

11

SEAT ASSY (BLACK)

45300-20K02-QFE

$202.98

12

.CUSHION

45210-21K00

$2.60

13

.STRIKER,SEAT LOCK

45290-20K00

$26.55

14

.BAND,PILLION SEAT GRIP

45380-20K01

$8.75

15

.WASHER (6.5X20X1.6)

09160-06088

$1.67

16

NUT (6X12)

08316-1006A

$2.19

17

LOCK SET,SEAT

95700-14810

$98.21

18

CLAMP (L:165)

09407-18402

$2.21

19

SCREW

02122-0630A

$1.76
