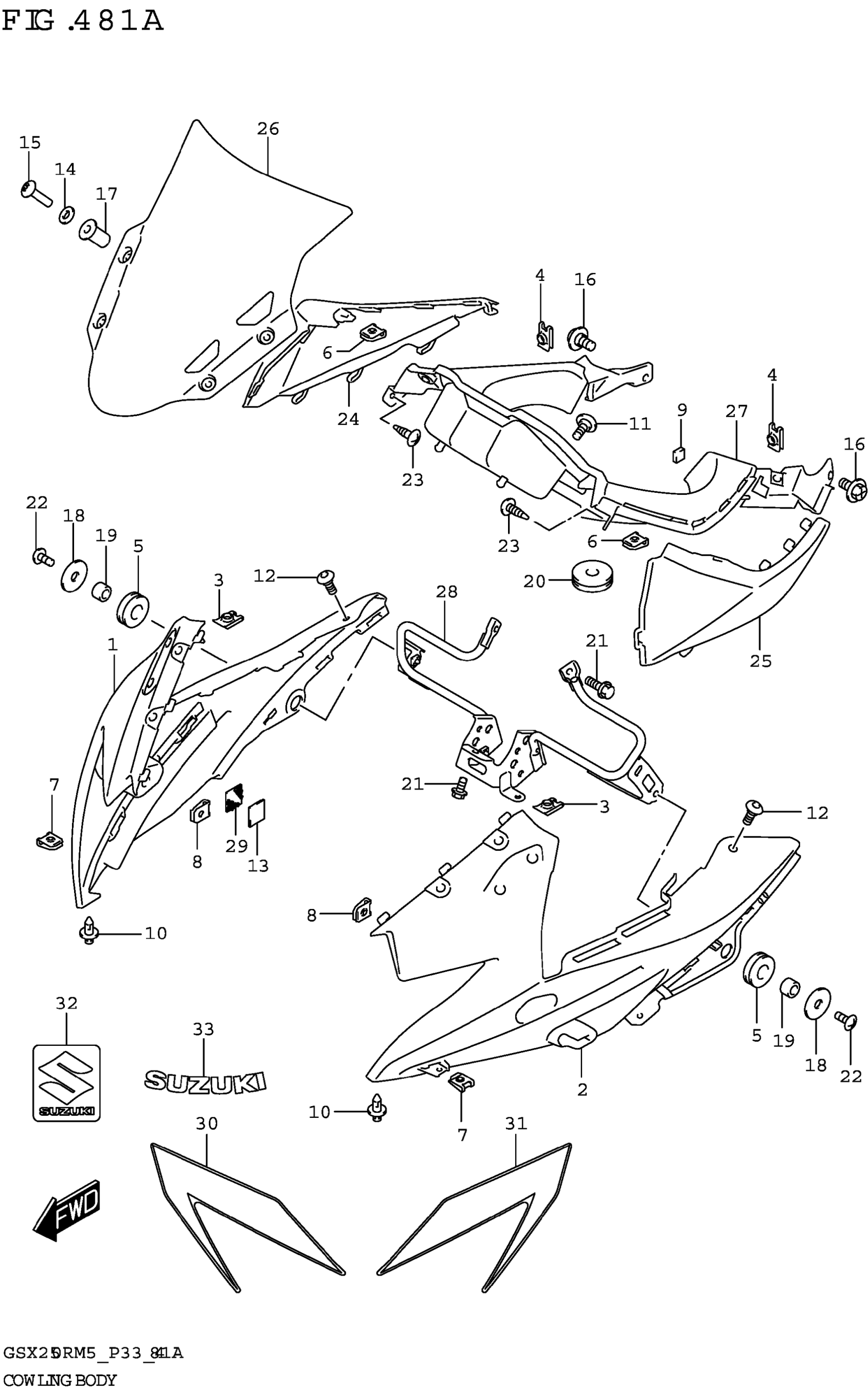

Suzuki GSX250RRLJM5 (2025) COWLING BODY Diagram

#

Description
Price

1

COWLING,BODY,R (BLACK)

94411-20K00-YAY

$125.72

2

COWLING,BODY,L (BLACK)

94421-20K00-YAY

$123.38

3

NUT,HEADLAMP

35155-48H00

$3.30

4

NUT,HEADLAMP

35155-48H00

$3.30

5

CUSHION,FRAME COVER

47161-48H10

$2.02

6

NUT

47399-48H00

$2.68

7

NUT

47399-48H00

$2.68

8

NUT

47399-48H00

$2.68

9

CUSHION,FRAME SIDE FRONT

47814-20K00

$3.48

10

CLIP

48292-32GH0

$2.93

11

SCREW (5X13)

94492-20K00

$2.67

12

SCREW (5X13)

94492-20K00

$2.67

13

FASTENER,BODY COWLING

94491-20K01

$3.62

14

WASHER,WINDSCREEN

94613-20K00

$1.78

15

SCREW,WINDSCREEN

94615-20K00

$2.00

16

BOLT (6X12)

09111-06107

$2.66

17-1

NUT,WINDSCREEN

94618-48H10

$4.61

17-2

NUT,WINDSCREEN

94618-48H20

$5.73

18

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.89

19

SPACER (6.5X10X7)

09180-06283

$1.89

20

CUSHION (8X26X7)

09320-08513

$2.68

21

BOLT

01550-0616A

$1.97

22

SCREW

02142-0620A

$1.38

23

SCREW

03541-0512A

$1.37

24

COVER,BODY COWL,R

94412-20K00

$10.55

25

COVER,BODY COWL,L

94422-20K00

$10.80

26

WINDSCREEN

94611-20K10

$482.73

27

PANEL,METER

94641-20K00

$41.57

28

BRACE,FRAME SIDE COVER

94520-20K00

$63.00

29

FASTENER,BODY COWLING

94493-20K00

$6.02

30

TAPE,BODY COWLING,R (RED,BLAC | )

68121-20K50-BKJ

$4.57

31

TAPE,BODY COWLING,L (RED,BLAC | )

68122-20K50-BKJ

$4.57

32

EMBLEM,S

68281-20K00

$6.75

33

EMBLEM,SUZUKI (SILVER)

68861-20E70-YD8

$3.13
