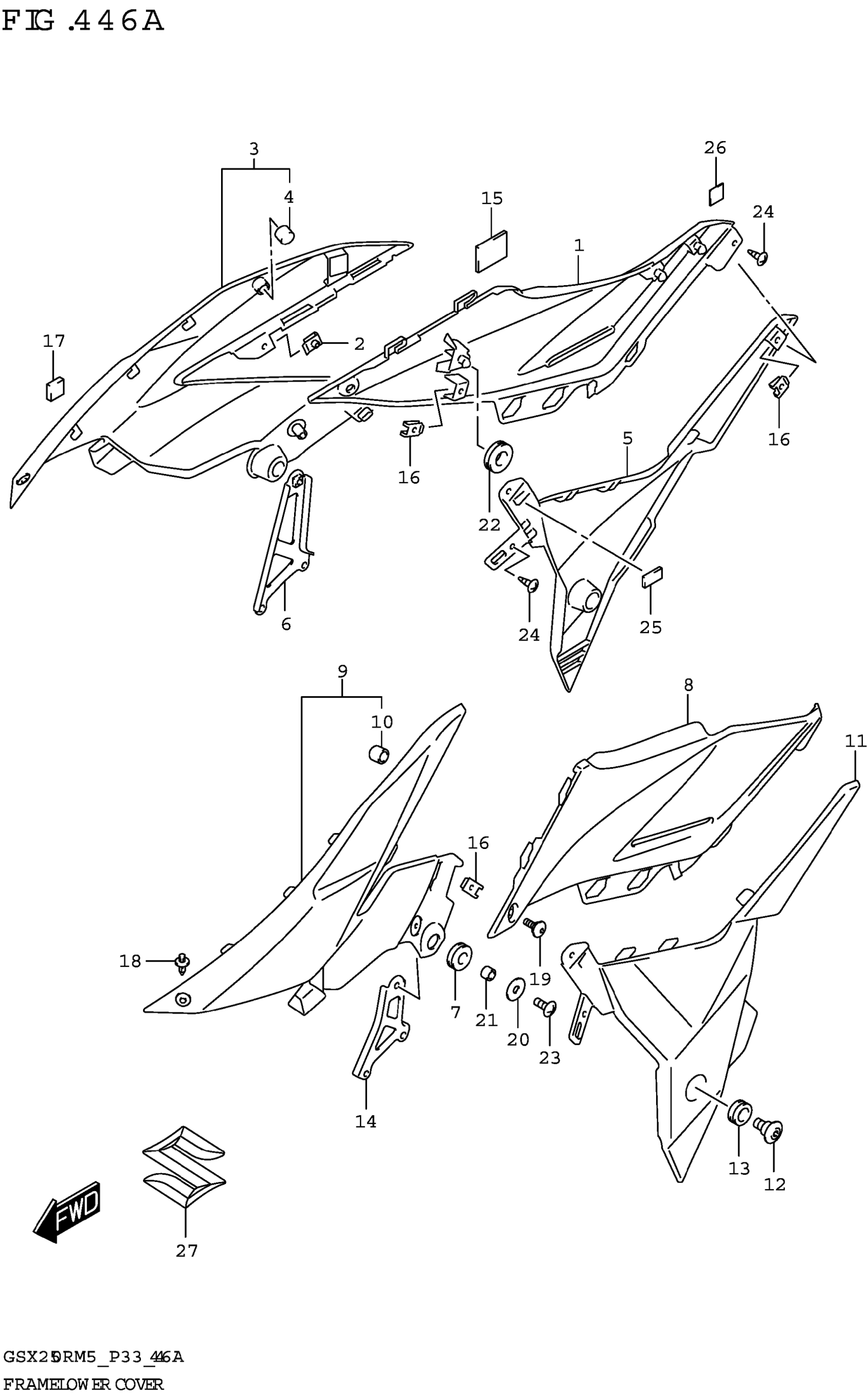

Suzuki GSX250RRLJM5 (2025) FRAME LOWER COVER Diagram

#

Description
Price

1

COVER,FRAME SIDE,R (RED)

47121-20K00-YYW

$96.00

2

NUT,HEADLAMP

35155-48H00

$3.30

3

COVER SET,FRM SIDE FR,R

47100-20K01

$52.30

4

.CUSHION

47112-21K00

$1.97

5

COVER,FRAME SIDE LOWER,R

47123-20K00

$65.53

6

BRACKET,FRAME COVER,R

47130-20K00

$20.32

7

CUSHION,FRAME COVER

47161-48H10

$2.02

8

COVER,FRAME SIDE,L (RED)

47221-20K00-YYW

$96.00

9

COVER SET,FRM SIDE FR,L

47200-20K01

$52.30

10

.CUSHION

47112-21K00

$1.97

11

COVER,FRAME SIDE LOWER,L

47223-20K00

$65.53

12

BOLT

47225-20K01

$3.15

13

CUSHION,FRAME COVER LOWER

47226-20K00

$2.80

14

BRACKET,FRAME COVER,L

47230-20K00

$14.63

15

FASTENER,FRAME COVER

47351-20K01

$12.18

16

NUT

47399-48H00

$2.68

17

CUSHION,FRAME SIDE FRONT

47814-20K00

$3.48

18

CLIP

48292-32GH0

$2.93

19

SCREW (5X13)

94492-20K00

$2.67

20

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.89

21

SPACER (6.5X10X7)

09180-06283

$1.89

22

CUSHION (8X26X7)

09320-08513

$2.68

23

SCREW

02142-0616A

$1.37

24

SCREW

03541-0512A

$1.37

25

CUSHION,COVER UPR

47846-48H00

$2.22

26

.CUSHION (15X15X1)

94429-20K00

$1.73

27

EMBLEM,S

68111-29J00

$13.73
