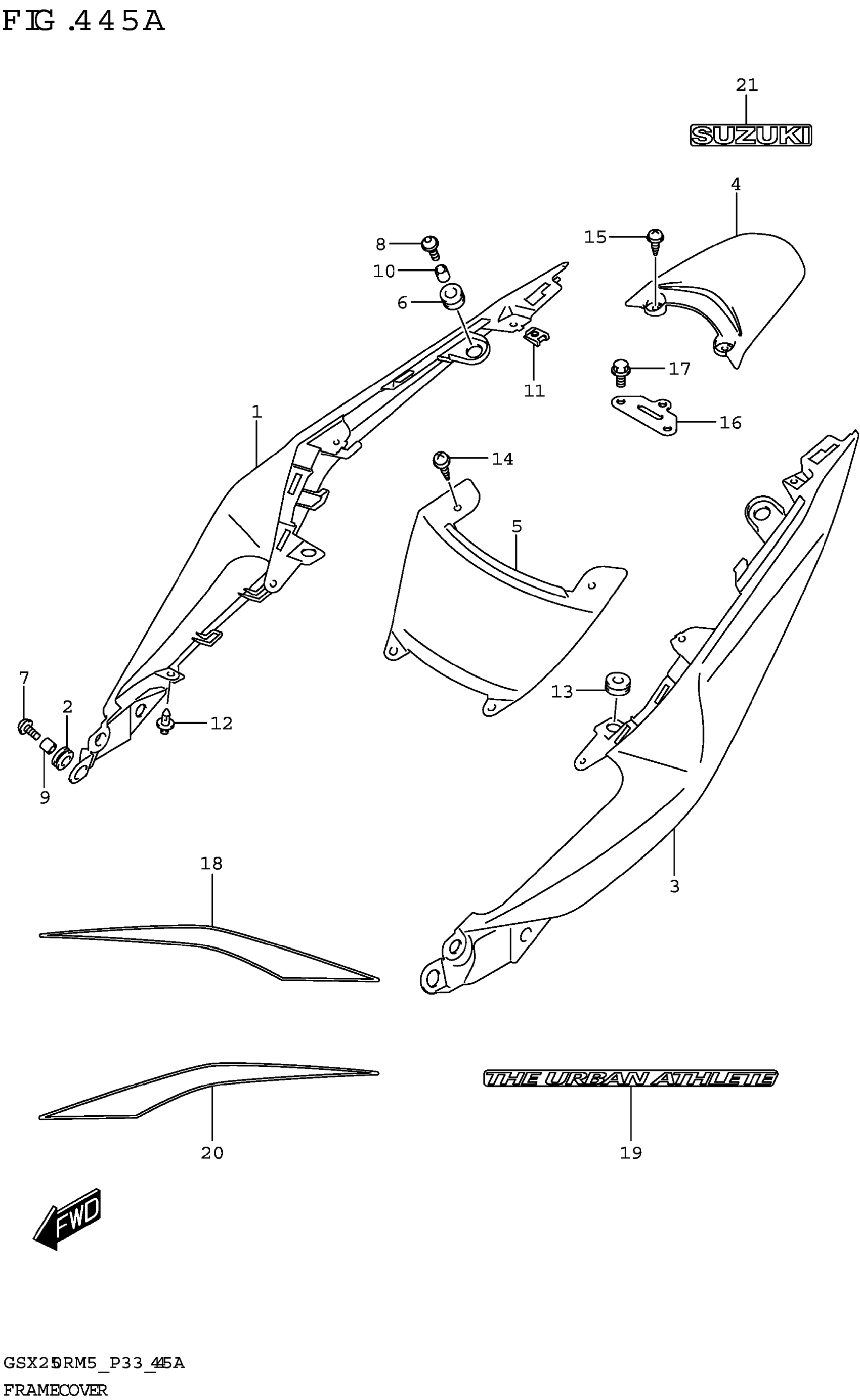

Suzuki GSX250RRLJM5 (2025) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R (RED)

47111-20K01-YYW

$102.12

2

CUSHION,FRAME COVER

47161-48H10

$2.02

3

COVER,FRAME,L (RED)

47211-20K01-YYW

$110.28

4

COVER,FRAME CENTER

47311-20K00

$17.02

5

COVER,FRAME CENTER FRONT

47312-20K01

Unavailable

6

.CUSHION,FRAME COVER,R

47321-20K01

$2.92

7

SCREW,FRAME COVER FR

47331-20K00

$2.67

8

SCREW,FRAME COVER FR

47331-20K00

$2.67

9

SPACER,FRAME COVER FR

47332-20K00

$2.73

10

SPACER,FRAME COVER FR

47332-20K00

$2.73

11

NUT

47399-48H00

$2.68

12

CLIP

48292-32GH0

$2.93

13

CUSHION (8X26X7)

09320-08513

$2.68

14

SCREW

03541-0512A

$1.37

15

SCREW

03541-0512B

$1.77

16

BRACKET,FRAME COVER CTR

47810-20K00

$9.37

17

BOLT

01550-0612B

$2.38

18

TAPE,FRAME COVER,R (RED,BLACK

68132-20K30-BKJ

$3.85

19

EMBLEM,FRAME COVER (GRAY)

68136-20K00-17U

$2.98

20

TAPE,FRAME COVER,L (RED,BLACK

68142-20K30-BKJ

$3.85

21

.EMBLEM,SUZUKI (SILVER)

68181-45H10-YD8

$2.45
