2025 Suzuki GSX250RRLJM5 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Suzuki GSX250RRLJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

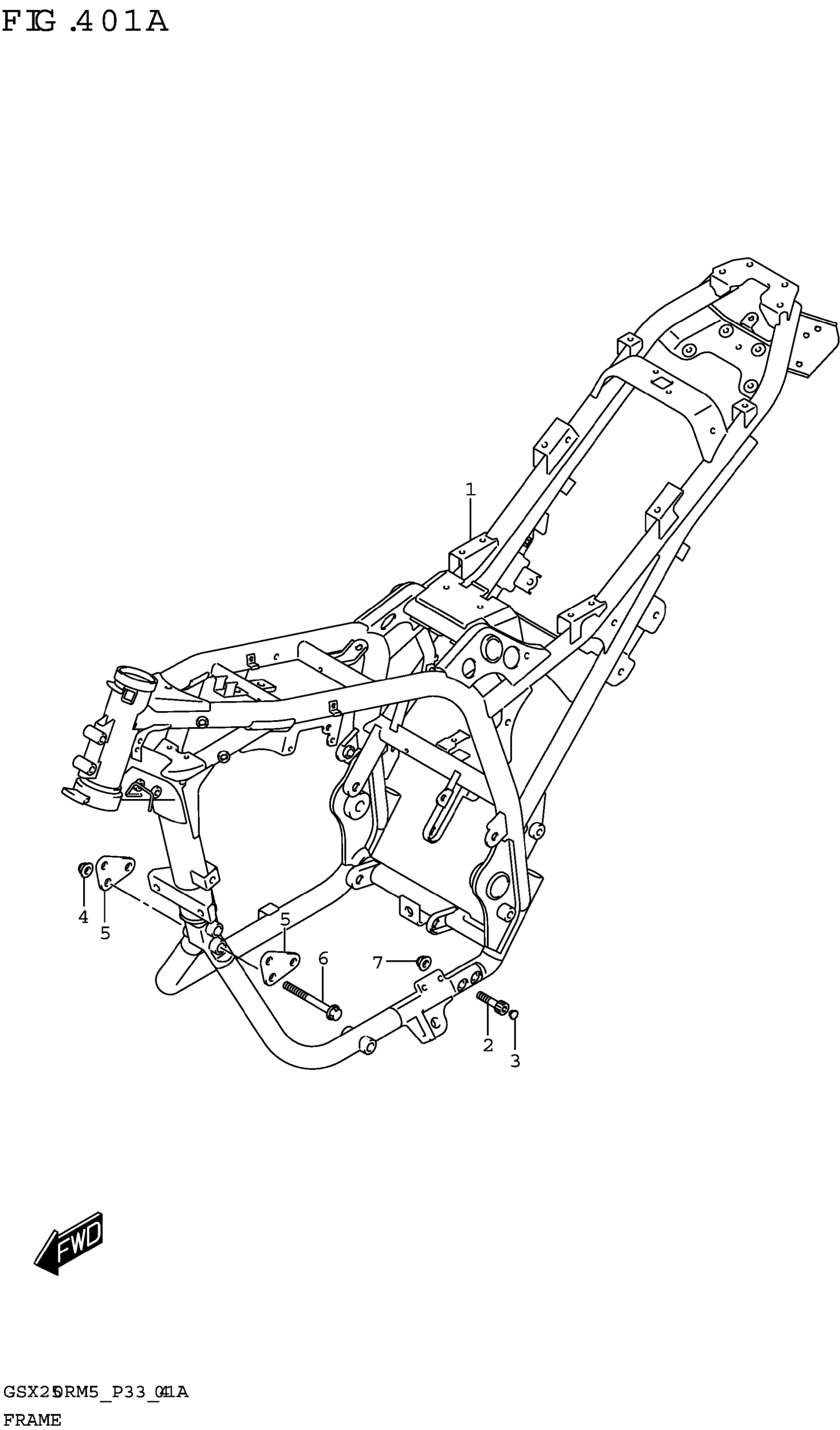

2025 Suzuki GSX250RRLJM5 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

41100-20K10

1
Out of stock

2

BOLT (10X37)

09106-10068

2
Out of stock

3

CAP,FRAME LOWER TUBE (OD:12)

41498-48H00

2
Out of stock

4

NUT

08319-3110B

2
Out of stock

5

BRACKET,ENG MTG FR

41942-48H10

—
Out of stock

6

BOLT (10X85)

09103-10445

2
Out of stock

7

NUT

08319-3110B

2
Out of stock
