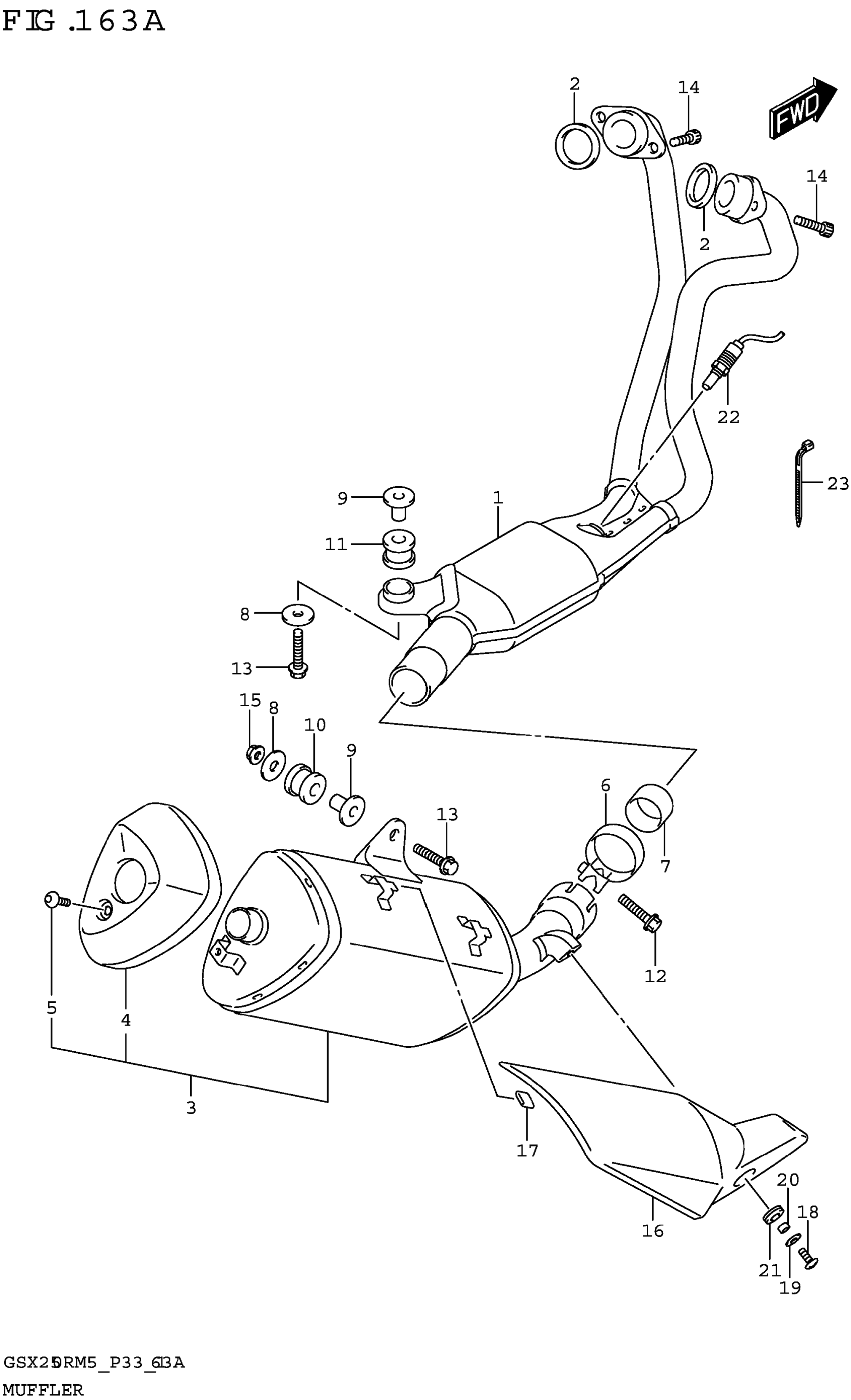

Find the part on the Muffler diagram for your 2025 Suzuki GSX250RRLJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki GSX250RRLJM5 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST

14100-20K20

—
Out of stock

2

.GASKET,EXHAUST PIPE

14181-46E20

2
Out of stock

3

BODY,MUFFLER

14310-20K00-H01

1
Out of stock

4

.BODY,MUF TAIL OUTER

14313-20K00

1
Out of stock

5

.SCREW (6X14)

09139-06167

1
Out of stock

6

CLAMP,MUF CONNECTOR

14459-20K01

1
Out of stock

7

CONNECTOR,MUF JT

14771-20K00

1
Out of stock

8

WASHER (8.5X30X1.6)

09160-08149

1
Out of stock

9

SPACER

09180-08L02

1
Out of stock

10

CUSHION

09320-12L04

1
Out of stock

11

CUSHION

09320-12088

1
Out of stock

12

BOLT (8X35)

01550-0835A

1
Out of stock

13

BOLT

01550-0840A

1
Out of stock

14

BOLT

07130-0830A

4
Out of stock

15

NUT

08316-1008A

1
Out of stock

16

COVER,MUF

14780-20K00

1
Out of stock

17

GROMMET

14795-10FA0

2
Out of stock

18

.SCREW (6X14)

09139-06167

1
Out of stock

19

WASHER (6.5X18.0X1.0)

09160-06164

1
Out of stock

20

SPACER (6.5X9X5)

09180-06365

1
Out of stock

21

CUSHION

09320-08082

1
Out of stock

22

SENSOR,OXYGEN

18213-04K00

1
Out of stock

23

CLAMP,WIRING HARNESS (L:125)

36990-32G20

2
Out of stock
