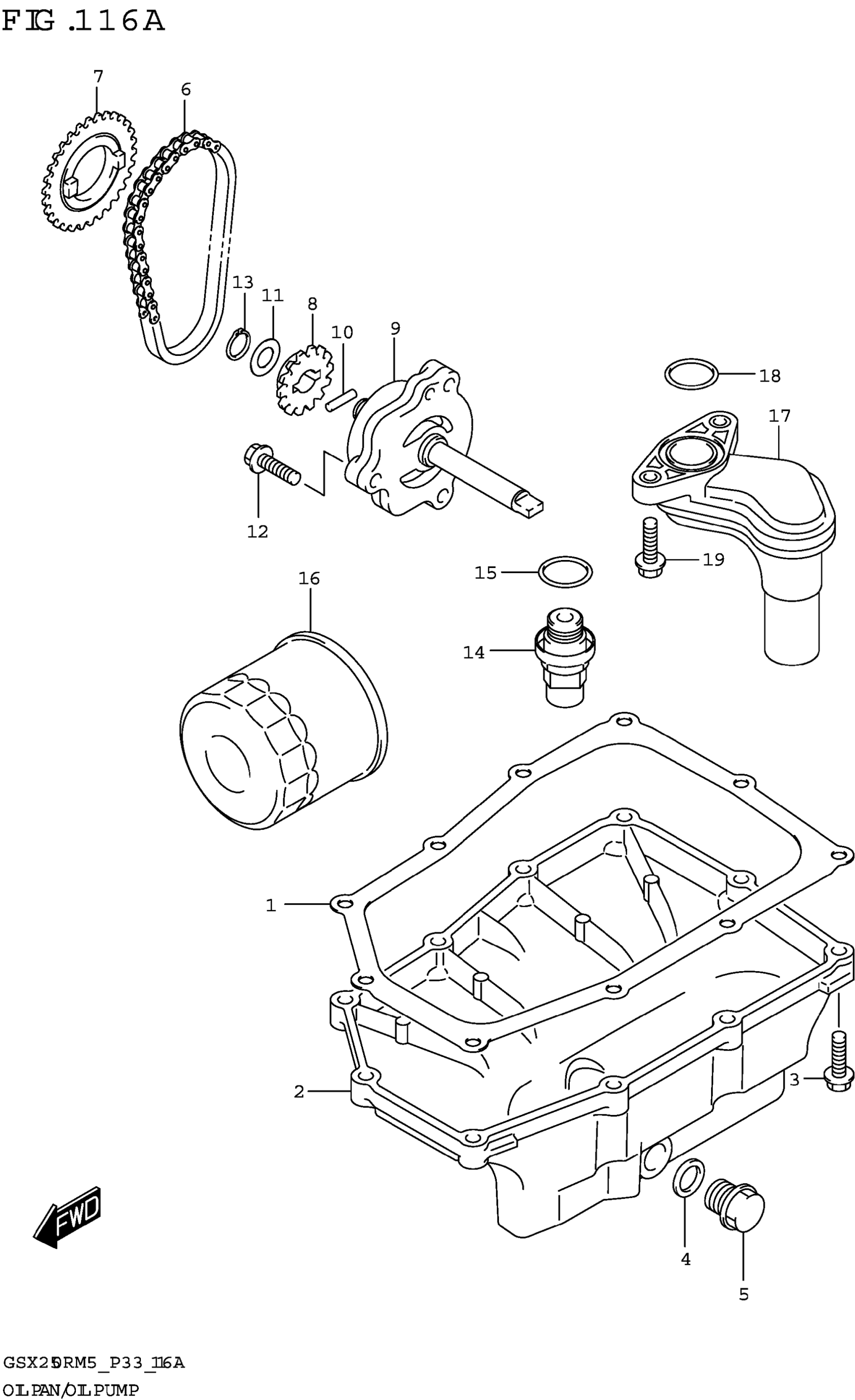

Suzuki GSX250RRLJM5 (2025) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

.GASKET,OIL PAN (ASB)

11489-48H00

$32.28

2

PAN,OIL

11511-48H00

$70.78

3

BOLT

01547-0625A

$2.01

4

GASKET (13.8X18.8X4.8)

09168-14L01

$0.80

5

PLUG (14X12)

09247-14043

$3.90

6

CHAIN,OIL PUMP DRIVE

16310-48H00

Unavailable

7

SPROCKET,OIL PUMP DRIVE (NT:2 | )

16321-48H00

Unavailable

8

SPROCKET,OIL PUMP DRIVEN (NT: | 5)

16331-48H00

Unavailable

9

PUMP ASSY,OIL

16400-20K00

$64.32

10

PIN,OIL PUMP

16421-48H00

Unavailable

11

WASHER,PUMP DRIVEN GEAR THR

16422-48H00

$3.68

12

BOLT

01547-0625A

$2.01

13

CIRCLIP

08331-31109

$1.77

14

VALVE ASSY,OIL RELIEF

16440-48H00

Unavailable

15

GASKET (16X22X2)

09168-16010

$1.88

16

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

17

STRAINER,ENGINE OIL

16520-48H00

Unavailable

18

O-RING (D:2.4,ID22.8)

09280-23L01

$3.77

19

BOLT (6X25)

01550-0625A

$1.97
