2025 Suzuki GSX250RRLJM5 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Suzuki GSX250RRLJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

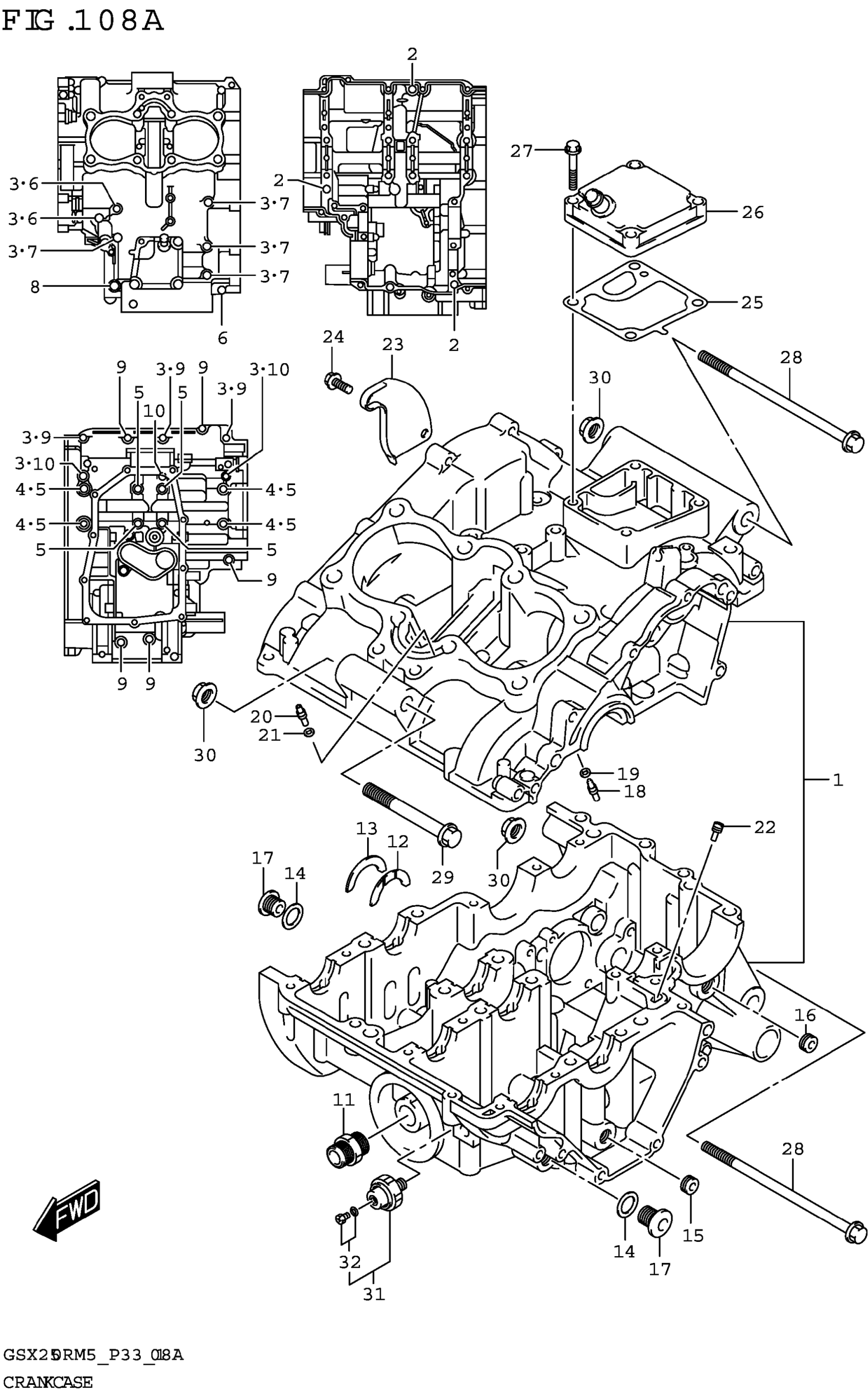

2025 Suzuki GSX250RRLJM5 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-48811

1
Out of stock

2

PIN

04211-11169

3
Out of stock

3

GASKET (5.8X13X1.8)

09168-06L04

11
Out of stock

4

.GASKET (8.2X14X1)

09168-08035

4
Out of stock

5

.BOLT (8X105)

09103-08554

8
Out of stock

6

BOLT

01547-0635A

3
Out of stock

7

.BOLT

01547-0655A

4
Out of stock

8

.BOLT

01550-0855A

1
Out of stock

9

BOLT

01547-0635A

8
Out of stock

10

.BOLT

01547-0690A

3
Out of stock

11

.UNION,OIL FILTER STAND

16591-48H00

1
Out of stock

12

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

1
Out of stock

13-1

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

1
Out of stock

13-2

.BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

1
Out of stock

13-3

.BEARING,CRANK THRUST

12228-17E00-0G0

1
Out of stock

13-4

.BEARING,CRANK THRUST

12228-17E00-0H0

1
Out of stock

13-5

.BEARING,CRANK THRUST

12228-17E00-0J0

1
Out of stock

13-6

.BEARING,CRANK THRUST

12228-17E00-0K0

1
Out of stock

13-7

.BEARING,CRANK THRUST (NO COL | R)

12228-17E00-0L0

1
Out of stock

14

GASKET (13.8X18.8X4.8)

09168-14L01

3
Out of stock

15

PLUG,OIL GALLERY (1/4PT,H:7.5

11322-48H00

1
Out of stock

16

PLUG,OIL GALLERY (1/4PT,H:7.5

11322-48H00

2
Out of stock

17

PLUG (14X12)

09248-14013

3
Out of stock

18

JET,PISTON COOLING

11391-48H00

2
Out of stock

19

O-RING (D:1.2,ID:4)

09280-04004

1
Out of stock

20

JET,OIL GALLERY CYLINDER

11329-48H00

1
Out of stock

21

O-RING (D:1.2,ID:4)

09280-04004

2
Out of stock

22

JET,T/M COOLING

11313-48H00

1
Out of stock

23

PLATE,OIL SEPARATOR

11317-48H00

1
Out of stock

24

BOLT

01547-0612A

2
Out of stock

25

.GASKET,BREATHER COVER (NA)

11318-48H00

1
Out of stock

26

COVER,BREATHER

11330-48H01

1
Out of stock

27

BOLT

01547-0630A

4
Out of stock

28

BOLT (10X155)

09103-10115

2
Out of stock

29

BOLT (10X85)

09103-10445

1
Out of stock

30

NUT

09159-10L06

3
Out of stock

31

SWITCH ASSY,OIL PRESSURE

37820-33D11

1
Out of stock

32

.BOLT,OIL PRESSURE SWITCH

37822-33D00

1
Out of stock
