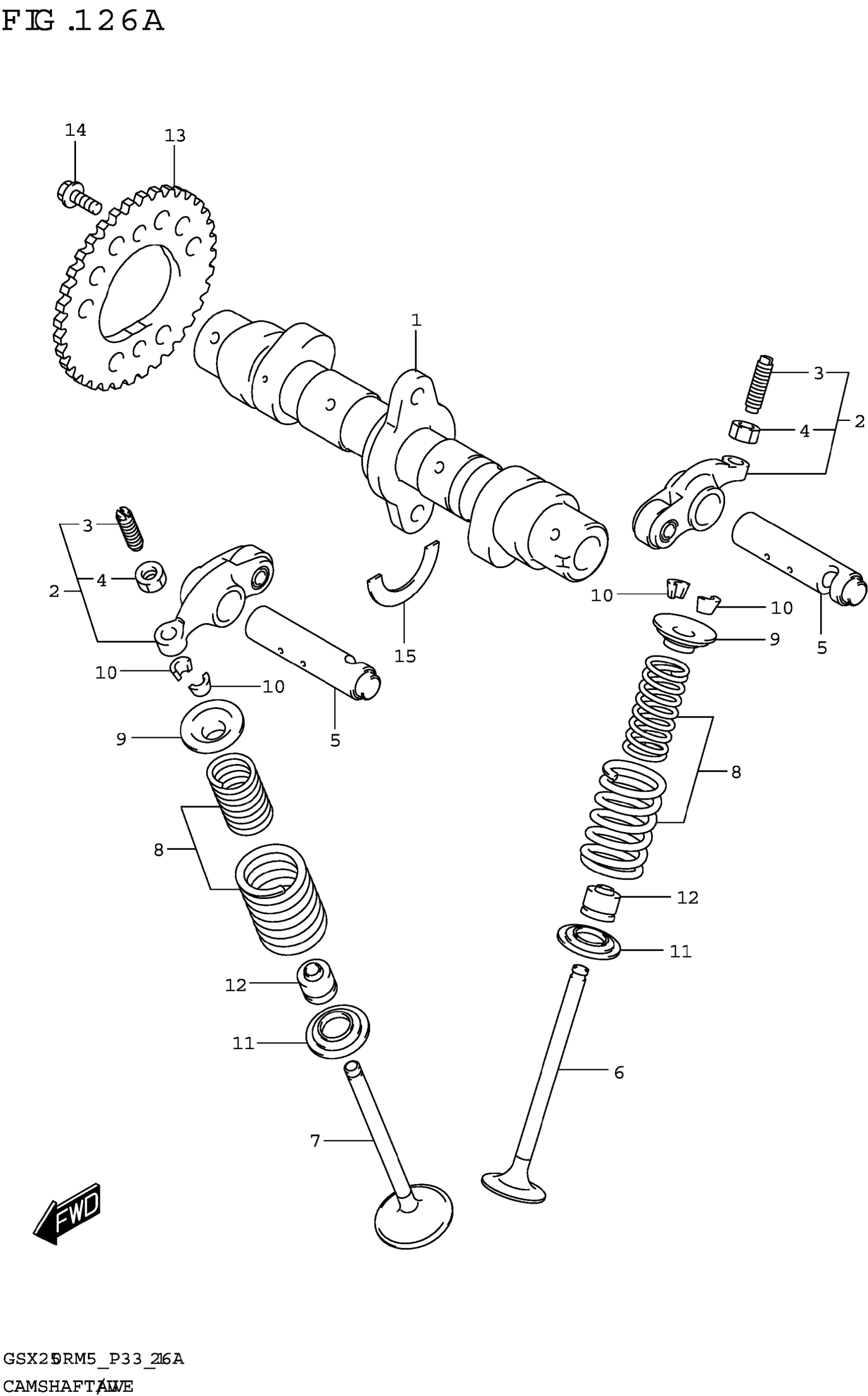

Suzuki GSX250RRLJM5 (2025) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-20K10

$194.80

2

ARM ASSY,VALVE ROCKER

12840-20K10

Unavailable

3

.SCREW,TAPPET ADJUSTING

12842-49260

$6.22

4

.NUT,TAPPET ADJUSTING

12843-39J30

$2.10

5

SHAFT,VALVE ROCKER ARM

12861-48H00

$9.83

6

VALVE,INTAKE

12911-20K00

$19.10

7

VALVE,EXHAUST

12912-20H20

$30.96

8

SPRING SET,VALVE

12920-48H10

$13.30

9

RETAINER,VALVE SPRING

12931-27A30

Unavailable

10

COTTER,VALVE

12932-36H00

$1.43

11

SEAT,VALVE SPRING

12933-81410

Unavailable

12

SEAL,OIL (5X10X8.7)

09289-05L02

$10.02

13

SPROCKET,CAMSHAFT (NT:38)

12741-48H00

$15.40

14

BOLT (6X12.5)

09111-06027

$1.87

15

C-RING

09390-22002

$2.33
