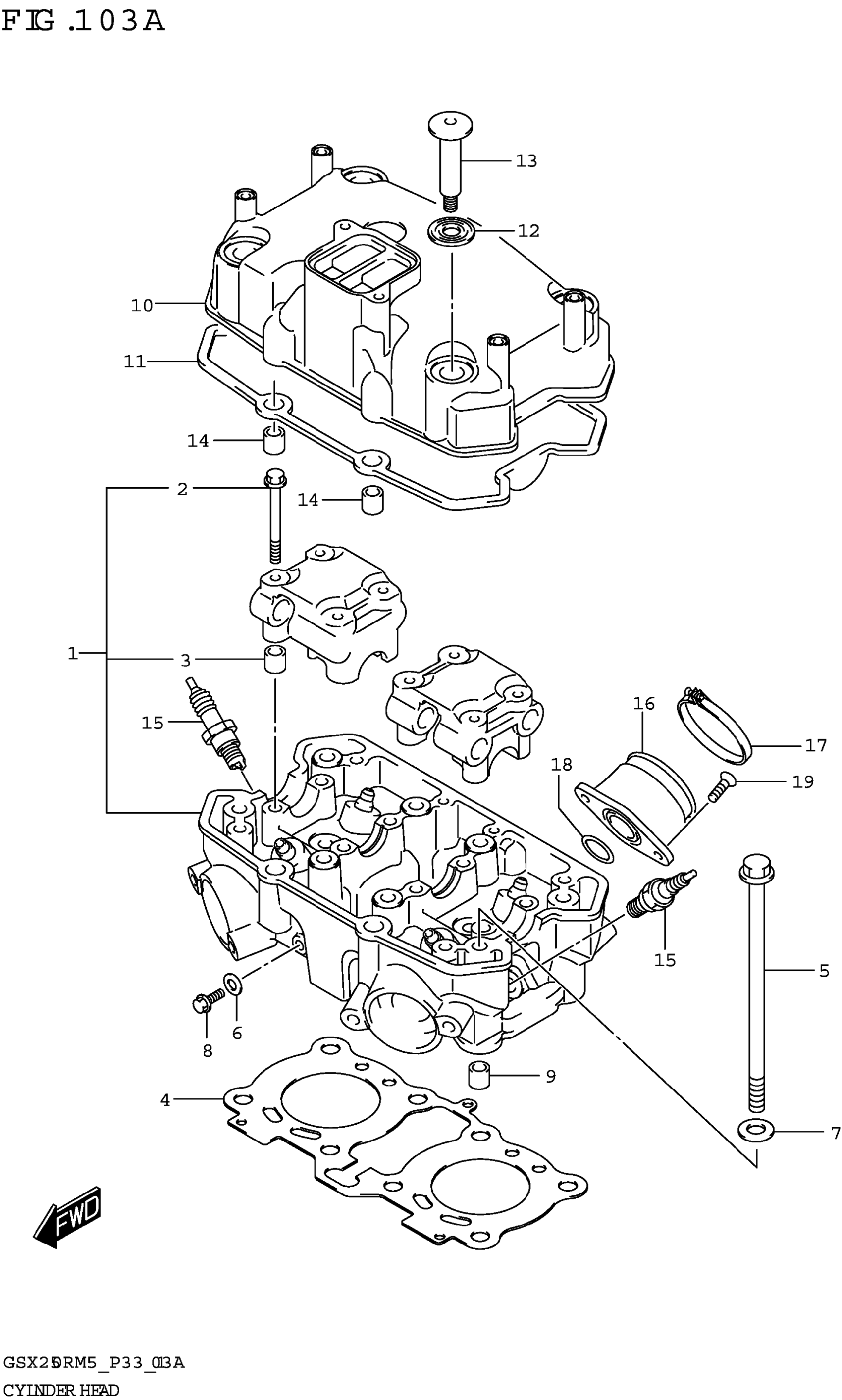

Suzuki GSX250RRLJM5 (2025) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-48H60

$450.68

2

BOLT (6X60)

09103-06220

$2.68

3

.PIN (8X11)

09206-08011

Unavailable

4

.GASKET,CYLINDER HEAD

11141-48H00

$40.68

5

BOLT

09103-08576

$4.90

6

GASKET (5.8X13X1.8)

09168-06L04

Unavailable

7

GASKET (8.5X17X2.3)

09168-08032

$2.67

8

BOLT

01550-0612A

$1.97

9

PIN

04211-11129

$1.77

10

COVER,CYLINDER HEAD

11171-48H51

$117.10

11

.GASKET,CYL HEAD COVER

11173-48H00

$17.42

12

WASHER,CYL HEAD COVER (10.6X2 | .5X1.6)

11191-27E00

$3.72

13

BOLT (7X57)

09106-07022

$9.90

14

PIN

04211-11129

$1.77

15-1

PLUG,SPARK (U22EPR9)

09482-00627

$14.37

15-2

PLUG,SPARK (CPR7EA-9)

09482-00621

$10.35

16

PIPE,INTAKE

13110-48H01

$12.90

17

CLAMP,INTAKE PIPE

13170-48H00

$5.98

18

O-RING (D:2.3,ID:29.7)

09280-30L01

$4.03

19

SCREW

02122-0616A

$1.43
