2022 Suzuki GSX1300RRQM2 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

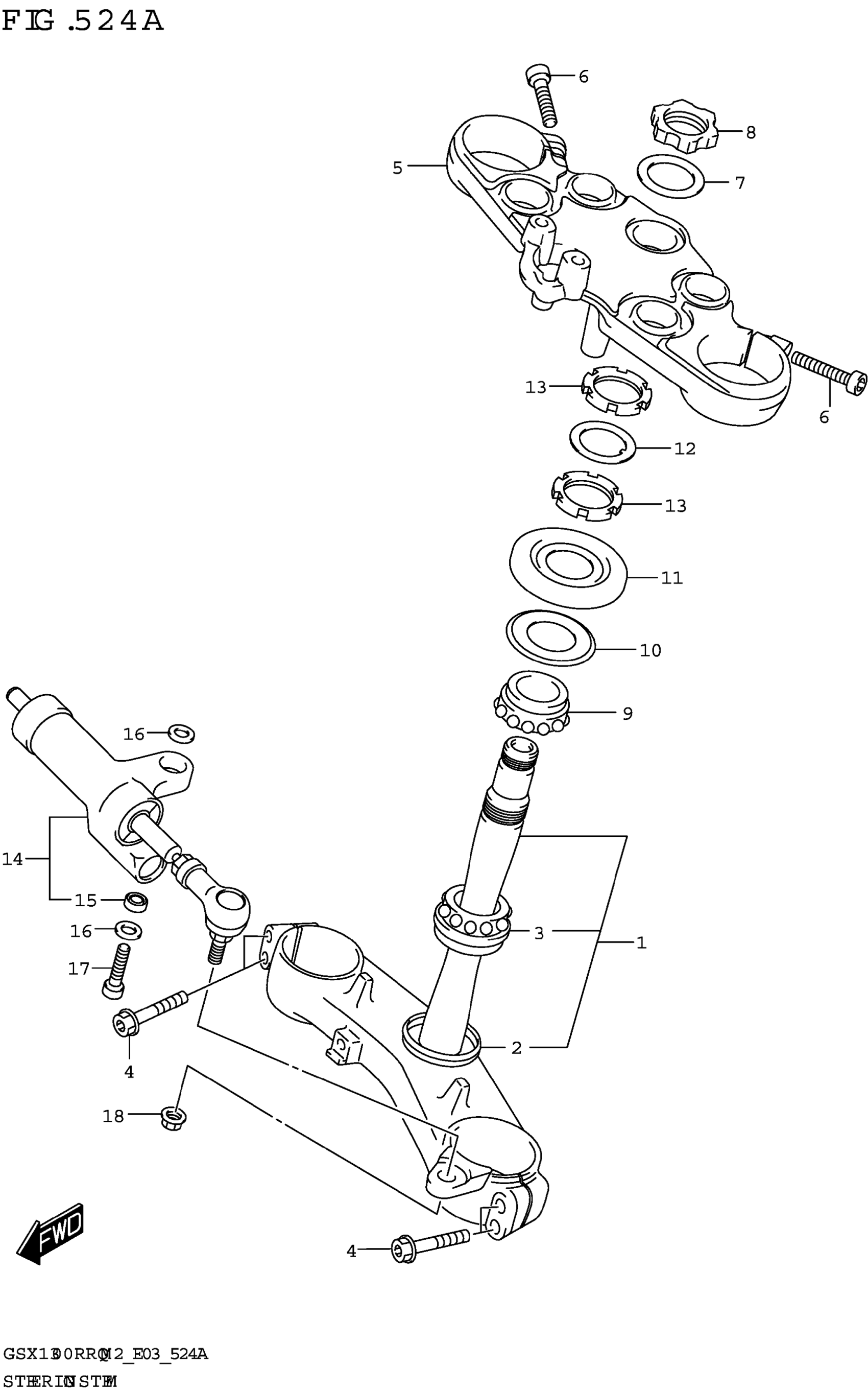

2022 Suzuki GSX1300RRQM2 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FR FORK UNDER

51410-24F50

1
Out of stock

2

.SEAL,STEERING LWR (30.1X56X4 | 4)

51644-12C00

1
Out of stock

3

.BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

4
Out of stock

5

BRACKET,FR FORK UPR

51311-24F50

1
Out of stock

6

BOLT

51328-24F50

2
Out of stock

7

WASHER

51356-24F50

1
Out of stock

8

NUT

51353-06L00

1
Out of stock

9

.BEARING (30X55X17)

09267-30010

1
Out of stock

10

.SEAL,STEERING LWR (30.1X56X4 | )

51644-12C00

1
Out of stock

11

COVER,STEERING UPR

51643-41G00

1
Out of stock

12

WASHER,STEERING STEM

51641-33E00

1
Out of stock

13

NUT,STEERING STEM

51631-33E00

2
Out of stock

14

DAMPER ASSY,STEERING

51750-15H00

1
Out of stock

15

.BEARING (8X17.5X11)

09269-08003

1
Out of stock

16

SEAL,PILLOW BALL,DUST

64339-14101

2
Out of stock

17

NUT

08319-3108A

1
Out of stock

18

BOLT (8X35)

09103-08391

1
Out of stock
