2022 Suzuki GSX1300RRQM2 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

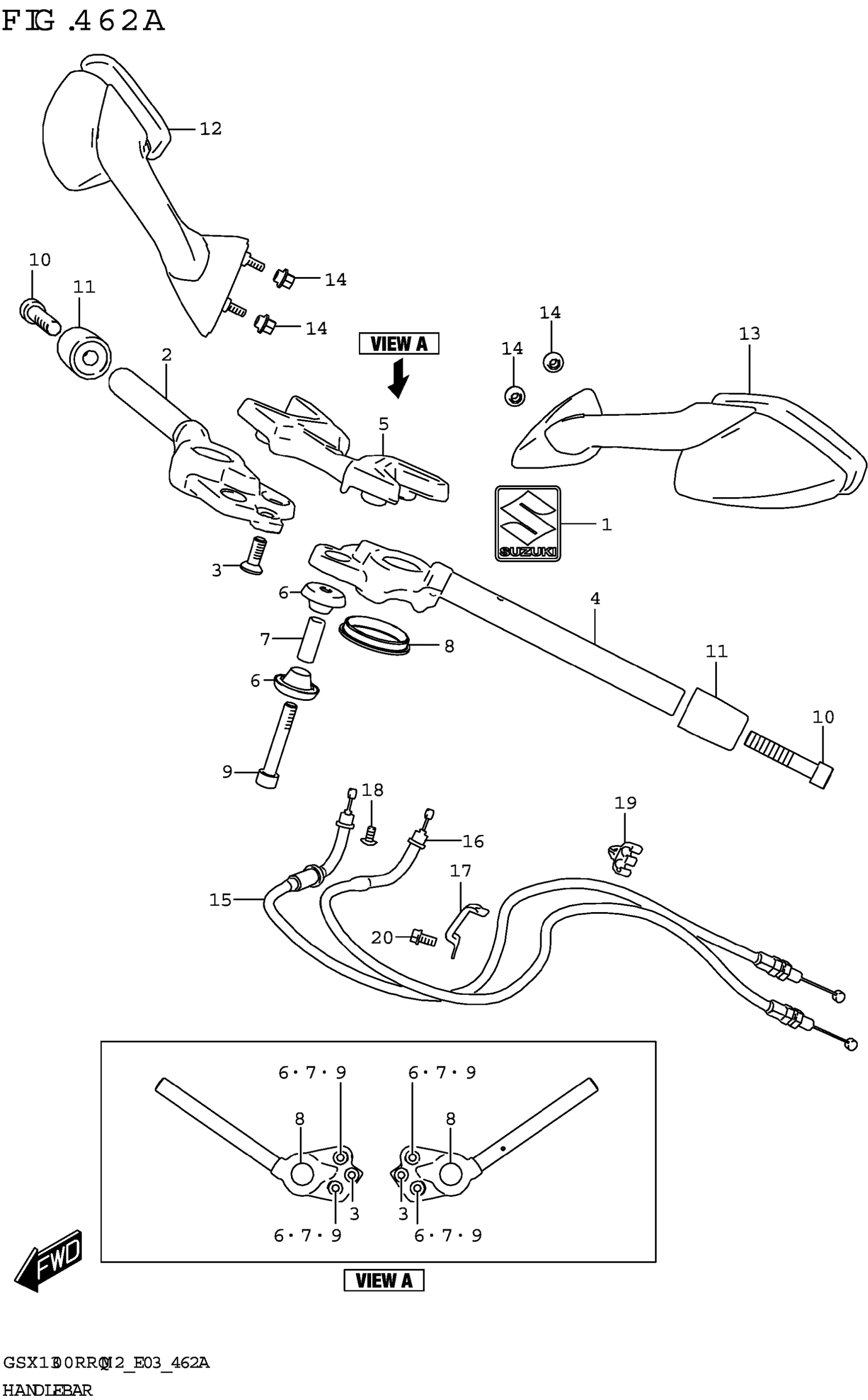

2022 Suzuki GSX1300RRQM2 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM,S

68281-47HA0

1
Out of stock

2

HANDLEBAR,R

56111-10L00

1
Out of stock

3

BOLT,HANDLEBAR

56123-10L00

2
Out of stock

4

HANDLEBAR,L This part replaces 56151-10L00.

56151-10L01

1
Out of stock

5

HOLDER,HANDLEBAR

56211-10L00

1
Out of stock

6

CUSHION,UPR BRKT

56240-01D01

8
Out of stock

7

SPACER,STEERING STEM HEAD

56243-01D00

4
Out of stock

8

CUSHION,HANDLE HOLDER

56247-24F00

2
Out of stock

9

BOLT,HANDLE HOLDER

56249-10L00

4
Out of stock

10

BOLT,HANDLE BALANCER

56277-10L00

2
Out of stock

11

BALANCER,HANDLEBAR

56278-10L00

2
Out of stock

12

MIRROR ASSY,REAR VIEW,R

56500-10L00

1
Out of stock

13

MIRROR ASSY,REAR VIEW,L

56600-10L00

1
Out of stock

14

NUT,RR VIEW MIRROR

56619-41G01

4
Out of stock

15

CABLE ASSY,THROTTLE NO.1

58300-10L00

1
Out of stock

16

CABLE ASSY,THROTTLE NO.2

58300-10L10

1
Out of stock

17

GUIDE,CABLE

58623-24F10

1
Out of stock

18

SCREW (5X10)

09125-05042

1
Out of stock

19

CLAMP

09403-07344

1
Out of stock

20

BOLT

01547-0612A

1
Out of stock
