2022 Suzuki GSX1300RRQM2 Front Fork Damper Diagram

← All diagrams

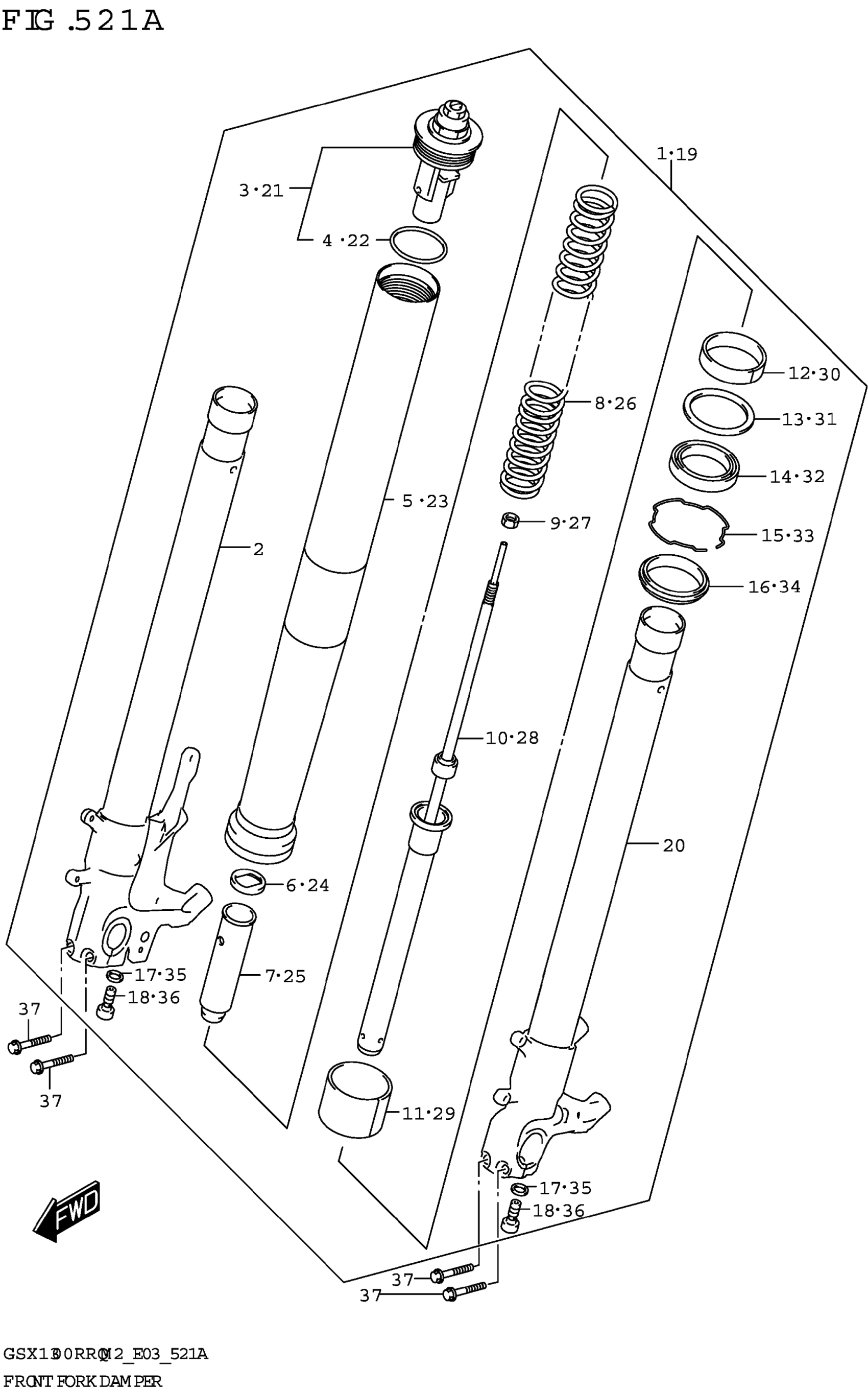

Find the part on the Front Fork Damper diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX1300RRQM2 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,R

51103-10L00

1
Out of stock

2

.TUBE,INNER RH

51110-10L00

1
Out of stock

3

.CAP

51351-10L00

1
Out of stock

4

..O RING

62278-14100

1
Out of stock

5

.TUBE,OUTER

51131-10L00

1
Out of stock

6

.WASHER

51158-40F30

1
Out of stock

7

.SPACER, SPRING

51176-40F30

1
Out of stock

8

.SPRING

51171-10L00

1
Out of stock

9

.NUT, ROD

51352-13A60

1
Out of stock

10

.CYLINDER

51146-10L00

1
Out of stock

11

.PISTON

51112-31J00

1
Out of stock

12

.METAL,SLIDE

51152-31J00

1
Out of stock

13

.WASHER

51158-14200

1
Out of stock

14

.SEAL,OIL

51153-41G00

1
Out of stock

15

.RING,STOPPER

51156-14200

1
Out of stock

16

.SEAL,DUST

51173-41G00

1
Out of stock

17

.GASKET

51148-41310

1
Out of stock

18

.BOLT

51147-24F50

1
Out of stock

19

DAMPER ASSY,L

51104-10L00

1
Out of stock

20

.TUBE,INNER LH

51120-10L00

1
Out of stock

21

.CAP

51351-10L00

1
Out of stock

22

..O RING

62278-14100

1
Out of stock

23

.TUBE,OUTER

51131-10L00

1
Out of stock

24

.WASHER

51158-40F30

1
Out of stock

25

.SPACER, SPRING

51176-40F30

1
Out of stock

26

.SPRING

51171-10L00

1
Out of stock

27

.NUT, ROD

51352-13A60

1
Out of stock

28

.CYLINDER

51146-10L00

1
Out of stock

29

.PISTON

51112-31J00

1
Out of stock

30

.METAL,SLIDE

51152-31J00

1
Out of stock

31

.WASHER

51158-14200

1
Out of stock

32

.SEAL,OIL

51153-41G00

1
Out of stock

33

.RING,STOPPER

51156-14200

1
Out of stock

34

.SEAL,DUST

51173-41G00

1
Out of stock

35

.GASKET

51148-41310

1
Out of stock

36

.BOLT

51147-24F50

1
Out of stock

37

BOLT, AXLE STOPPER

51434-40H20

4
Out of stock
