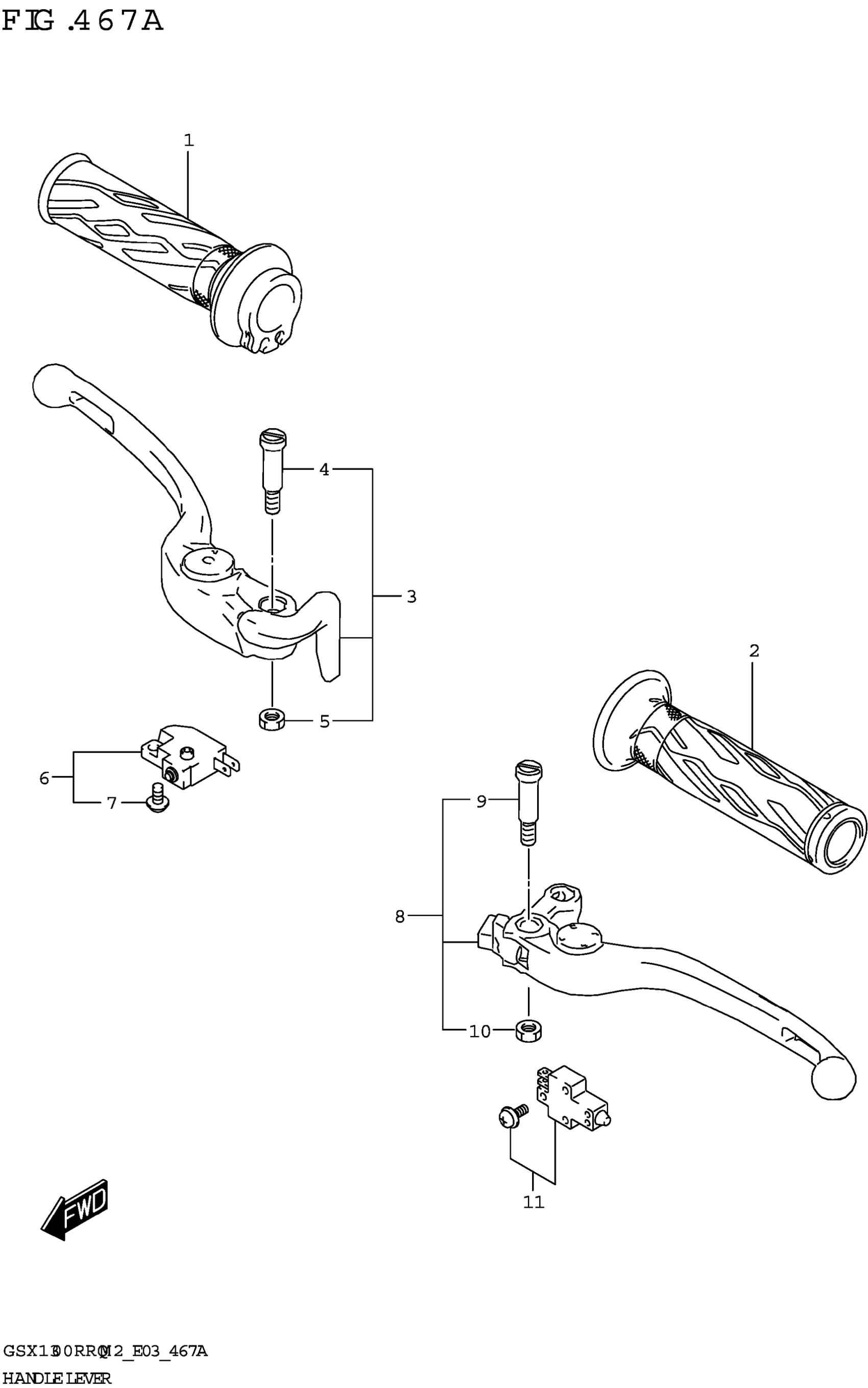

Suzuki GSX1300RRQM2 (2022) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-21H02

$19.46

2

GRIP,L

57211-21H01

$10.65

3

LEVER ASSY,BRAKE

57300-10L00

$101.90

4

.BOLT,LEVER PIVOT

57431-29G00

$8.91

5

.NUT

08319-2106A

$1.97

6

SWITCH ASSY,FR BRAKE

57460-14J02

$36.79

7

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

8

LEVER ASSY,CLUTCH

57500-10L00

$72.25

9

.BOLT,LEVER PIVOT

57431-10L00

$9.77

10

.NUT

08319-2106A

$1.97

11

SWITCH ASSY,CLUTCH

57560-02FA0

$22.55
