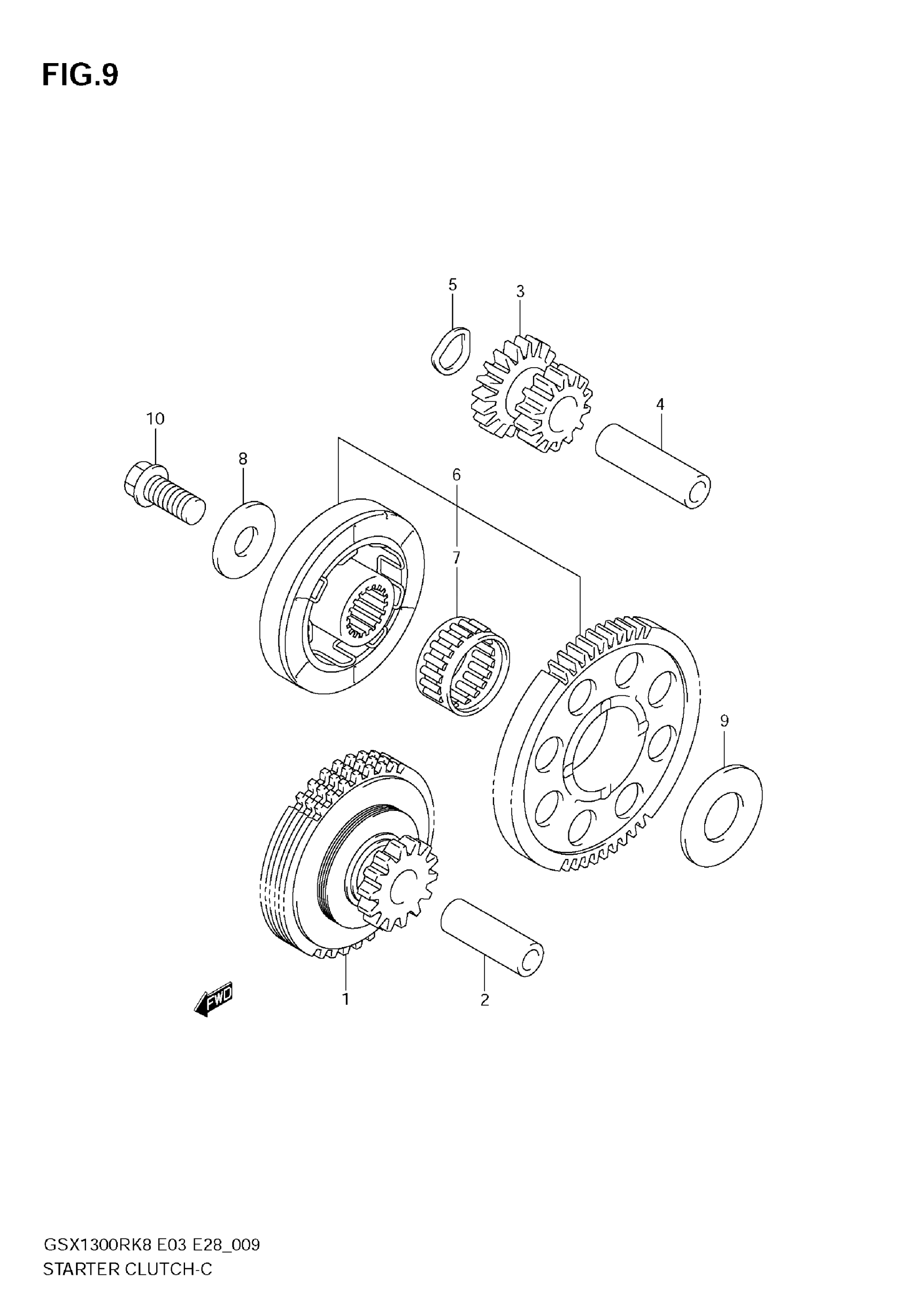

Suzuki GSX1300R (2009) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE GEAR

12600-24F00

$117.48

2

PIN

12615-24F00

$10.05

3

GEAR, STARTER IDLE NO.2 (NT:16/14)

12612-24F00

$63.49

4

PIN

12151-05200

$11.96

5

WASHER

09164-14008

$2.09

6

CLUTCH SET, STARTER | Includes Item(s) 7

12600-24861

$432.40

7

BEARING

09263-28031

$43.98

8

WASHER

08211-10285

$3.32

9

WASHER

08211-20403

$4.09

10

BOLT (10X23)

09103-10189

$3.83
