2009 Suzuki GSX1300R Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

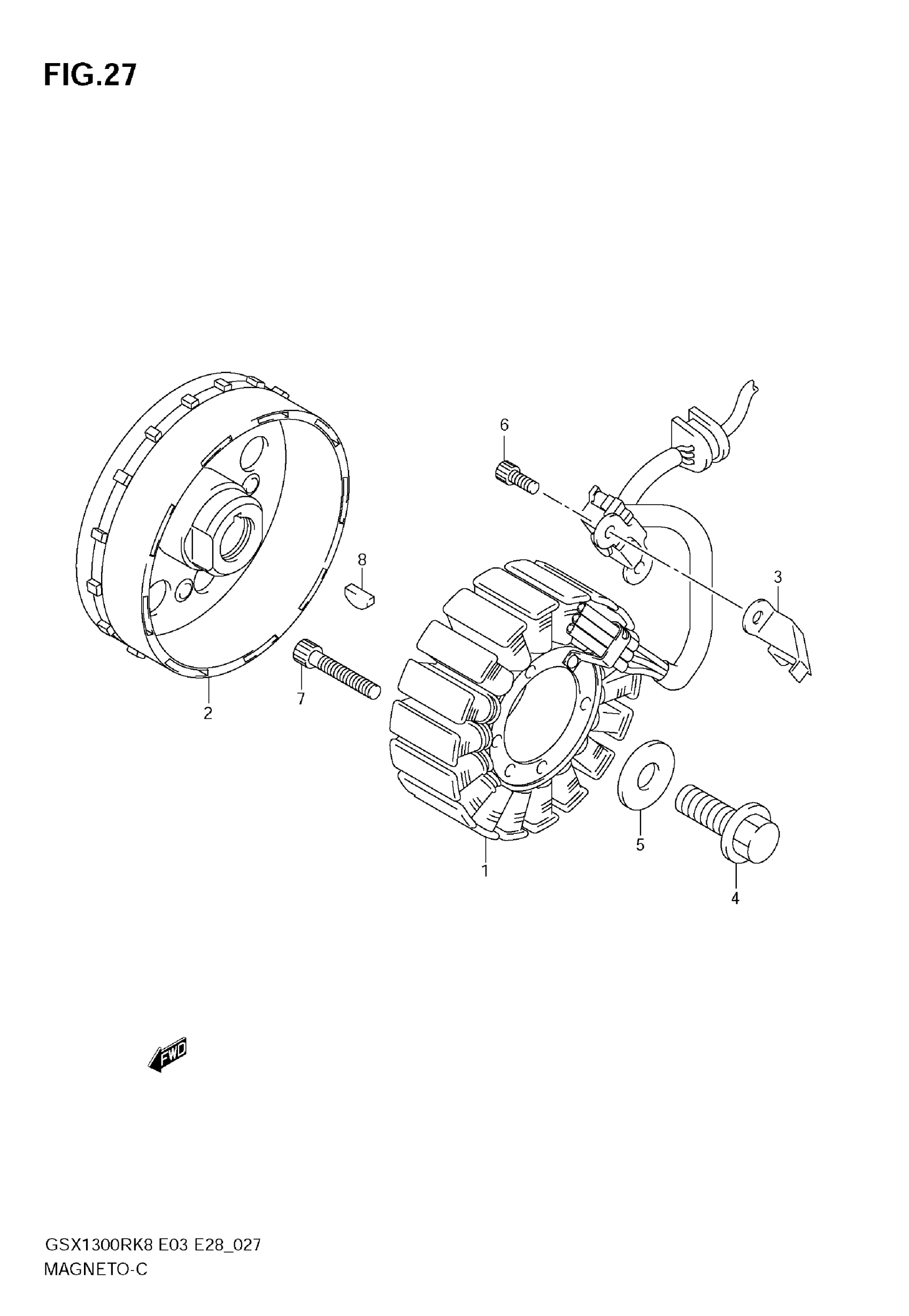

2009 Suzuki GSX1300R Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$424.40

In stock

2

ROTOR ASSY, MAGNETO

32102-24F20

1

$943.15

In stock

3

CLAMP, MAGNETO LEAD

32371-24F00

1

$7.12

In stock

4

1

$6.58

In stock

5

1

$4.28

In stock

6

BOLT, SENSOR

07130-0512B

2

$2.72

In stock

7

BOLT, MAGNETO STATOR

07130-0635B

3

$3.29

In stock

8

KEY, MAGNETO ROTOR

09420-04008

1
Out of stock
