2009 Suzuki GSX1300R Headlamp Diagram

← All diagrams

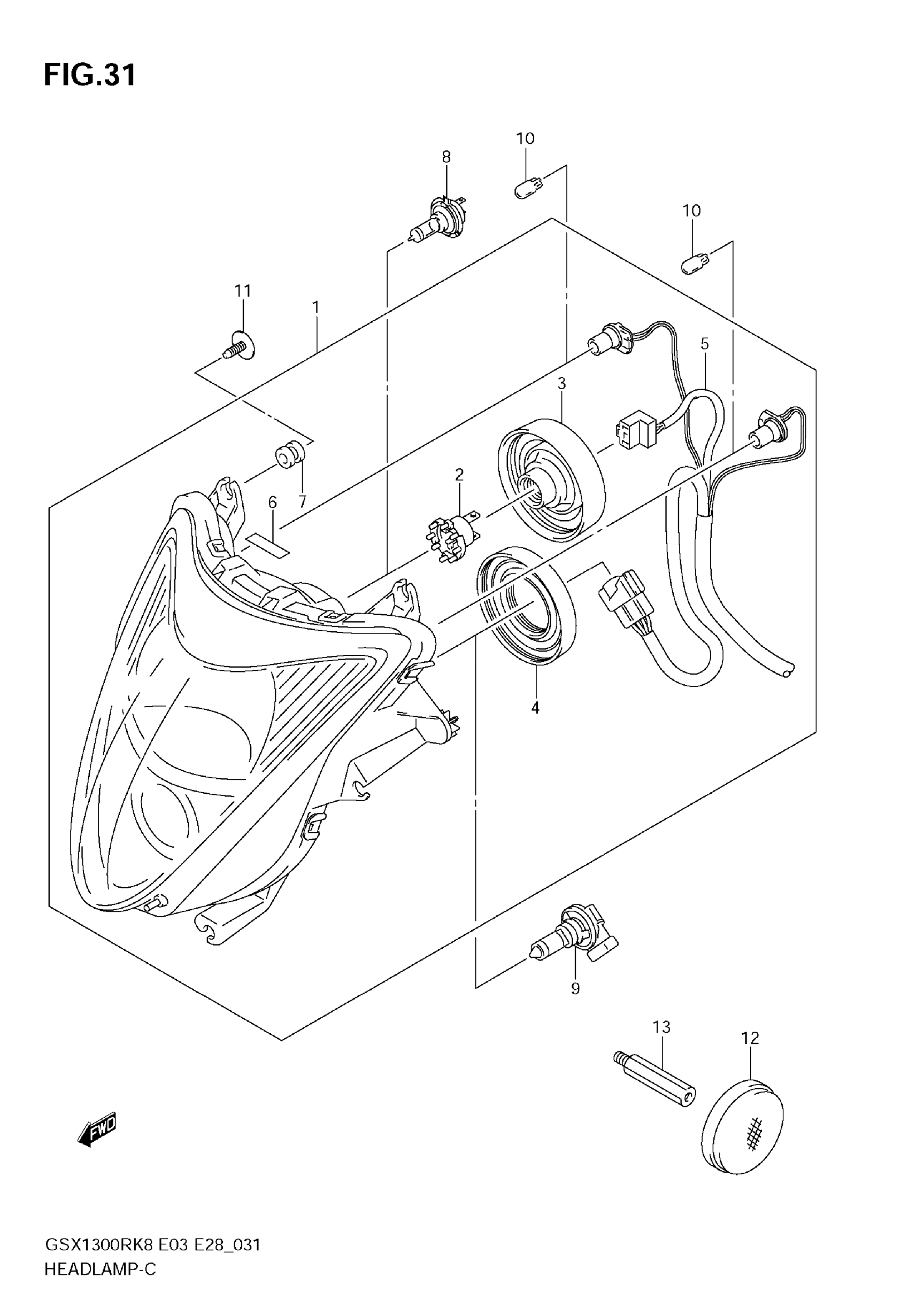

Find the part on the Headlamp diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX1300R Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 7 This part replaces 35100-15H30-999.

35100-15H32-999

1
Out of stock

2

ADAPTOR ASSY

35175-24F00

1
Out of stock

3

SOCKET, COVER

35173-15H00

1
Out of stock

4

SOCKET, COVER

35173-14G00

1
Out of stock

5

CORD ASSY

36118-15H00

2
Out of stock

6

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

1
Out of stock

7

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

6
Out of stock

8

BULB (12V55W H7) | PURCHASE LOCALLY

09471-12188

1
Out of stock

9

BULB (12V65W)

09471-12222

1
Out of stock

10

.BULB (12V5W)

09471-12216

2
Out of stock

11

SCREW, HEADLAMP (5X15)

09136-05062

8
Out of stock

12

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

2
Out of stock

13

BOLT, FR SIDE

09119-06104

2
Out of stock
