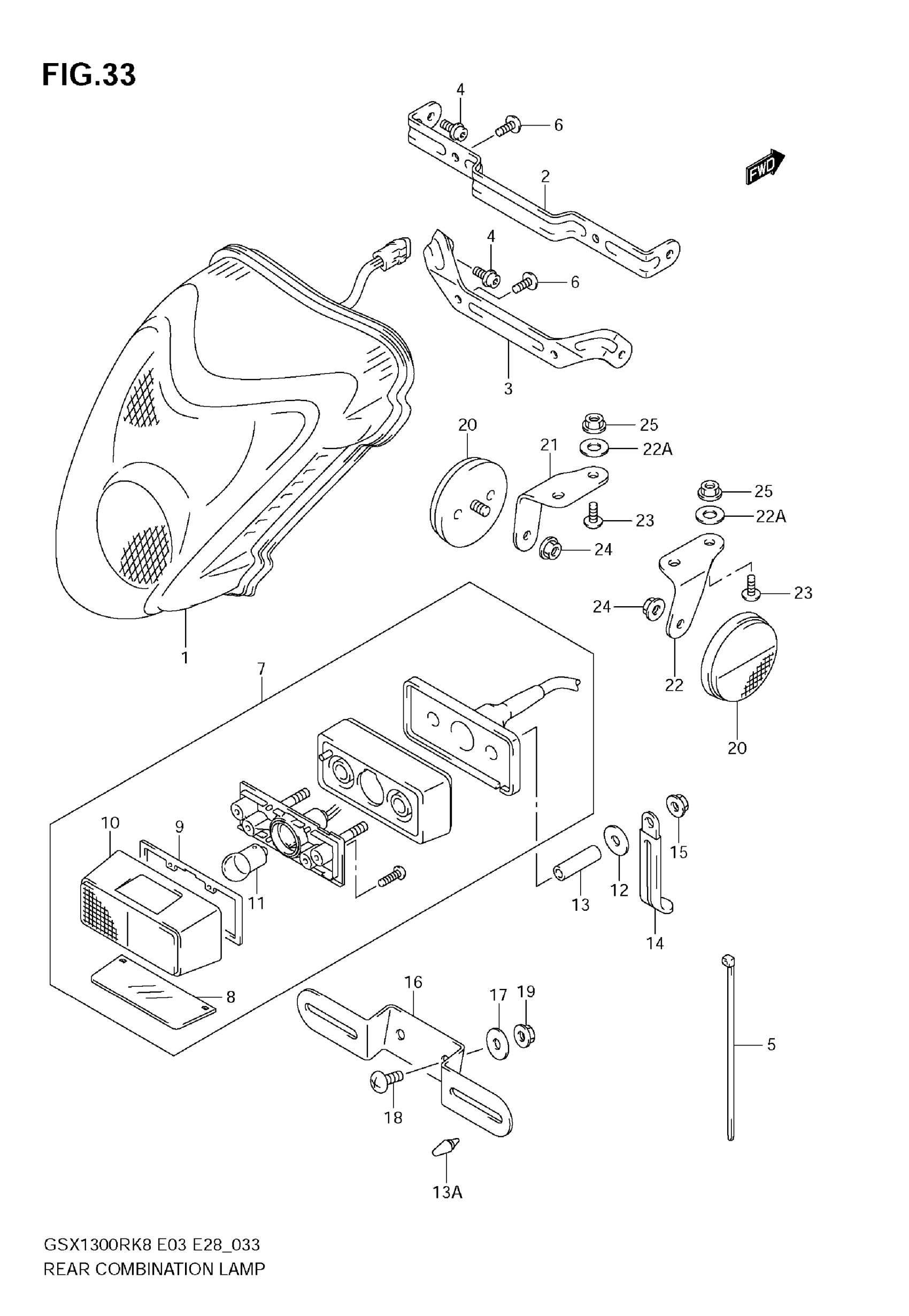

Suzuki GSX1300R (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR COMB

35710-15H30

$448.13

2

BRACKET, RR COMB

35726-15H00

$10.71

3

BRACKET, RR COMB

35726-15H10

$10.71

4

BOLT, RR COMB | 5X12

09106-05031

$2.80

5

CLAMP, LICENSE (L:145)

09407-14407

$2.84

6

SCREW, RR COMB

03541-0516A

$1.41

7

LAMP ASSY,LICENSE | Includes Item(s) 8 - 11 This part replaces 35910-41G30.

35910-41G32

$99.83

8

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

9

GASKET

35913-41G00

$16.07

10

COVER, LICENSE LAMP

35917-41G00

$39.85

11

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

12

WASHER, LICENSE LAMP | 6.5X20X1.2

09160-06077

$1.97

13

SPACER, LICENSE LAMP | 6.5X9X34

09180-06356

$5.10

13A

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

14

CLAMP (L:45)

09404-06429

$1.88

15

NUT, LICENSE LAMP

08316-1006A

$2.25

16

BRACKET, LICENSE PLATE

35927-15H00

$17.43

17

WASHER (6.5X20X1.2)

09160-06077

$1.97

18

SCREW

02142-0616A

$1.41

19

NUT

08316-1006A

$2.25

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

21

BRKT, RR SIDE RR, R

35975-15H00

$10.55

22

BRKT, RR SIDE RR, L

35976-15H00

$10.55

22A

WASHER (6.5X14X2.0)

09160-06126

$1.99

23

SCREW RR BRKT

02142-0612A

$1.41

24

NUT, RR SIDE RR

08316-1005A

$2.25

25

NUT, RR SIDE RR BRKT

08316-1006A

$2.25
