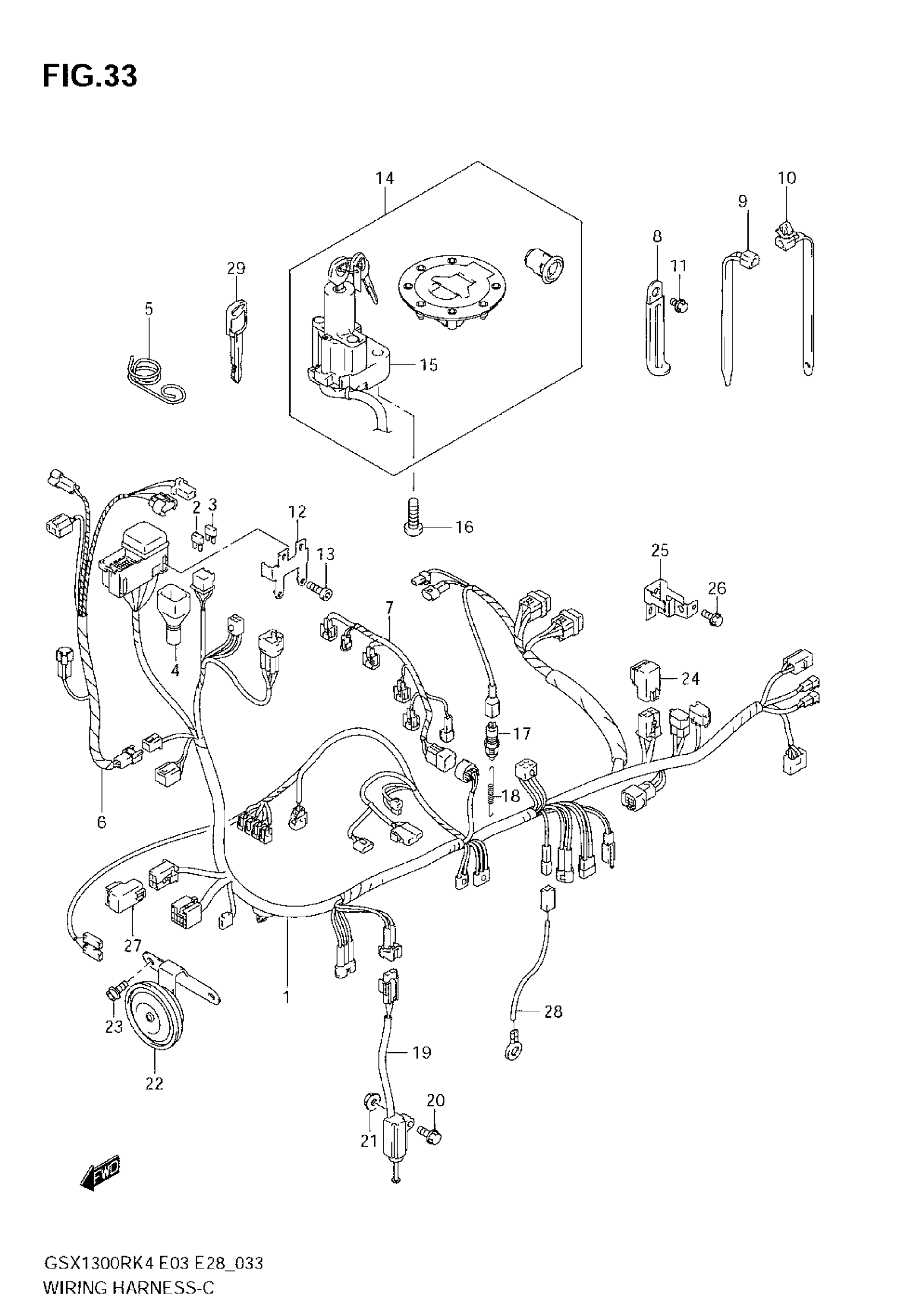

Suzuki GSX1300R (2007) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL K4

36610-24F70

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K5/K6/K7; Includes Item(s) 2 - 4

36610-24F90

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

BOOT, METER COUPLER

36618-33E00

$9.90

5

GUIDE, WIRING HARNESS

36619-24F00

Unavailable

6

HARNESS, WIRING NO.2

36620-24F10

Unavailable

7

WIRE, INJECTION LEAD

36856-24F10

Unavailable

8

CLAMP (L:45) | T:1.0

09404-06429

$1.82

8

CLAMP | T:0.7 This part replaces 09404-06431.

09404-06039

$1.73

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

9

CLAMP (L:125)

09407-14403

$2.24

9

CLAMP (L:165)

09407-18402

$2.21

10

CLAMP (L:60)

09407-11402

$1.81

10

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

11

BOLT, WIRING HARNESS

01550-0610B

$2.43

12

BRACKET, FUSE BOX

36744-24F00

Unavailable

13

SCREW, FUSE BOX

07120-0510B

$3.32

14

LOCK SET This part replaces 37000-24810.

37000-24813

$415.78

14

LOCK SET (CA) | E33; Includes Item(s) 15 This part replaces 37000-24830.

37000-24831

Unavailable

15

LOCK ASSY,STEER This part replaces 37100-24F00.

37100-24F01

$233.62

16

SCREW (8X20)

09139-08016

$3.04

17

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

18

SPRING

09443-06012

$2.90

19

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$66.52

20

BOLT (8X35)

09103-08357

$4.53

21

NUT

08316-1008B

$2.65

22

HORN ASSY

38500-24F00

$98.52

23

BOLT, HORN

07120-0612B

$2.80

24

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

25

BRACKET, FUEL PUMP RLY

38741-24F00

$11.63

26

BOLT, FUEL PUMP

01550-0612B

$2.38

27

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

28

WIRE, OIL PRESSURE

36851-17E10

Unavailable

29

KEY, BLANK | OPT

37146-33E00

$19.42
