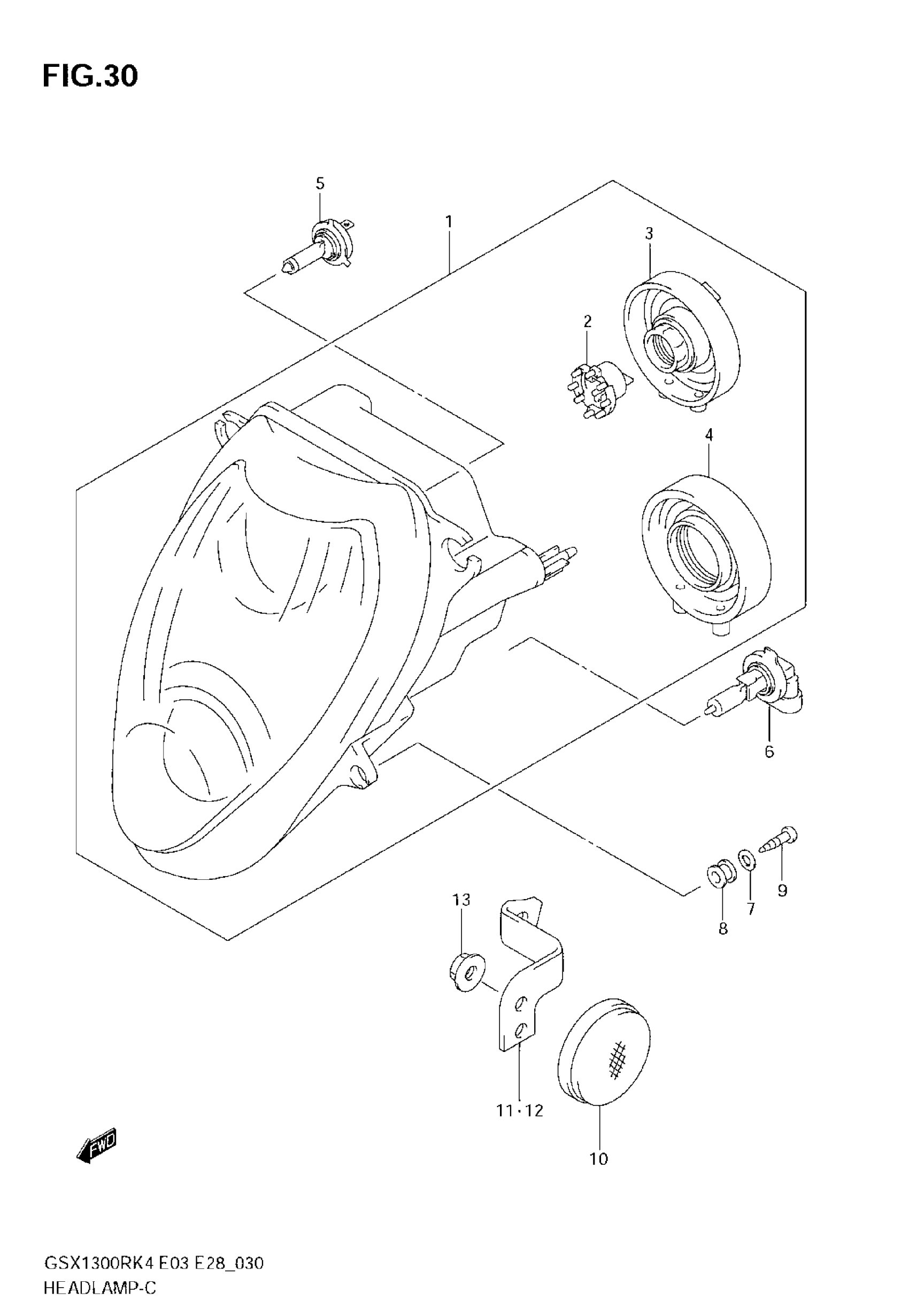

Suzuki GSX1300R (2007) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 4

35100-24F01-999

$641.93

2

ADAPTER ASSY

35175-24F00

$17.70

3

SOCKET, COVER

35125-24F10

$21.92

4

SOCKET, COVER

35125-24F00

$21.92

5

BULB (12V55W H7)

09471-12188

$21.31

6

BULB (12V,60W,HB3,P20D)

09471-12151

$52.62

7

WASHER (5.5X18X1.0)

09160-05045

$2.01

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.03

9

SCREW

03511-0516B

$2.87

10

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$14.56

11

BRACKET, RH

35956-02F00

Unavailable

12

BRACKET, LH

35957-02F00

Unavailable

13

NUT

08316-1005B

$2.58
