2007 Suzuki GSX1300R Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

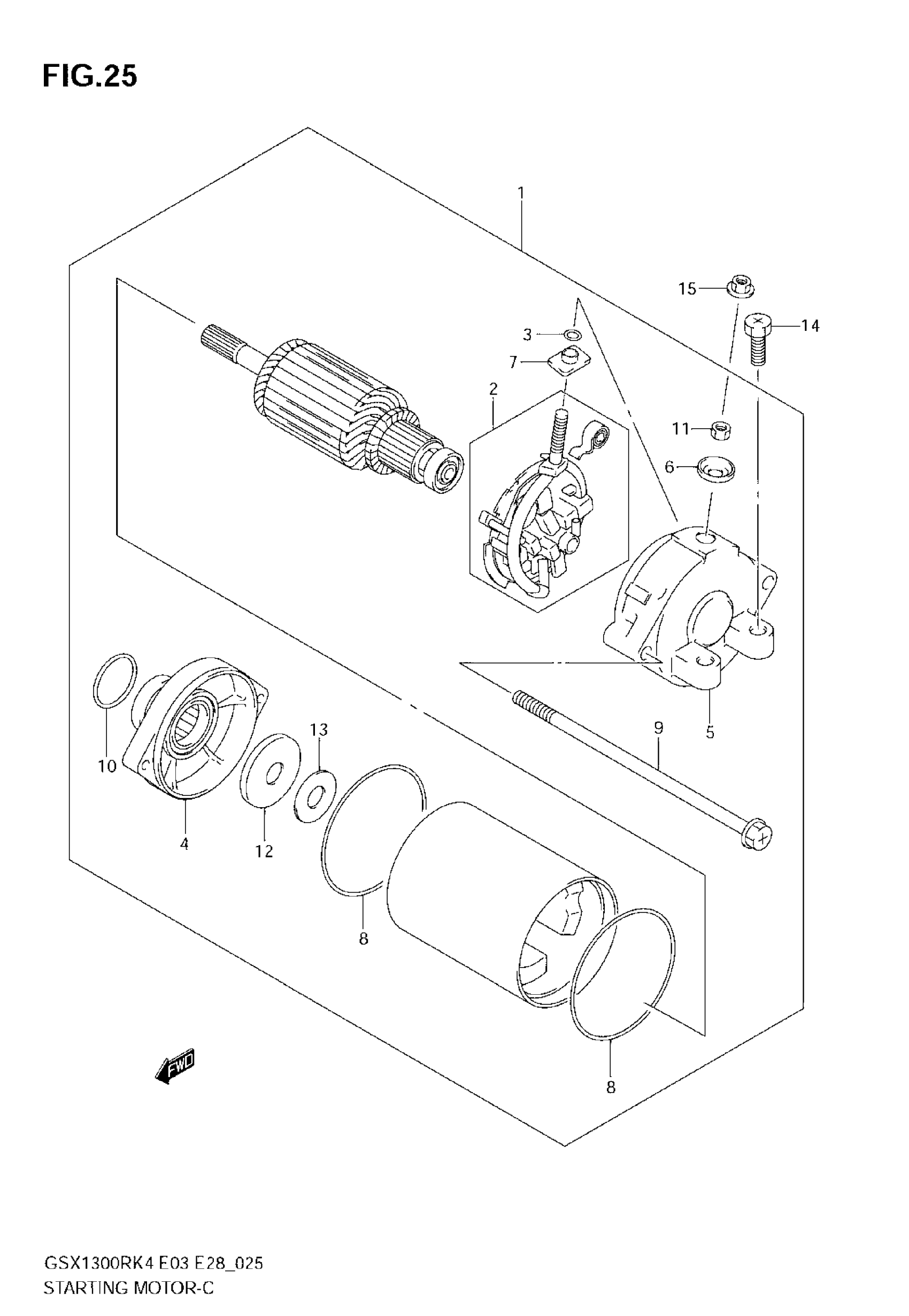

2007 Suzuki GSX1300R Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$709.23

In stock

2

HOLDER SET, BRUSH

31132-45C00

1

$80.57

In stock

3

O RING

31143-38300

1

$5.75

In stock

4

HOUSING ASSY, STARTER This part replaces 31150-24F01.

31150-15H20

1
Out of stock

5

FRAME, STARTER END

31171-24F00

1
Out of stock

6

BUSHING

31172-38300

1

$5.71

In stock

7

BUSHING

31173-88C00

1
Out of stock

8

O RING

31264-44110

2

$13.40

In stock

9

BOLT

31281-24F00

2
Out of stock

10

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

11

.NUT

08310-00067

1

$1.82

In stock

12

.SHIM SET This part replaces 31361-43400.

31170-43400

1
Out of stock

13

SHIM

31361-38300

2

$2.25

In stock

15

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock
