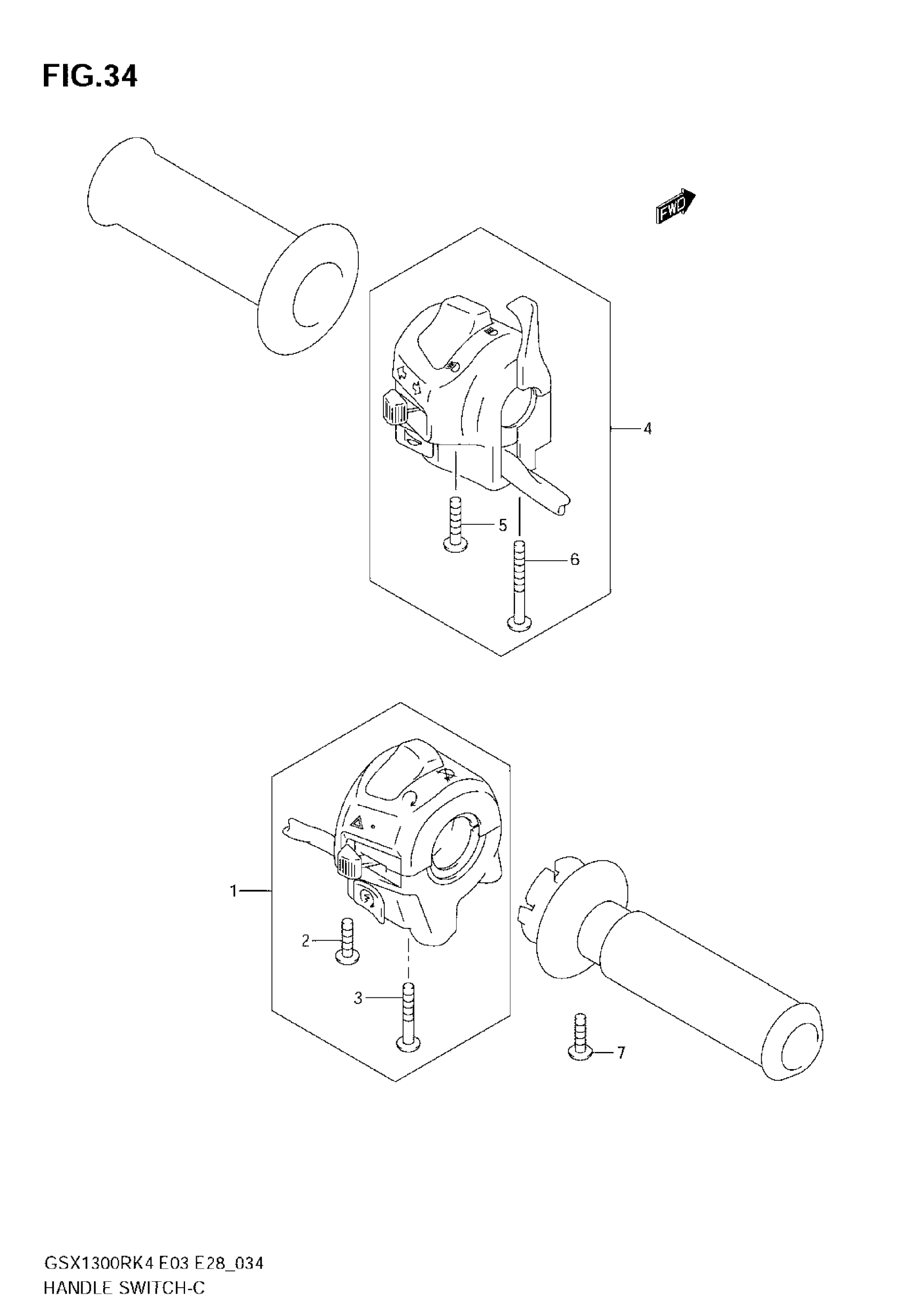

Suzuki GSX1300R (2007) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | MODEL K4

37200-33E51

$198.48

1

SWITCH ASSY, HANDLE RH | MODEL K5/K6/K7; Includes Item(s) 2 - 3

37200-33E60

$139.83

2

.SCREW This part replaces 02112-05305.

02112-0530B

$1.45

3

SCREW This part replaces 02112-05505.

02112-0550B

$2.40

4

SWITCH ASSY, HANDLE LH | Includes Item(s) 5 - 6

37400-24F10

$261.62

5

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.45

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

7

SCREW, THROTTLE CABLE

02112-0510B

$2.00
