2007 Suzuki GSX1300R Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

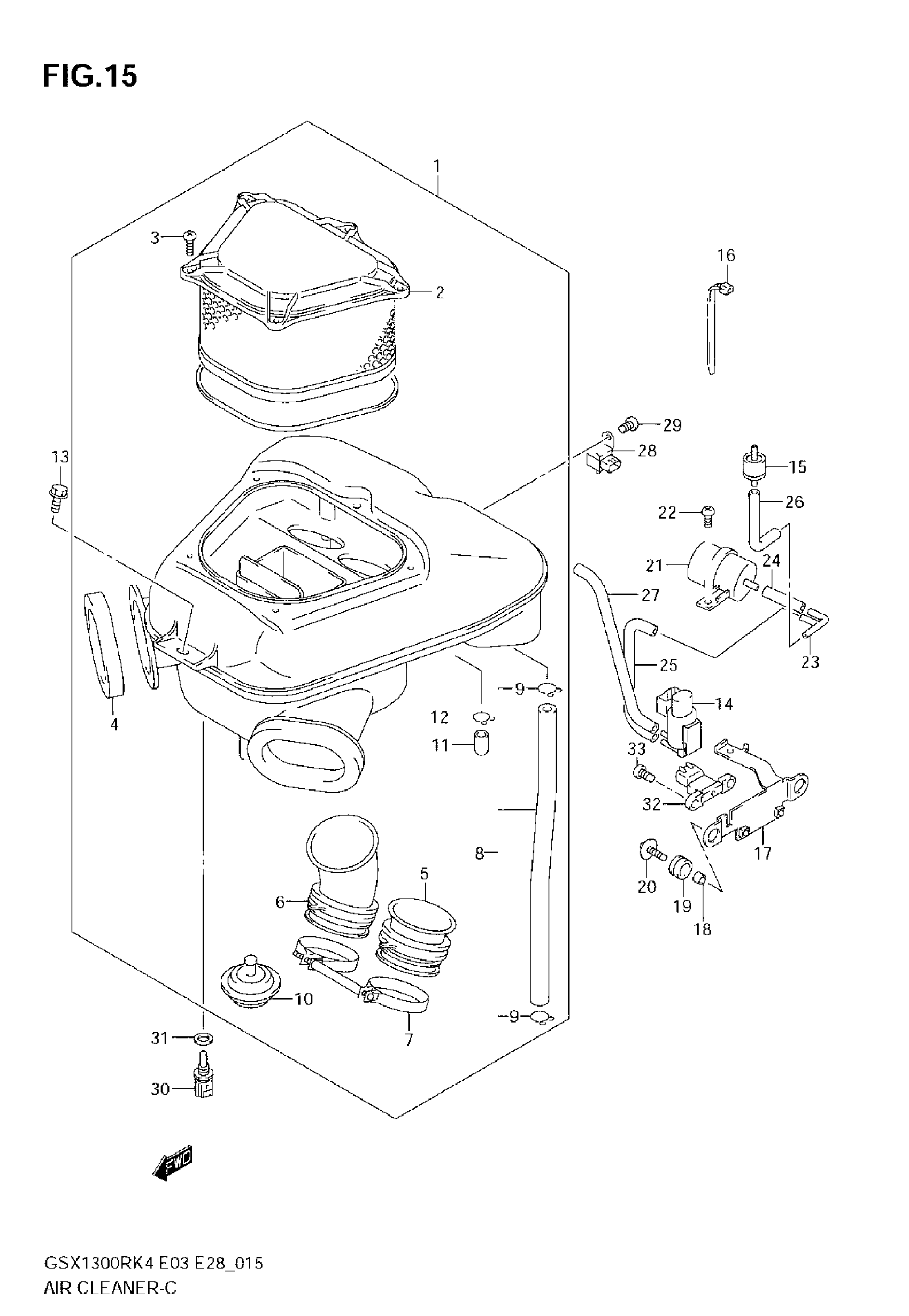

2007 Suzuki GSX1300R Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI | Includes Item(s) 2 - 12 This part replaces 13700-24F03.

13700-24F05

1
Out of stock

2

FILTER ASSY

13780-24F02

1
Out of stock

3

SCREW

13831-21F00

5
Out of stock

4

.CUSHION, DUCT This part replaces 13736-24F01.

13736-01H00

1
Out of stock

5

TUBE, OUTLET

13881-33E50

2
Out of stock

6

TUBE, OUTLET

13881-24F00

2
Out of stock

7

CLAMP This part replaces 13826-33E51.

13826-33E52

2
Out of stock

8

TUBE,BREATHER This part replaces 13850-24F10.

13850-24F11

1
Out of stock

9

CLIP

09401-14301

2
Out of stock

10

DIAPHRAGM, CONT VALVE

13895-24F00

1
Out of stock

11

.PLUG

13859-41B10

1
Out of stock

12

CLIP

09401-14301

1
Out of stock

13

BOLT (6X16)

09116-06130

1
Out of stock

14

VALVE ASSY, SOLENOID

18115-70G10

1
Out of stock

15

VALVE, CHECK

95569-78040

1
Out of stock

16

CLAMP, CHECK VALVE

09407-11401

1
Out of stock

17

BRACKET, SOLENOID VALVE

18119-33E00

1
Out of stock

18

SPACER

09180-06257

2
Out of stock

19

CUSHION

09320-09036

2
Out of stock

20

BOLT

09116-06115

2
Out of stock

21

CHAMBER, VACUUM

13715-02F00

1
Out of stock

22

.SCREW This part replaces 02142-05123.

02142-0512A

1
Out of stock

23

3 WAY

09367-04009

1
Out of stock

24

HOSE, VACUUM CHAMBER TO 3 WAY (4X8X600) | L:600!40

09355-40805-600

1
Out of stock

25

HOSE, 3 WAY TO SOLENOID (4X8X600) | L:600!150

09355-40805-600

1
Out of stock

26

HOSE, CHECK VALVE TO 3 WAY (4X8X600) | L:600!100

09355-40805-600

1
Out of stock

27

HOSE, SOLENOID TO CLEANER (4X8X600) | L:600!400

09355-40805-600

1
Out of stock

28

SENSOR, BOOST

15620-02F00

1
Out of stock

29

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock

30

SENSOR, AIR TEMPERATURE

13650-61B00

1
Out of stock

31

GASKET

09168-12017

1
Out of stock

32

SENSOR, AIR PRESSURE

18590-81A00

1
Out of stock

33

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock
