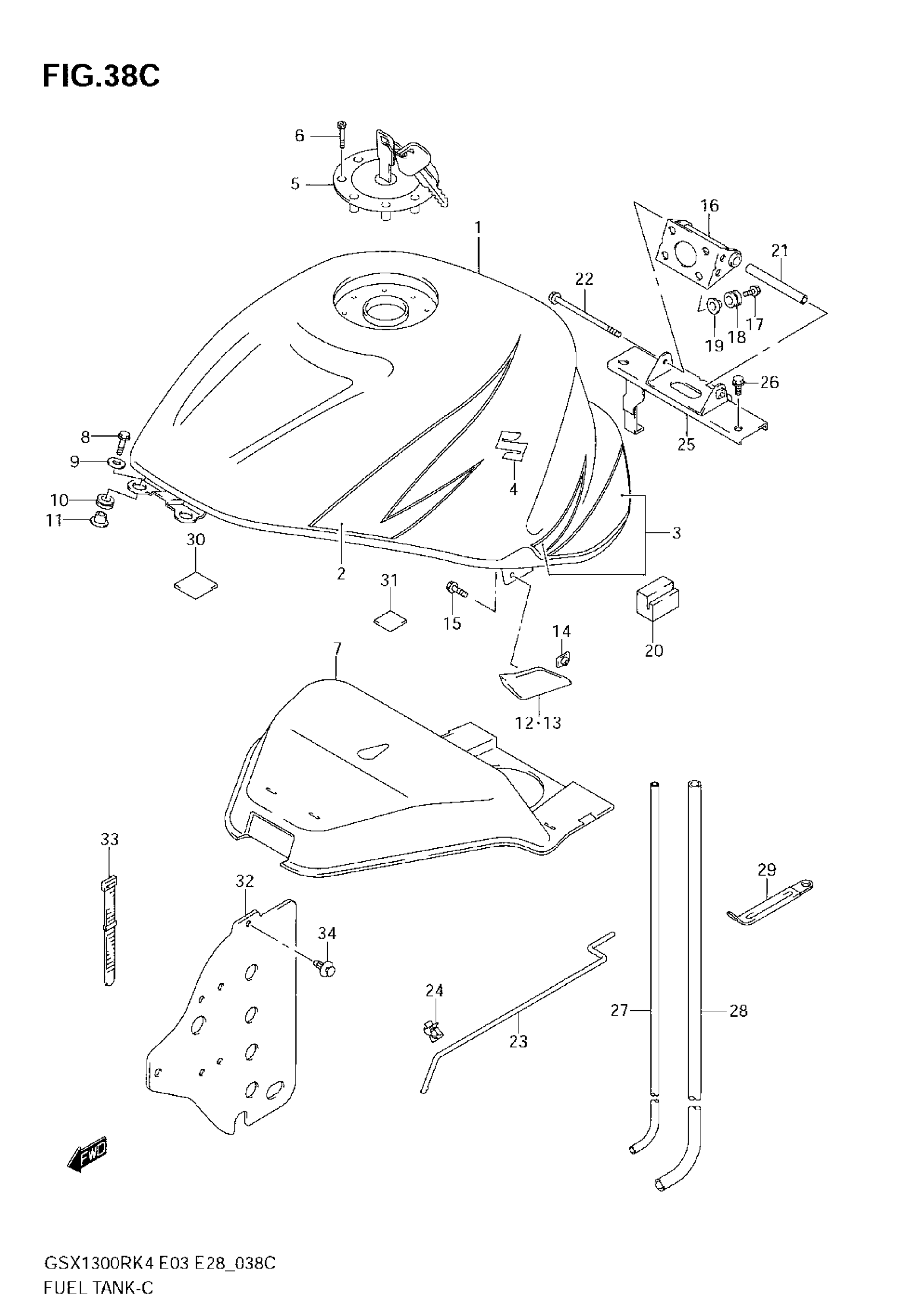

Suzuki GSX1300R (2007) FUEL TANK (GSX1300RZK6) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | E3,E28

44100-24FR0-YC3

Unavailable

1

TANK ASSY, FUEL (WHITE) | E33; Includes Item(s) 2 - 3

44100-24FS0-YC3

Unavailable

2

TAPE SET

68110-24F50-DEU

Unavailable

3

TAPE SET, LOWER

68110-24F60-DEU

Unavailable

4

EMBLEM

68111-18G20

$29.56

5

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$283.68

5

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$281.20

6

BOLT

09106-05017

$2.80

7

SHIELD, HEAT

44191-24F10

Unavailable

8

BOLT, FRONT

09139-06029

$4.84

9

WASHER

09160-06036

$2.48

10

CUSHION

09320-09009

$4.19

11

SPACER

09169-06062

$2.50

12

COVER, SIDE RH

44533-24F00

$20.88

13

COVER, SIDE LH

44543-24F00

$20.88

14

PLATE, SIDE

44540-24F10

$14.00

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.38

16

BRACKET, TANK

44560-24F01

Unavailable

17

BOLT

09116-06152

$2.14

18

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

19

SPACER

09169-06062

$2.50

20

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.38

21

SPACER

44561-33E10

Unavailable

22

BOLT This part replaces 01550-08953.

01550-0895A

$5.00

23

STAY

44574-33E01

$14.15

24

CLIP

09403-05310

$3.37

25

BRACKET, REAR

44550-24F00

Unavailable

26

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

27

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$11.53

28

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$9.52

29

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

30

CUSHION, FRONT

44534-24F00

$3.56

31

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.56

32

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

33

CLAMP

09407-18402

$2.21

34

CLIP (BLACK)

09409-06322-5PK

$2.84
