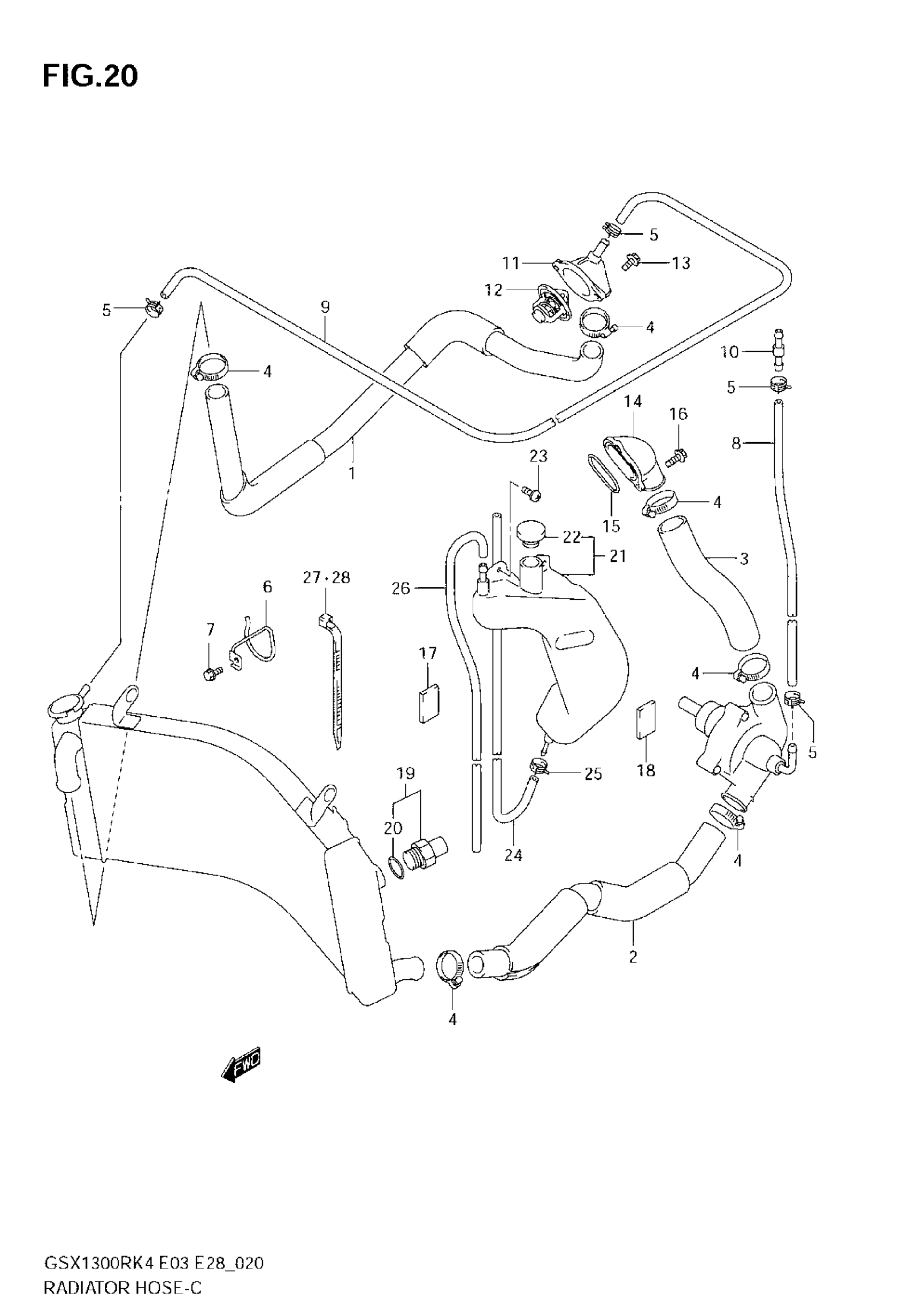

Suzuki GSX1300R (2007) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-24F01

$57.92

2

HOSE, RADIATOR OUTLET

17852-24F00

$62.22

3

HOSE, CYLINDER INLET

17853-24F00

$18.53

4

CLAMP

09402-38511

$10.69

5

CLIP This part replaces 09401-12409.

09401-12414

$2.98

6

CLAMP, RADIATOR INLET HOSE

17859-24F00

Unavailable

7

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

8

HOSE, WATER BYPASS NO.1

17854-24F00

$25.87

9

HOSE, WATER BYPASS NO.2

17855-24F00

$48.37

10

UNION, BYPASS

09362-09011

$7.57

11

COVER, THERMOSTAT

17661-24F00

$49.30

12

THERMOSTAT,WTR, | MODEL K4 This part replaces 17670-50F00.

17670-50F01

$30.87

12

THERMOSTAT,WTR (82<-C) | MODEL K5/K6/K7

17670-76G00

$33.68

13

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

14

CONNECTOR | MODEL K4/K5/K6 This part replaces 17861-33E10.

17861-33E20

$20.65

14

CONNECTOR, CYLINDER INLET | MODEL K7

17861-33E20

$20.65

15

O RING

17863-33E00

$3.69

16

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

17

CUSHION, RESERVOIR TANK RH

51827-01A00

$6.95

18

CUSHION, RESERVOIR TANK LH

53145-48B00

$3.72

19

SWITCH,RDTR FAN | Includes Item(s) 20 This part replaces 17680-33E00.

17680-33E01

$44.35

20

O RING

17689-50F00

$2.63

21

TANK ASSY, RESERVOIR | Includes Item(s) 22

17910-24F00

$65.10

22

CAP

17932-12C00

$4.09

23

SCREW (6X20)

09136-06022

$2.19

24

HOSE, RESERVOIR TANK INLET

17981-21810

$48.37

25

CLIP

09401-08411

$1.77

26

HOSE, OVER FLOW

17982-38810

$19.60

27

CLAMP, RESERVOIR TANK HOSE

09407-18402

$2.21

28

CLAMP, RADIATOR OUTLET HOSE

09407-18402

$2.21
