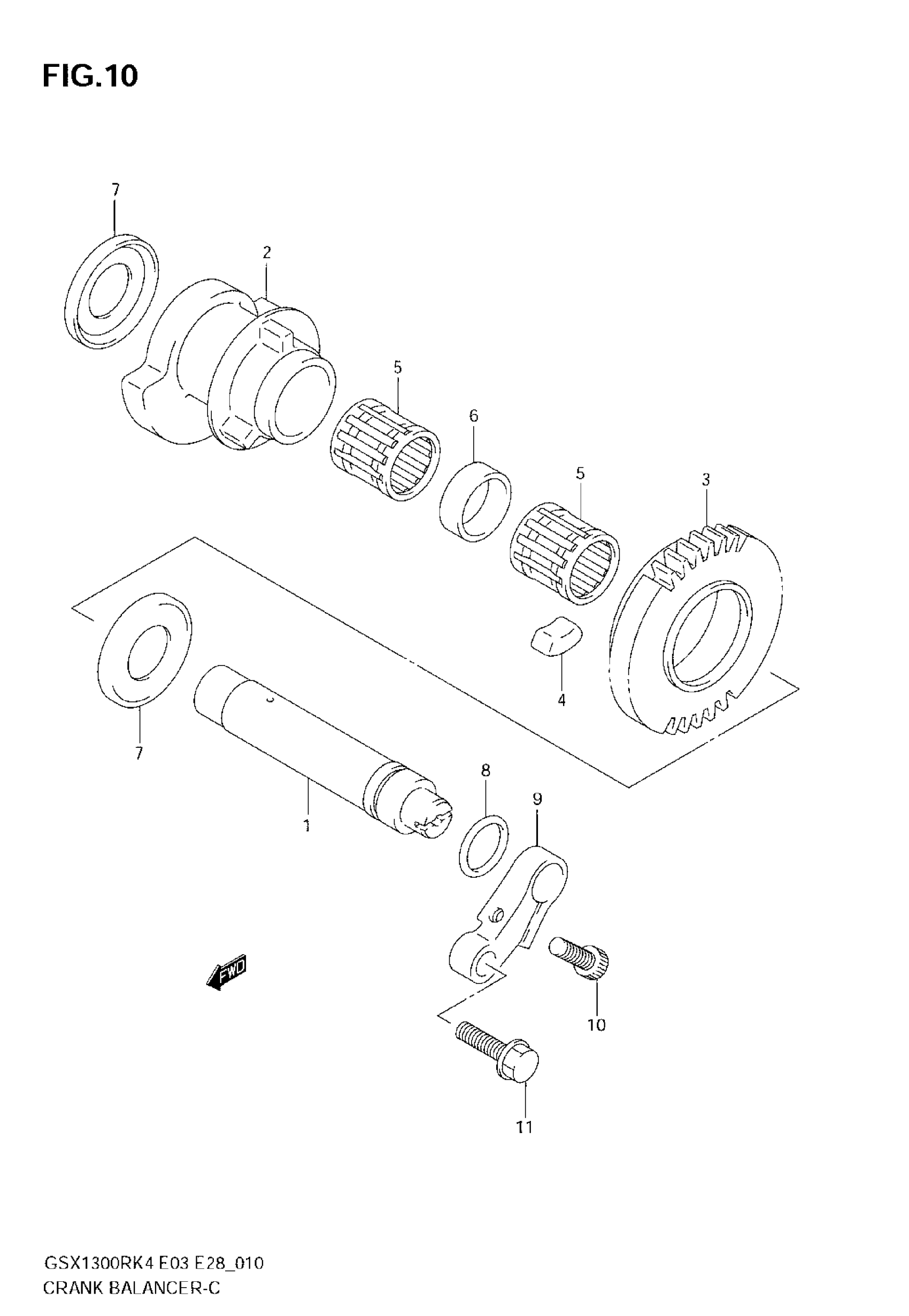

Suzuki GSX1300R (2007) CRANK BALANCER Diagram

#

Description

Price

1

SHAFT, CRANK BALANCER This part replaces 12650-24F00-0F0.

12650-24F01-0F0

Unavailable

2

BALANCER,CRANK

12654-24F00-0F0

Unavailable

3

GEAR, CRANK BALANCER

12666-24F00

Unavailable

4

DAMPER,BALANCER GEAR

12686-24F00

$11.53

5

BEARING

09263-19015

Unavailable

6

SPACER

09180-19014

Unavailable

7

WASHER

09169-21001

$10.35

8

O RING, LH (D:1.9,ID:16.8)

09280-17007

$6.45

9

ARM,BALANCER SHAFT This part replaces 12681-26D00.

12681-26D02

$82.87

10

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80

11

BOLT (6X20) This part replaces 09103-06130.

09103-06286

$2.19
