2007 Suzuki GSX1300R Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

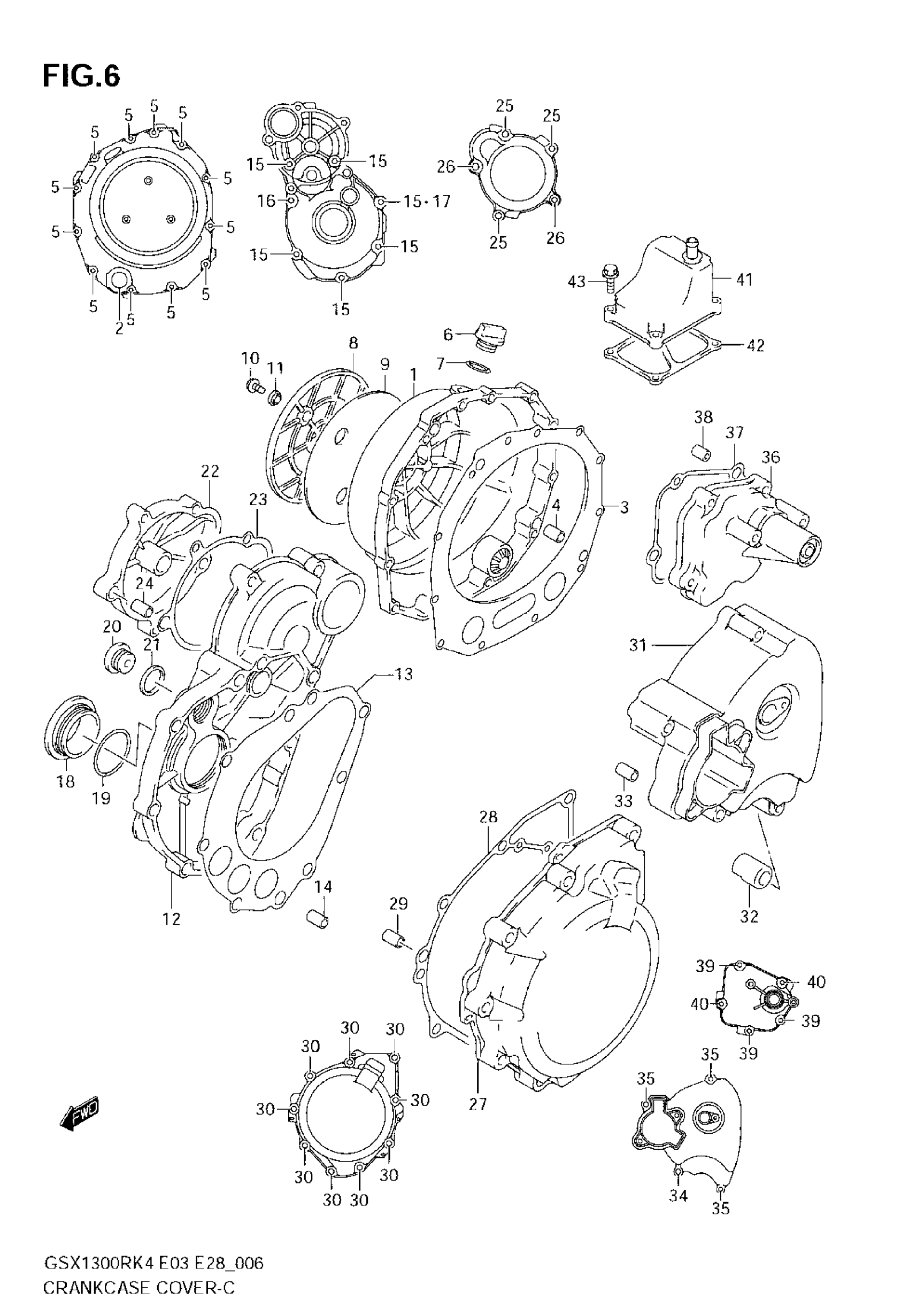

2007 Suzuki GSX1300R Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$331.67

In stock

2

LENS, OIL LEVEL

11971-33210

1

$18.15

In stock

3

GASKET, CLUTCH COVER

11482-24F00

1

$18.69

In stock

4

PIN

04211-09189

2
Out of stock

5

BOLT (6X30)

09103-06213

12
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

8

COVER, CLUTCH OUTER

11371-24F00

1

$87.55

In stock

9

1

$15.07

In stock

10

SCREW

09139-06107

3

$3.39

In stock

11

3

$4.62

In stock

12

COVER,STARTER CLUTCH

11380-24F20

1

$226.11

In stock

13

1

$9.87

In stock

14

PIN

04211-09149

2
Out of stock

15

BOLT (6X25)

09103-06212

6

$2.64

In stock

16

BOLT (6X35)

09103-06214

1

$2.70

In stock

17

GASKET

09168-06023

1
Out of stock

18

PLUG, SHAFT HOLE

09259-36021

1

$13.37

In stock

19

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

20

PLUG, TDC (16X8)

09248-16012

1
Out of stock

21

GASKET

09168-16002

1
Out of stock

22

CAP,STARTER IDLE GEAR

11382-24F20

1

$90.16

In stock

23

1

$7.20

In stock

24

PIN

04211-09149

2
Out of stock

25

BOLT (6X25)

09103-06212

3

$2.64

In stock

26

BOLT (6X35)

09103-06214

2

$2.70

In stock

27

COVER, MAGNETO

11351-24F00

1

$100.63

In stock

28

GASKET, MAGNETO COVER

11483-24F00

1

$11.22

In stock

29

PIN

04211-09149

2
Out of stock

30

BOLT (6X30)

09103-06213

9
Out of stock

31

1

$141.51

In stock

32

1

$4.97

In stock

33

PIN

04211-09149

2
Out of stock

34

BOLT (6X40)

09103-06215

1

$2.92

In stock

35

BOLT (6X55)

09103-06216

3

$2.92

In stock

36

COVER, GEAR SHIFT

11383-24F00

1

$84.58

In stock

37

1

$6.49

In stock

38

PIN

04211-09149

2
Out of stock

39

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

3
Out of stock

40

2

$2.92

In stock

41

COVER, BREATHER

11330-24F01

1
Out of stock

42

1

$4.97

In stock

43

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

4
Out of stock
