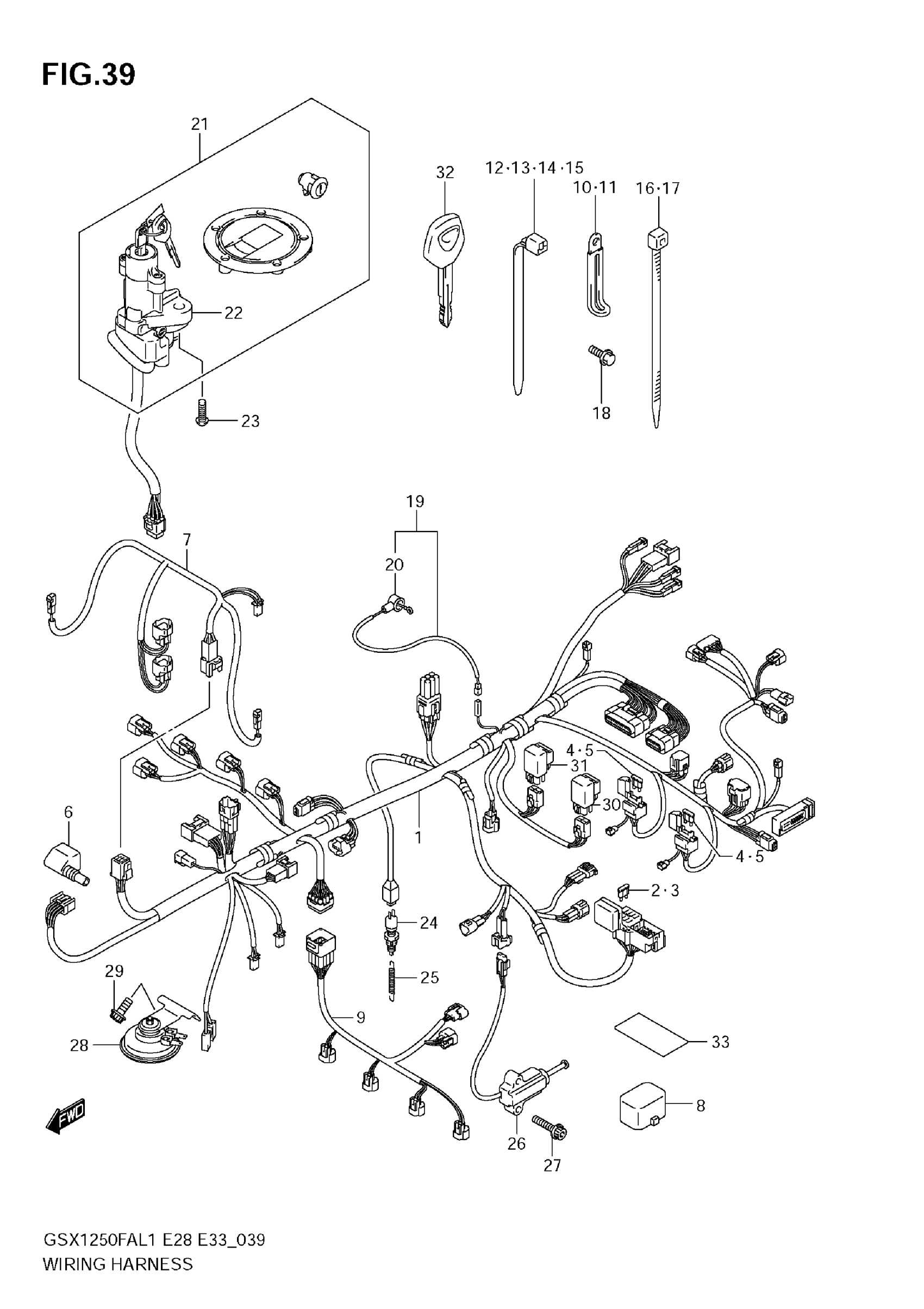

Suzuki GSX1250FAL1 (2011) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-18HL0

Unavailable

2

FUSE (10A)

09481-10501

$2.14

3

FUSE (15A)

09481-15501

$2.14

4

FUSE (15A)

09481-15101

$2.77

5

FUSE (20A)

09481-20101

$2.21

6

COVER

36618-35F00

$11.37

7

HARNESS, WIRING NO.2

36620-17HA0

$202.82

8

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

9

WIRE, INJECTOR LEAD

36859-17HA0

Unavailable

10

CLAMP (L:45)

09404-06429

$1.88

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

12

CLAMP (L:95)

09407-11401

$2.87

13

CLAMP (L:125)

09407-14403

$2.31

14

CLAMP (L:165)

09407-18402

$2.29

15

CLAMP (L:235)

09407-25401

$4.33

16

CLAMP (L:145)

09407-14407

$2.84

17

CLAMP (L:100)

09407-10404

$2.71

18

BOLT

01550-0612A

$2.01

19

WIRE, OIL PRESSURE SWITCH

36851-18H00

Unavailable

20

CAP, OIL PRESSURE SWITCH

36618-43410

$3.28

21

LOCK SET

37000-18870

Unavailable

22

LOCK ASSY, STEERING

37100-18H20

Unavailable

23

BOLT (8X20)

09139-08016

$3.13

24

SWITCH ASSY, STOP LAMP

37740-24A00

$17.41

25

SPRING

09443-06054

$4.18

26

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$68.13

27

SCREW

07120-0620B

$2.82

28

HORN ASSY

38500-17H10

Unavailable

29

BOLT

07120-0512A

$2.38

30

RELAY ASSY, FUEL PUMP

38740-24X50

$43.23

31

RELAY ASSY, FAN MOTOR

38740-24X50

$43.23

32

KEY, BLANK | OPT

37146-33E00

$20.29

33

PROTECTOR (30X75X0.2)

63131-10F00

$15.83
