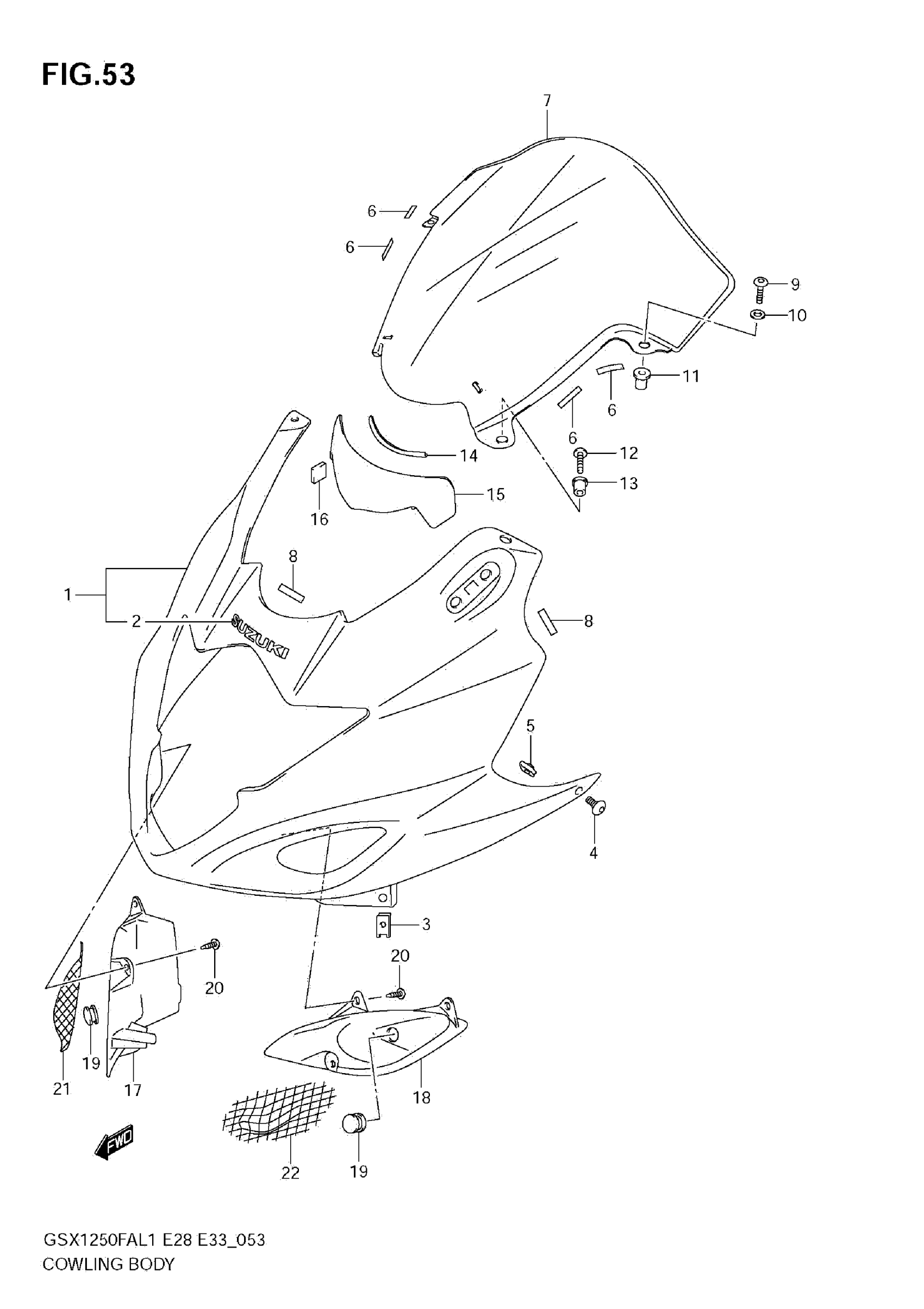

Suzuki GSX1250FAL1 (2011) COWLING BODY Diagram

#

Description
Price

1

BODY,COWLING This part replaces 94410-17H00-4CX.

94410-17H01-4CX

$602.60

2

EMBLEM,"SUZUKI" This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.14

3

NUT COWL

94484-24F00

$3.79

4

SCREW (5X16)

09139-05077

$3.06

5

NUT

09148-05052

$3.13

6

TAPE, WIND SCREEN

94443-06G00

$3.11

7

WIND SCREEN

94611-17H00

$281.20

8

TAPE, BODY COWL

94443-06G00

$3.11

9

SCREW (5X16)

09139-05042

$2.70

10

WASHER

08322-0105B

$2.31

11

NUT

09159-05019

$6.63

12

SCREW

02142-1516B

$3.08

13

NUT

09159-05048

$6.84

14

CUSHION, SCREEN

94612-01H00

$4.84

15

COVER, SCREEN

94612-17H01

$42.68

16

CUSHION This part replaces 36920-23H10.

44534-24F00

$5.02

17

COVER, INTAKE RH

94421-17H00

$31.55

18

COVER, INTAKE LH

94431-17H00

$30.55

19

CUSHION,NET COV This part replaces 43585-18G00.

43585-18G01

$4.15

20

SCREW

03241-0512B

$1.73

21

NET, INTAKE RH

94412-17H00

Unavailable

22

NET, INTAKE LH

94413-17H00

$57.00
