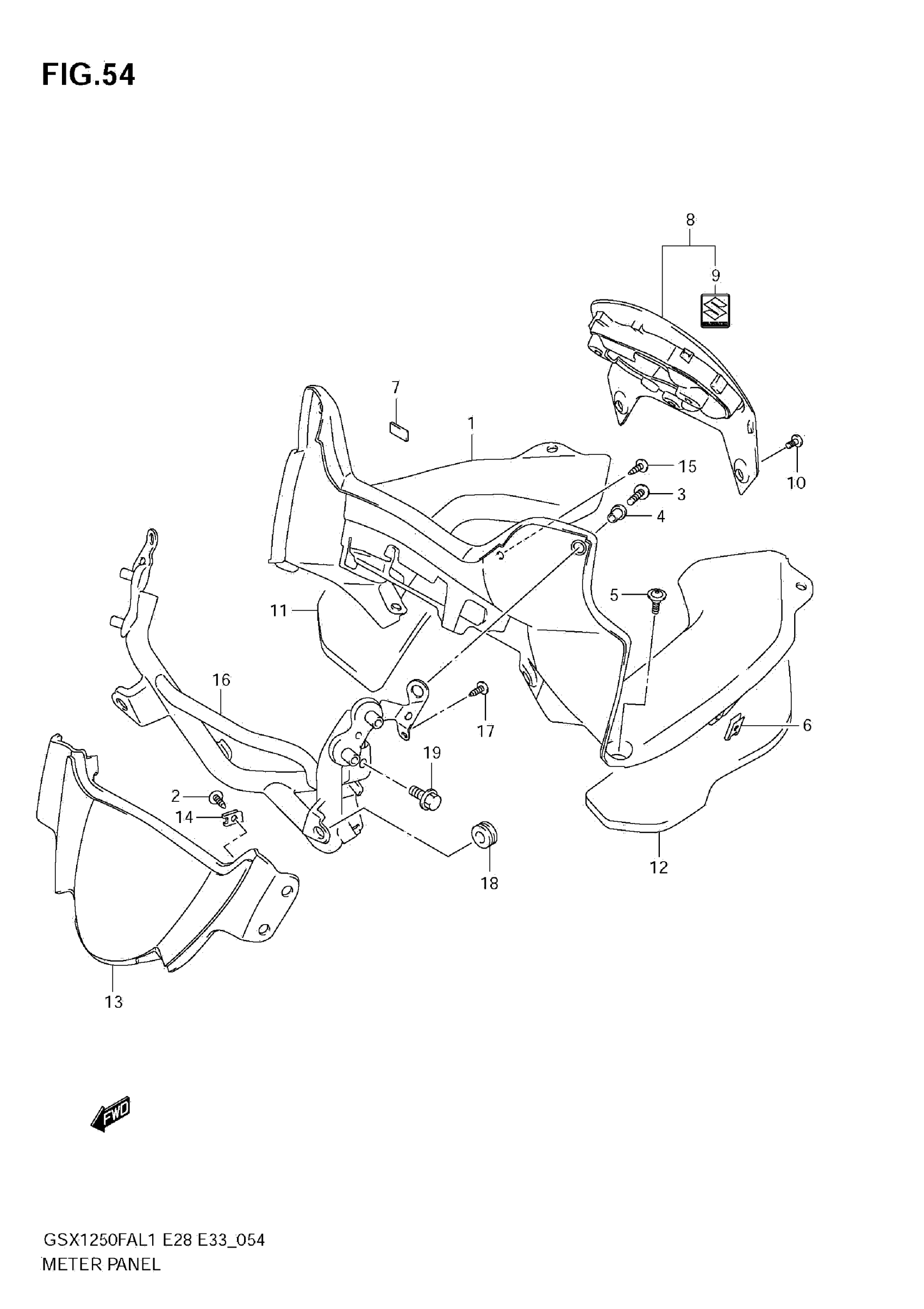

Suzuki GSX1250FAL1 (2011) METER PANEL Diagram

#

Description
Price

1

PANEL,METER This part replaces 94671-17H00.

94671-17H01

$152.42

2

SCREW

03541-1516B

$3.22

3

SCREW

02142-1520B

$2.34

4

NUT

09159-05019

$6.63

5

BOLT (5X13)

09139-05074

$2.66

6

NUT

09148-05052

$3.13

7

CUSHION, PANEL

48128-14FA0

$7.30

8

LID COMP,METER This part replaces 94640-17H00.

94640-17H10

$134.68

9

EMBLEM

68281-35F00

$16.18

10

SCREW

09139-06051

$2.70

11

CUSHION, PANEL RH

94674-17H00

Unavailable

12

CUSHION, PANEL LH

94684-17H00

Unavailable

13

PANEL, METER FRONT

94672-17H00

Unavailable

14

NUT

09148-05038

$2.01

15

SCREW

03541-1516B

$3.22

16

BRACE, COWLING

94510-17H00

$428.95

17

SCREW

03241-0516B

$1.68

18

CUSHION

09320-08028

$2.82

19

BOLT

01550-0820B

$2.80
