2011 Suzuki GSX1250FAL1 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

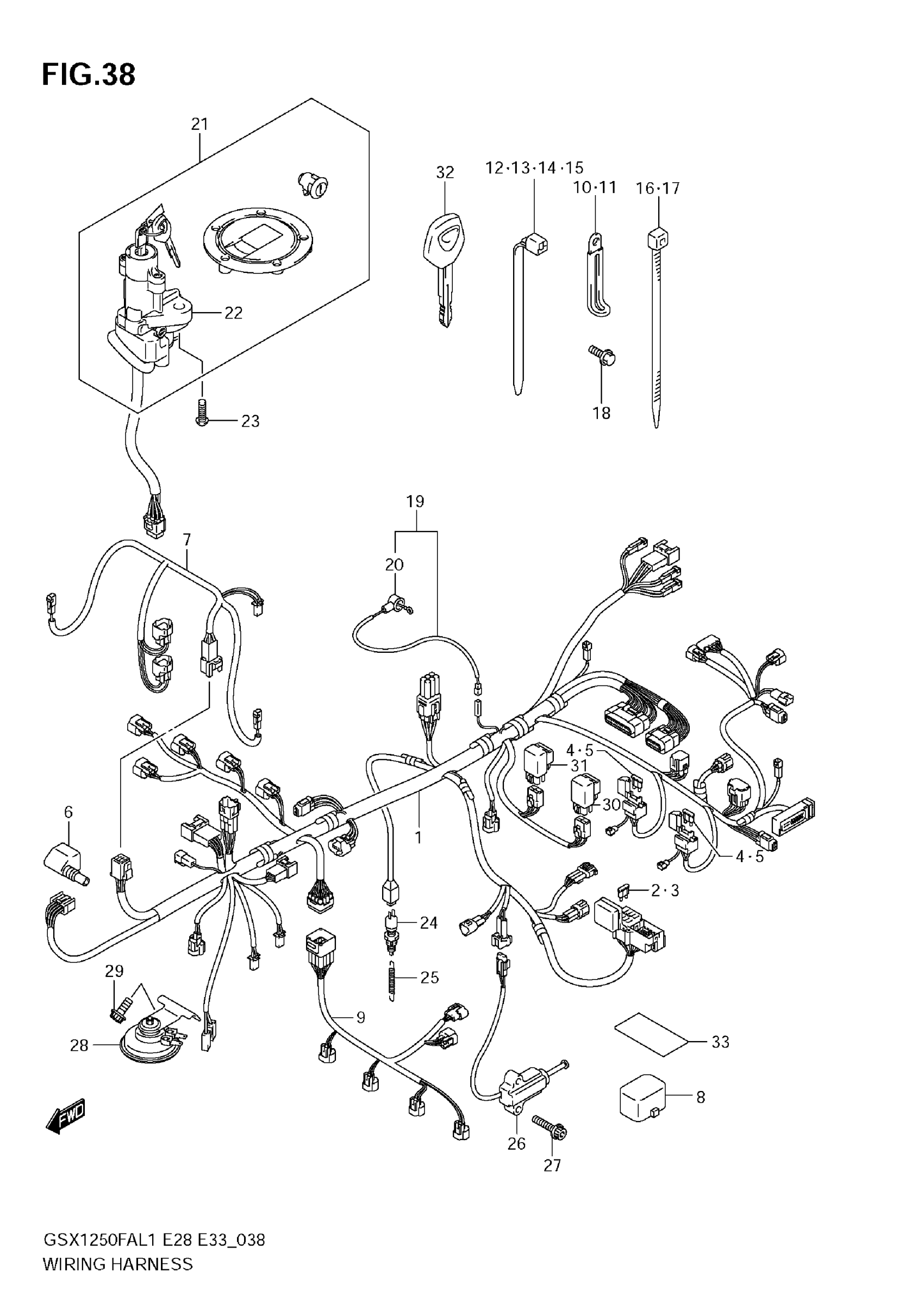

2011 Suzuki GSX1250FAL1 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-18HK0

—
Out of stock

2

FUSE (10A)

09481-10501

4
Out of stock

3

FUSE (15A)

09481-15501

2
Out of stock

4

FUSE (15A)

09481-15101

2

$2.77

In stock

5

FUSE (20A)

09481-20101

2

$2.31

In stock

6

COVER

36618-35F00

1
Out of stock

7

HARNESS, WIRING NO.2

36620-17HA0

1
Out of stock

8

CAP,TS This part replaces 36654-06J00.

36654-06J01

1
Out of stock

9

WIRE, INJECTOR LEAD

36859-17HA0

1
Out of stock

10

CLAMP (L:45)

09404-06429

4
Out of stock

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

12

CLAMP (L:95)

09407-11401

3
Out of stock

13

CLAMP (L:125)

09407-14403

1
Out of stock

14

CLAMP (L:165)

09407-18402

1
Out of stock

15

CLAMP (L:235)

09407-25401

1
Out of stock

16

CLAMP (L:145)

09407-14407

5
Out of stock

17

CLAMP (L:100)

09407-10404

1
Out of stock

18

BOLT

01550-0612A

1
Out of stock

19

WIRE, OIL PRESSURE SWITCH

36851-18H00

1
Out of stock

20

CAP, OIL PRESSURE SWITCH

36618-43410

1
Out of stock

21

LOCK SET

37000-18860

—
Out of stock

22

LOCK ASSY, STEERING

37100-18H20

1
Out of stock

23

BOLT (8X20)

09139-08016

2
Out of stock

24

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

25

SPRING

09443-06054

1
Out of stock

26

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

1
Out of stock

27

SCREW

07120-0620B

2
Out of stock

28

HORN ASSY

38500-17H10

1
Out of stock

29

BOLT

07120-0512A

1
Out of stock

30

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

31

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

32

KEY, BLANK | OPT

37146-33E00

1
Out of stock

33

PROTECTOR (30X75X0.2)

63131-10F00

1
Out of stock
