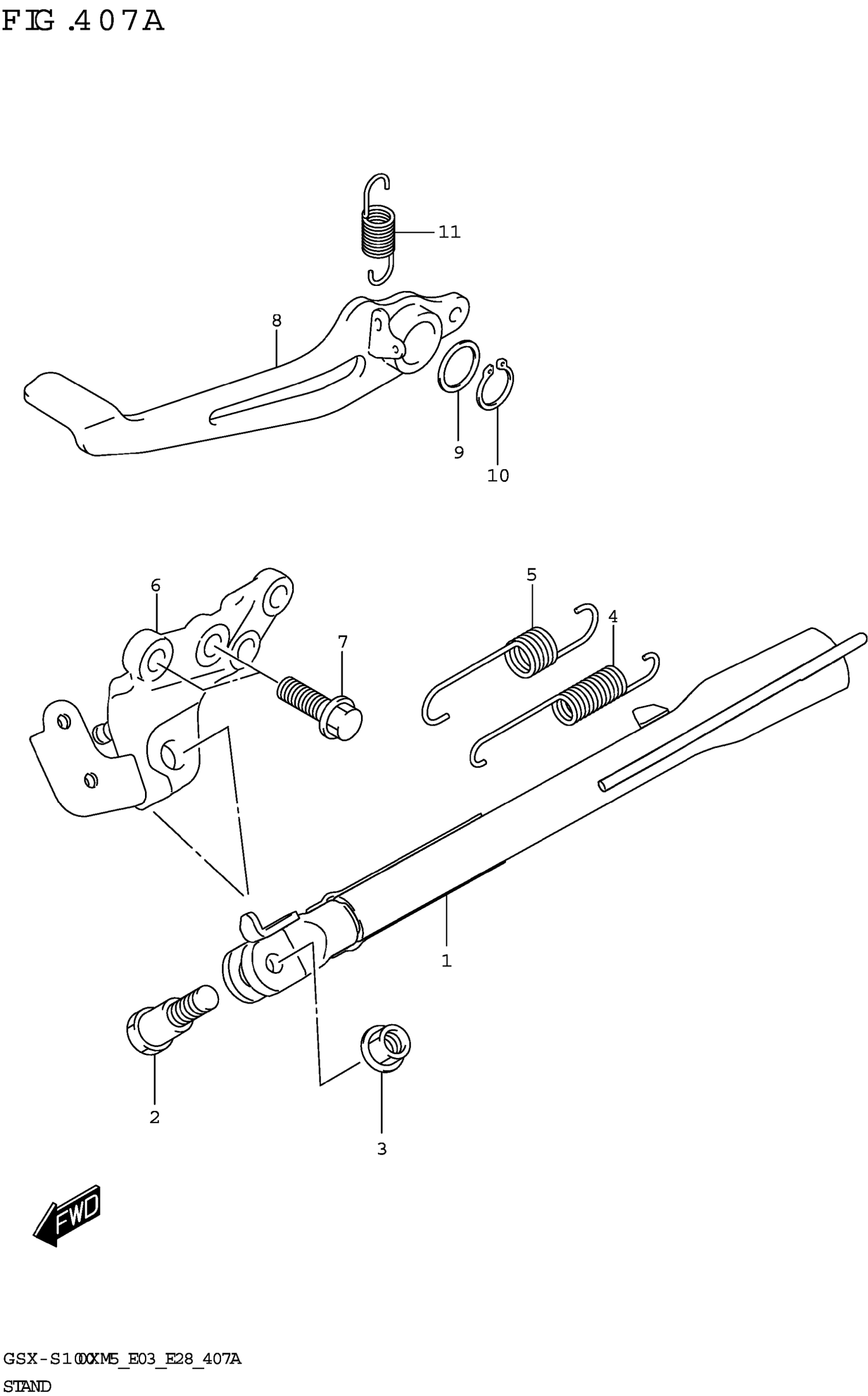

Suzuki GSX-S1000XRREM5 (2025) STAND Diagram

#

Description
Price

1

STAND,PROP

42310-48K00

$177.77

2

BOLT (10X21)

09111-10059

$6.27

3

NUT

09159-10111

Unavailable

4

SPRING

09443-14069

$5.55

5

SPRING

09443-19012

$5.31

6

BRACKET,PROP STAND

42330-48K00

$138.08

7

BOLT (10X30)

09103-10366

$2.95

8

PEDAL, BRAKE

43110-04K10

$74.13

9

WASHER (18X24X1.0)

09160-18022

$2.80

10

CIRCLIP

08331-3118A

$2.30

11

SPRING

09443-13032

$5.88
