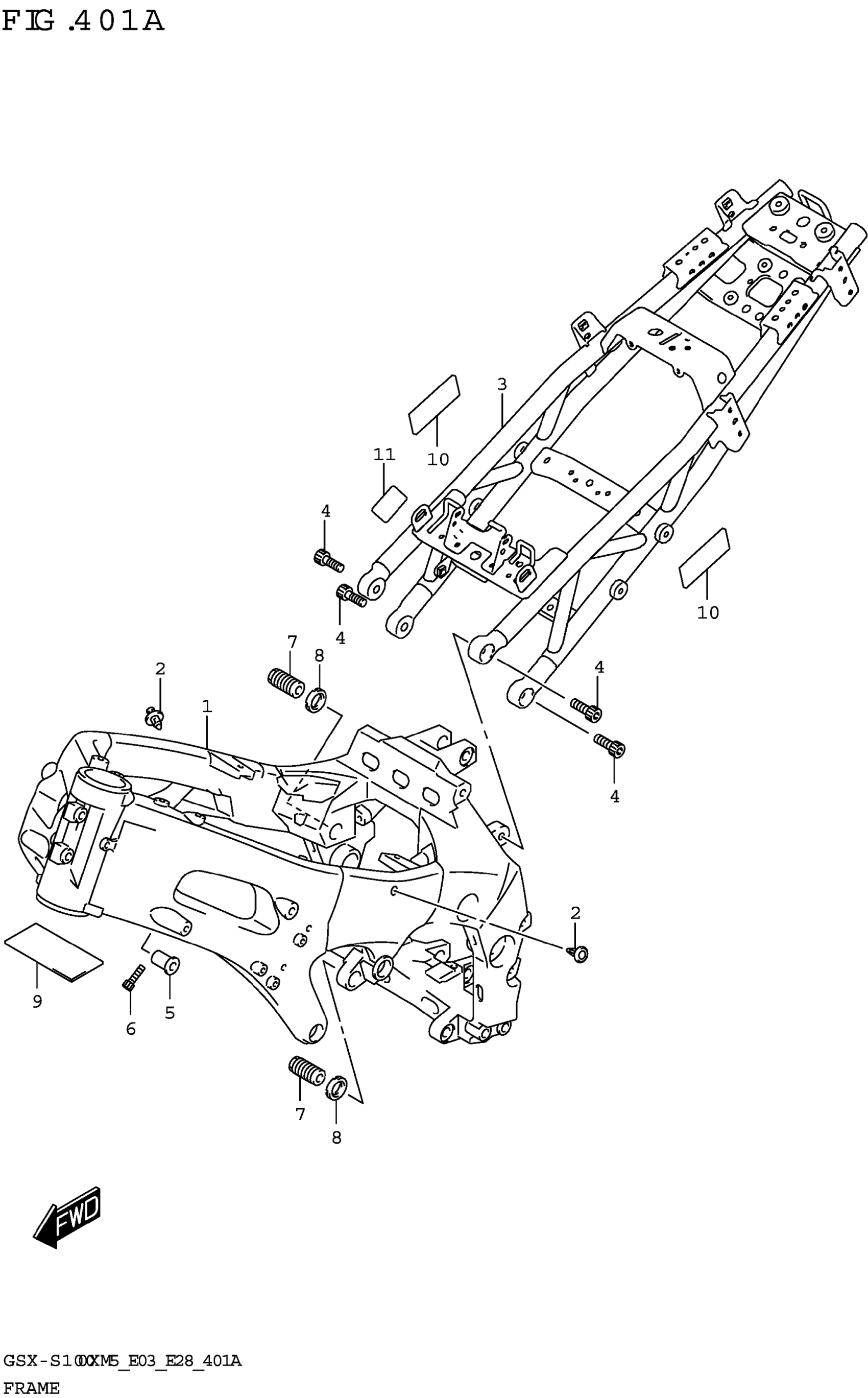

Suzuki GSX-S1000XRREM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-04K20-YAP

$2,683.20

2

PLUG, TANK RAIL

43585-01H01

$4.37

3

RAIL,SEAT (SILVER)

41200-48K10-QKA

$621.85

4

BOLT

07120-1035A

Unavailable

5

SPACER,ENGINE MOUNTING

41911-40F01

$21.23

6

BOLT (8X32)

09106-08185

$2.75

7

BOLT,CRANK CASE ADJUST LWR

41921-16G11

$13.47

8

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

9

CUSHION, FRAME HEAD

41139-21H10

Unavailable

10

PROTECTOR (30X70)

94474-22D00

Unavailable

11

TAPE,FUEL TANK (30X40X0.2)

45517-16G20

$12.60
