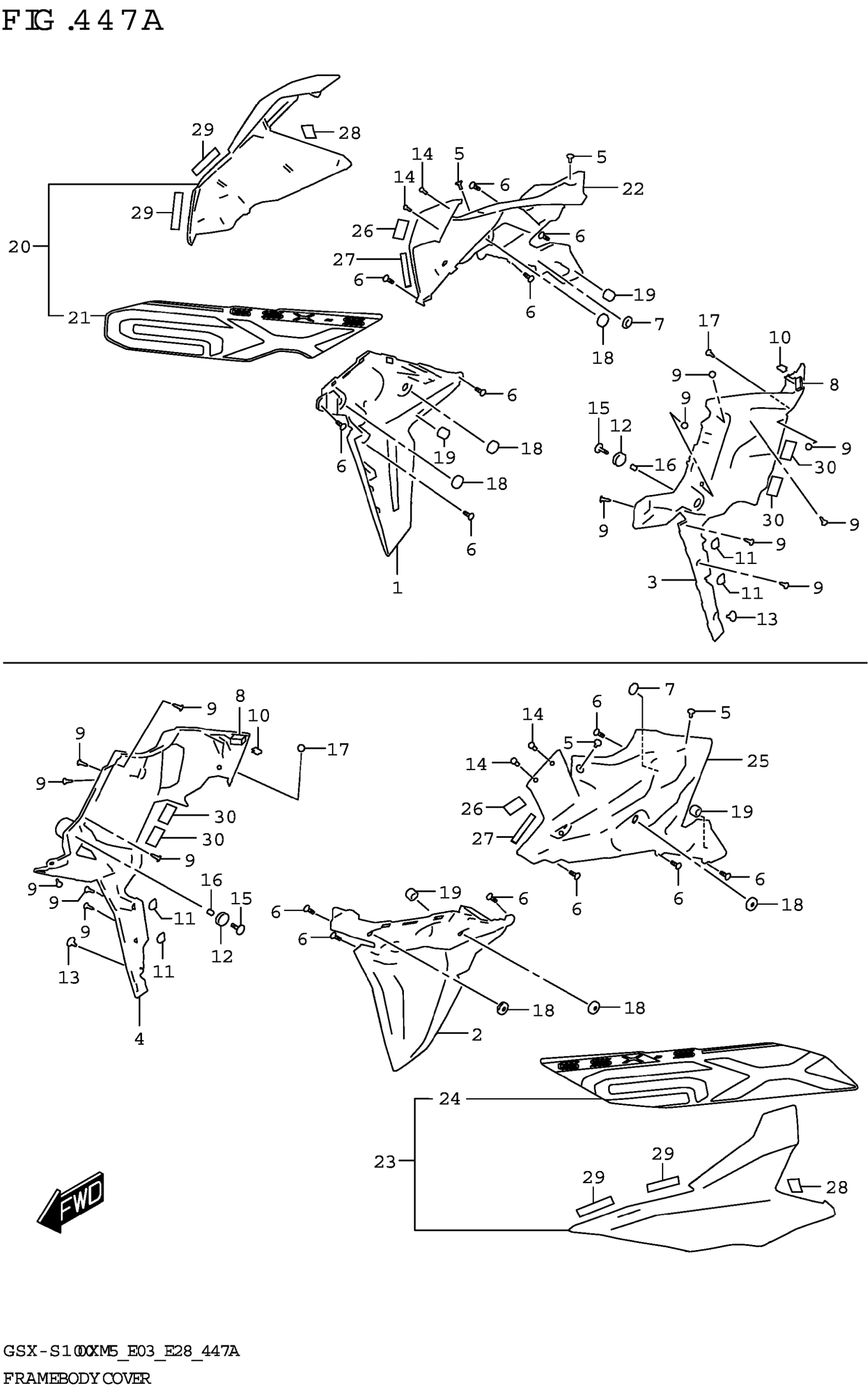

Suzuki GSX-S1000XRREM5 (2025) FRAME BODY COVER Diagram

#

Description
Price

1

COWLING,SIDE LOWER,R

94472-48K20

$88.15

2

COWLING,SIDE LOWER,L

94482-48K20

$88.15

3

COWLING,SIDE INNER,R

94461-48K20

$91.95

4

COWLING,SIDE INNER,L

94462-48K20

$91.95

5

SCREW,KNUCKLE COVER

09139-05108

$1.05

6

SCREW

03541-0516A

$1.37

7

CUSHION

09320-06026

$4.45

8

CUSHION (20X50X10)

36652-04K00

$2.95

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

10

NUT (M5)

09148-05052

$3.04

11

CUSHION

09329-18001

$1.89

12

.CUSHION,SEAT MOUNT

45148-04K00

$7.30

13

CLIP

94479-35F00

$5.14

14

SCREW

09139-05103

$2.95

15

SCREW

09136-06159

$2.00

16

SPACER (6.5X9X10.5)

09180-06264

$2.85

17

SCREW

09136-06002

$2.28

18

CUSHION (8X26X7)

09320-08028

$2.80

19

CUSHION

09329-12006

$2.07

20-1

COWLING,SIDE OUTER,R (SILVER) | BODY COLOR:YSF

94470-48K10-QKA

$200.85

20-2

COWLING,SIDE OUTER,R (GRAY) | BODY COLOR:YVB

94470-48K10-YLF

$209.95

20-3

COWLING,SIDE OU | BODY COLOR:YYG This part replaces 94470-48K10-QEB.

94470-48K11-QEB

$223.03

21-1

.EMBLEM,SIDE COWLING OUTER,R | BLACK,ORANGE,SILVER) BODY COLOR:YSF

68131-48K20-CJJ

$23.48

21-2

.EMBLEM,SIDE COWLING OUTER,R | SILVER,RED,GRAY) BODY COLOR:YVB

68131-48K20-CJK

$23.48

21-3

.EMBLEM,SIDE COWLING OUTER,R | BODY COLOR:YYG

68131-48K20-CJM

$24.97

22

COWLING,SIDE UPPER,R (BLACK)

94471-48K20-YKV

$239.37

23-1

COWLING,SIDE OU | BODY COLOR:YSF This part replaces 94480-48K10-QKA.

94480-48K11-QKA

$234.60

23-2

COWLING,SIDE OUTER,L (GRAY) | BODY COLOR:YVB

94480-48K10-YLF

$209.95

23-3

COWLING,SIDE OU | BODY COLOR:YYG This part replaces 94480-48K10-QEB.

94480-48K11-QEB

$223.03

24-1

.EMBLEM,SIDE COWLING OUTER,L | BLACK,ORANGE,SILVER) BODY COLOR:YSF

68141-48K20-CJJ

$23.48

24-2

.EMBLEM,SIDE COWLING OUTER,L | SILVER,RED,GRAY) BODY COLOR:YVB

68141-48K20-CJK

$23.48

24-3

.EMBLEM,SIDE COWLING OUTER,L | BODY COLOR:YYG

68141-48K20-CJM

$24.97

25

COWLING,SIDE UPPER,L (BLACK)

94481-48K20-YKV

$239.37

26

CUSHION

45516-01H00

$6.00

27

CUSHION,SIDE COWL UPR NO.2

53112-06L00

$3.77

28

CUSHION (10X10X1)

63115-37H00

$3.42

29

CUSHION

94675-07L10

$2.22

30

CUSHION (10X30X2)

44894-24A00

$1.78
